Taie FU series User Manual

49

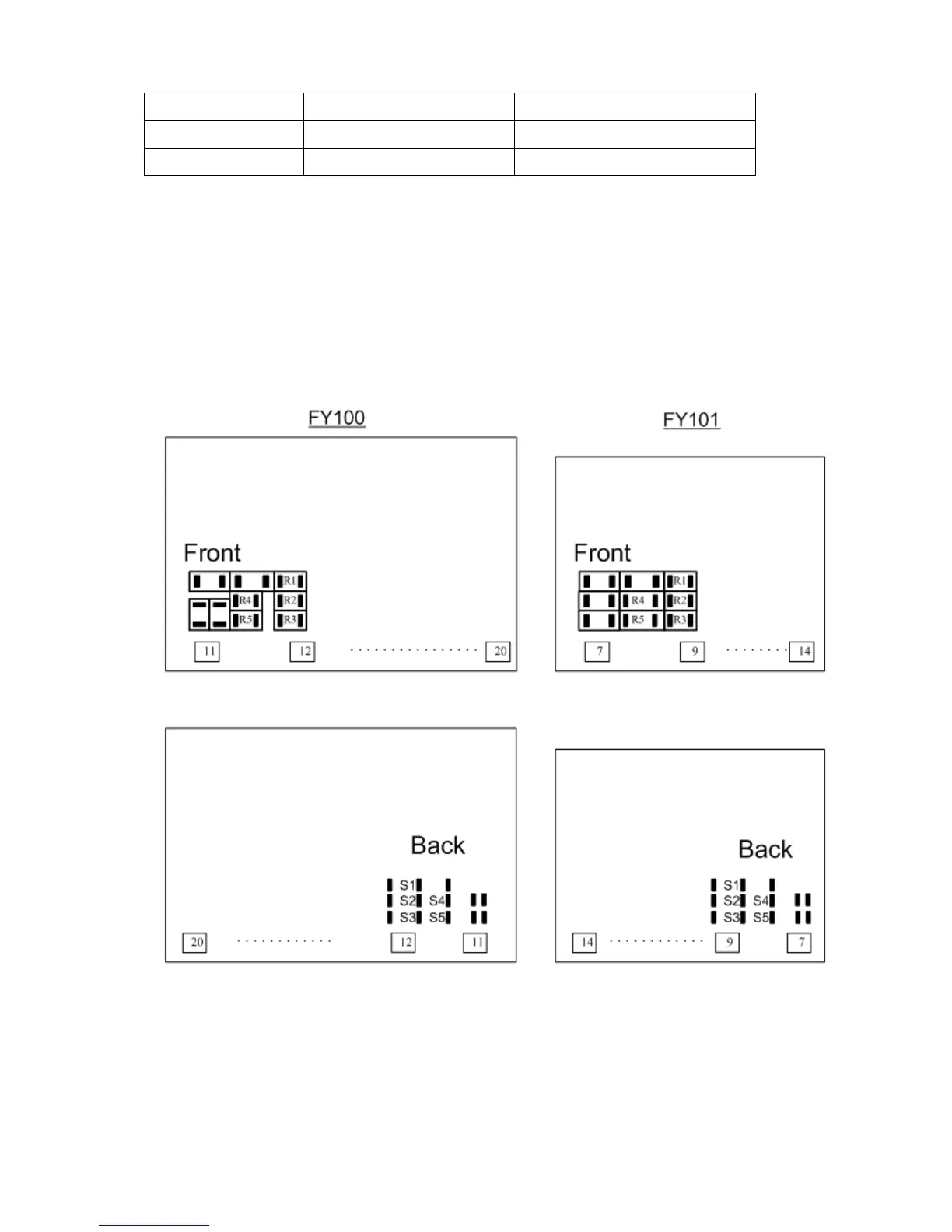

15.2 FY100/101 Hardware：
FY100 FY101
INPUT ( + )
PIN 14 PIN 10
INPUT ( - )
PIN 11 PIN 8
0~20mA (INP1=AN4)：(R3 use 100Ω，R5 use 2.4Ω， S3＆S5 SHORT)
4~20mA (INP1=AN5)：(R3 use 100Ω，R5 use 2.4Ω， S3＆S5 SHORT)
0 ~ 1V (INP1=AN4)：(R1 use 2KΩ，R4 use 100Ω，S1＆S4 SHORT)
0 ~ 5V (INP1=AN4)：(R2 use 10KΩ，R4 use 100Ω，S2＆S4 SHORT)
1 ~ 5V (INP1=AN5)：(R2 use 10KΩ，R4 use 100Ω，S2＆S4 SHORT)
0 ~ 10V (INP1=AN4)：(R3 use 22KΩ，R4 use 100Ω，S3＆S4 SHORT)
2 ~ 10V (INP1=AN5)：(R3 use 22KΩ，R4 use 100Ω，S3＆S4 SHORT)
