12.7 CT specifications
12.7.1 SC-80T Specifications
Rated Primary Current (Amp.)：0.1A~80.0A
Turns Ratio： 800：1
D.C.Resistance Max.at 20 ℃(Ω)：45Ω
Accuracy ( Linearity )：3%
Dielectric Withstanding Voltage(Hi-pot)：2500Vrms / 1 minute
Approx.Weight：12g
5.9
15.0
30.0
40.0
6.0
Epoxy
b
Vout
K
L

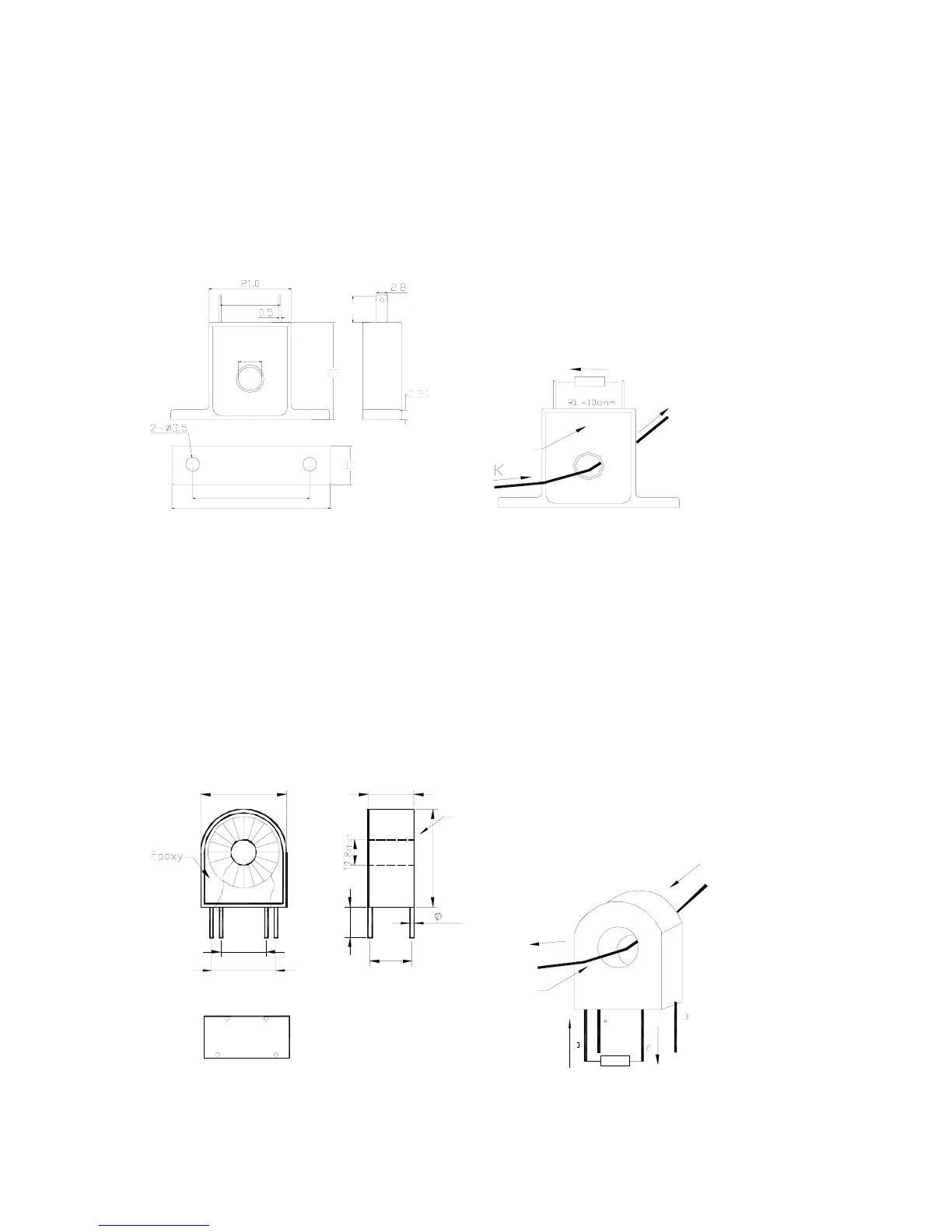

SC-80T Mechanical Dimensions (mm) Test Circuit
12.7.2 SC-100T Specifications
Rated Primary Current (Amp.)：0.1A~100.0A
Turns Ratio： 1000：1
D.C.Resistance Max.at 20 ℃(Ω)：150Ω
Accuracy ( Linearity )：3%
Dielectric Withstanding Voltage(Hi-pot)：4000Vrms / 1 minute
Approx.Weight：55g
25 .2 ± 0.3
38 MA X
32 .8 ± 0.3
Front view
Bottom view
1
4
3
15MAX
39.5MAX
1.0
13 ± 0.3
6.0
+1
0
Side vie w
2
Ep oxy
Epoxy
1 00ohm
SC-100T Mechanical Dimensions (mm) Test Circuit
