16. Modify Output type: Relay, SSR, 4~20mA
It just needs to change a module at the same position，and modify parameter CYT1 in
LEVEL 2 .
ÎRelay: CYT1=10, Voltage pulse: CYT1=1, 4~20mA:CYT1=0

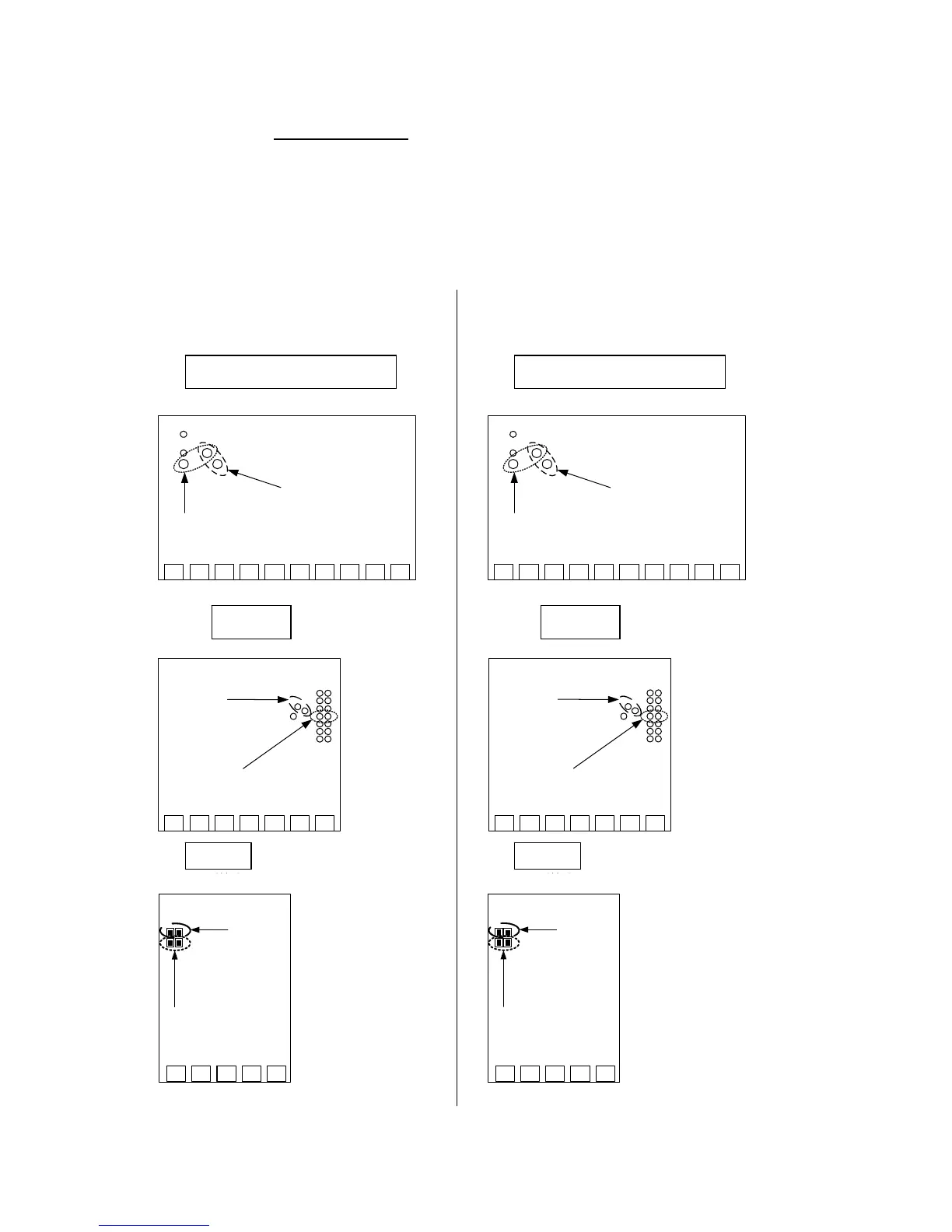

17. Modify output mode: OUT1/ALARM, OUT1/OUT2
12 13 14 15 16 17 18 19 20
( CPU Board )
96×96，48×96，96×48
11
PAD of AL3：SHORT
PAD of OUT2：OPEN
12 13 14 15 16 17 18 19 20
( CPU Board )
96×96，48×96，96×48
11
PAD of AL3：OPEN
PAD of OUT2：
SHORT
8 9 10 11 12 13 14
( CPU Board )
6 7 8 9 10
( CPU Board )
48×48
72×72
PAD of OUT2：
OPEN
PAD AL1：
SHORT
8 9 10 11 12 13 14
( CPU Board )
72×72
PAD of OUT2：
SHORT
PAD of AL1：
OPEN
PAD of OUT2：
OPEN
PAD of AL1：
SHORT
6 7 8 9 10
( CPU Board )
48×48
PAD of OUT2：
SHORT
PAD of AL1：
OPEN
OUT1 / ALARM OUT1 /OUT2
FY600 , FY800 , FY900 FY600 , FY800 , FY900
FY700 FY700
FY400 FY400
