Takeuchi TB014 User Manual

161
SPECIFICATIONS
Units: mm (inches)

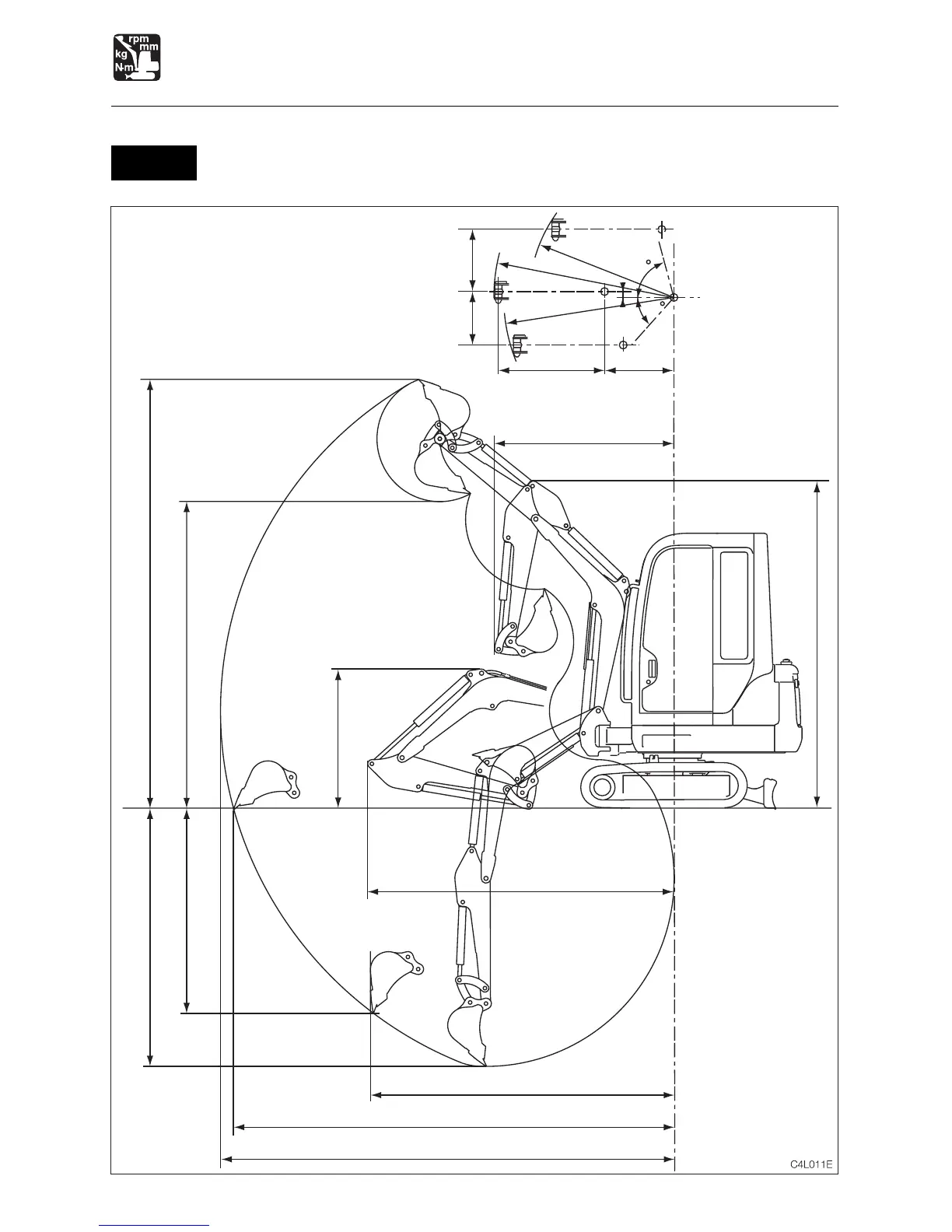

Operating Range
TB014
Equipped with Cab and 1040 mm (41 in.) Arm
3570(140.6) Max. digging height
2135(84.1) Max. digging depth
1690(66.5) Max. vertical digging depth
2520(99.2)
3765(148.2) Max. digging radius
3660(144.1) Max. ground digging radius
2545(100.2) in Transport position
2555(100.6) Max. dumping height
1165(45.9) in Transport position
2690(105.9)
Values are indicated in units of mm, inches in( ).
Bucket offset
520(20.5)445(17.5)
R
1200
(47.2)
R
1495(58.9)
R1415(55.7)
50(2.0)
575(22.6)
1490(58.7)
880(34.6)
Front slewing radius
75
50

Takeuchi TB014 Specifications

General

Engine	Yanmar 3TNV70
Overall Width	980 mm
Transport Width	980 mm
Bucket Capacity	0.04 m3
Max Digging Depth	2260 mm
