SPECIFICATIONS
Units: mm (inches)

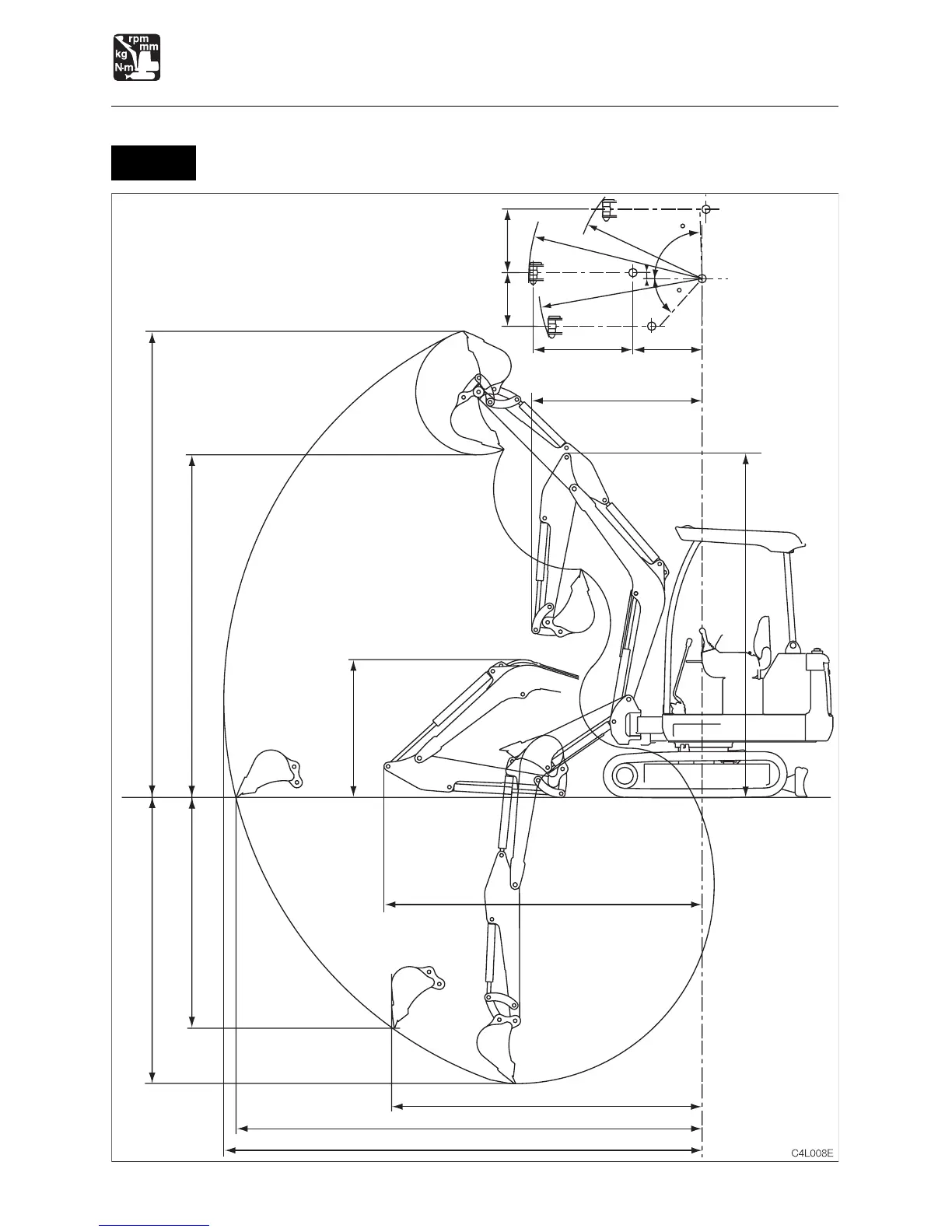

Operating Range
TB016
Equipped with Canopy and 1130 mm (44 in.) Arm
3875(152.6) Max. digging height
2375(93.5) Max. digging depth
1910(75.2) Max. vertical digging depth
2600(102.4)
3990(157.1) Max. digging radius
3890(153.1) Max. ground digging radius
2665(104.9) in Transport position
2845(112.0) Max. dumping height
1145(45.1) in Transport position
2860(112.6)
Values are indicated in units of mm, inches in( ).
Bucket offset
525(20.7)
445(17.5)
R1050(41.3)
R1440(56.9)
R1360(53.5)
50(2.0)
575(22.6)
825(32.5)
1435(56.5)
Front slewing radius
90
50

Takeuchi TB014 Specifications

General

Engine	Yanmar 3TNV70
Overall Width	980 mm
Transport Width	980 mm
Bucket Capacity	0.04 m3
Max Digging Depth	2260 mm
