SPECIFICATIONS
Units: mm (inches)

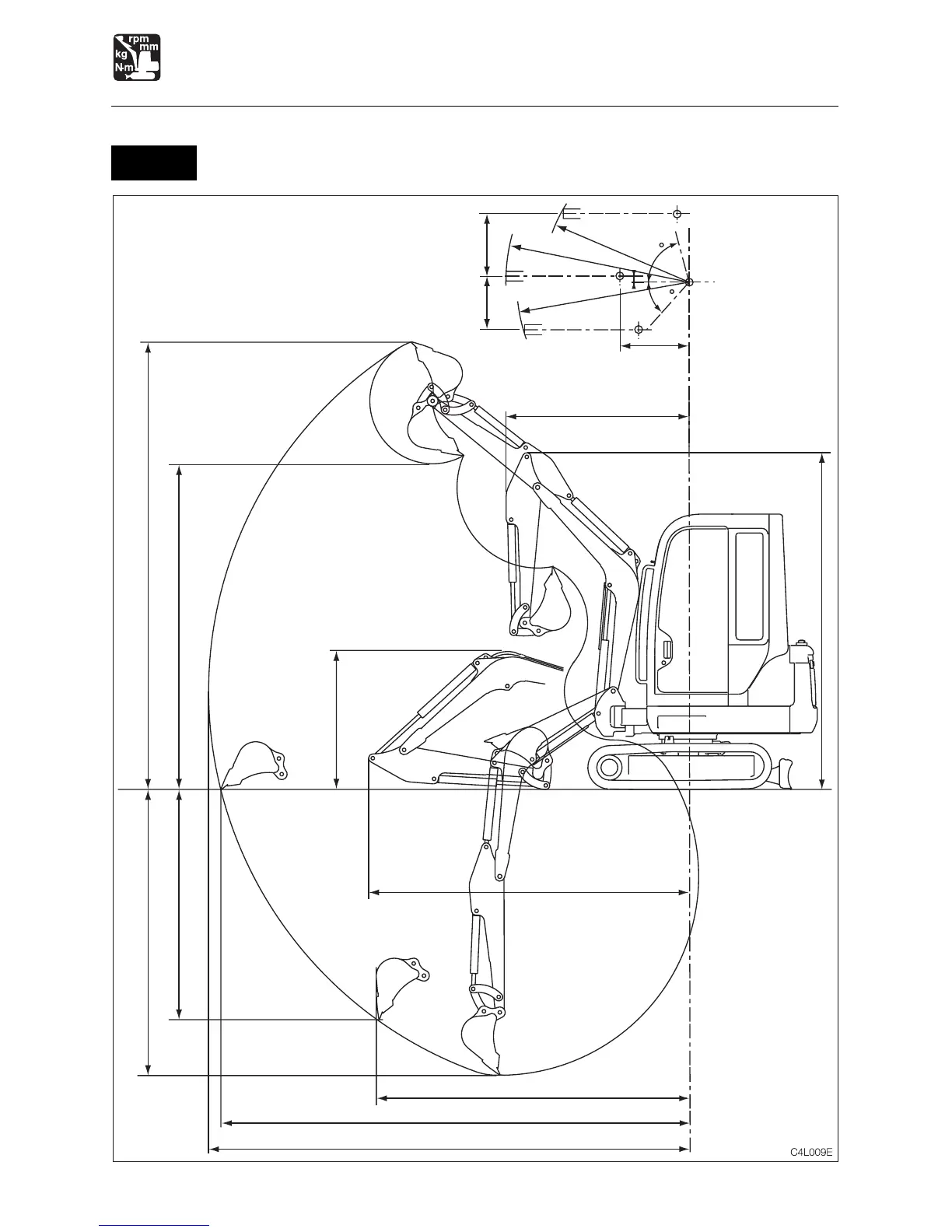

Operating Range
TB016
Equipped with Cab and 1130 mm (44 in.) Arm
3720(146.5) Max. digging height
2375(93.5) Max. digging depth
1910(75.2) Max. vertical digging depth
2600(102.4)
3990(175.1) Max. digging radius
3890(153.1) Max. ground digging radius
2665(104.9) in Transport position
2705(106.5) Max. dumping height
1145(45.1) in Transport position
2800(110.2)
Values are indicated in units of mm, inches in( ).
Bucket offset
520(20.5)445(17.5)
R1210(47.6)
R1520(59.8)
R1430(56.3)
50(2.0)
575(22.6)
1520(59.8)
Front slewing radius
75
50

Takeuchi TB014 Specifications

General

Engine	Yanmar 3TNV70
Overall Width	980 mm
Transport Width	980 mm
Bucket Capacity	0.04 m3
Max Digging Depth	2260 mm
