Takeuchi TB014 User Manual

188
OPTIONS

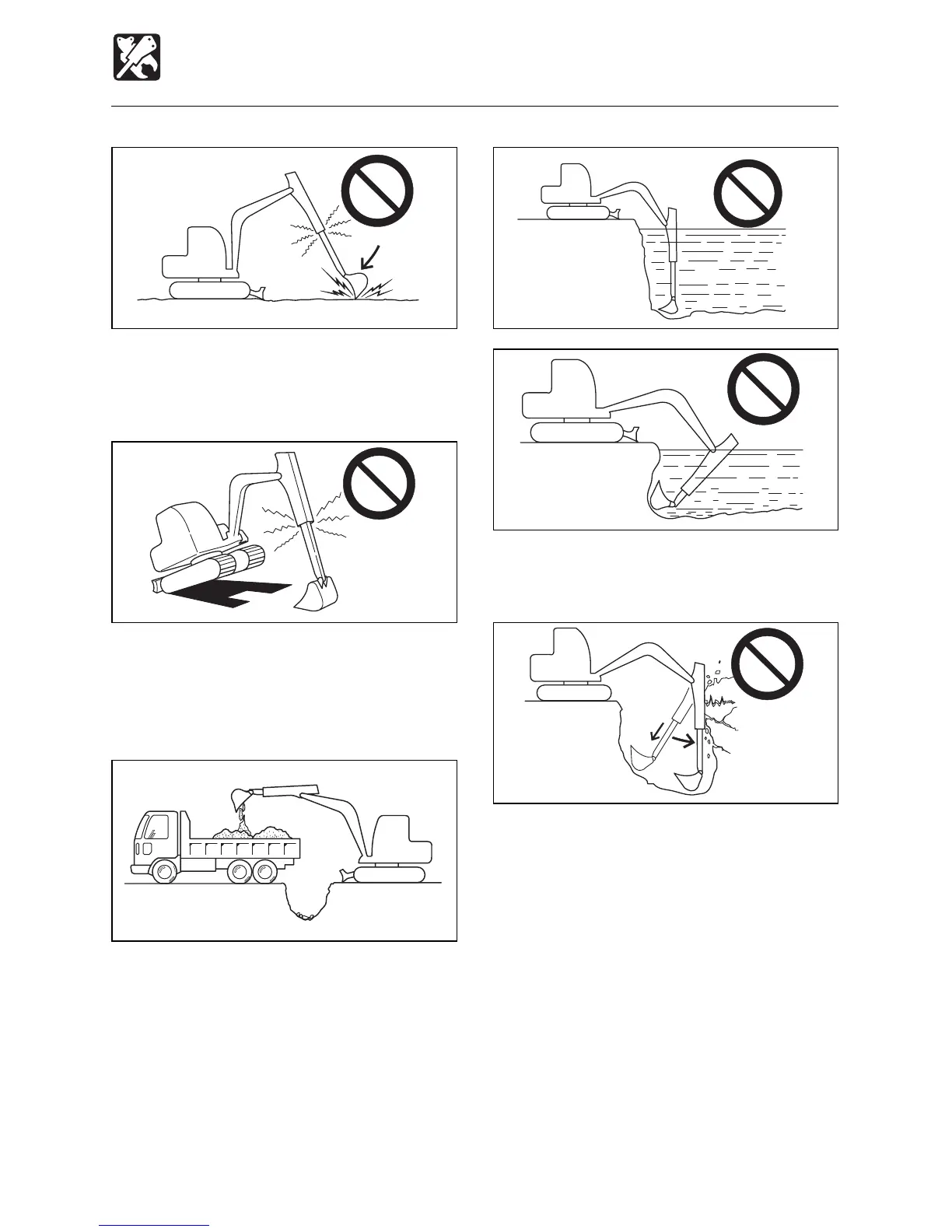

¡ Do not operate on base rock or hard soils,
as doing so may shorten the arm’s service
life.
¡ Do not change directions with machine
lifted by pressing the bucket pressed
against the ground. Doing so may damage
the arm.
¡ When dumping soil from the bucket or
shaking the bucket to remove the
remaining soil, do so with the arm retracted
to protect the arm extension/retraction
section.
¡ Do not put the arm under water. Also avoid
moisture when storing.
¡ The arm pressing speed is slow when
pressing the arm while simultaneously
extending it, but the arm pressing speed
suddenly comes faster when the arm
extending operation is stopped or the
cylinder end is reached. Be careful not to
hit surrounding objects.
Telescopic Arm
OL1L070
OL1L080
OL1L090
OL1L100
OL1L110
OL1L120

Takeuchi TB014 Specifications

General

Engine	Yanmar 3TNV70
Overall Width	980 mm
Transport Width	980 mm
Bucket Capacity	0.04 m3
Max Digging Depth	2260 mm
