Takeuchi TB014 User Manual

190
OPTIONS

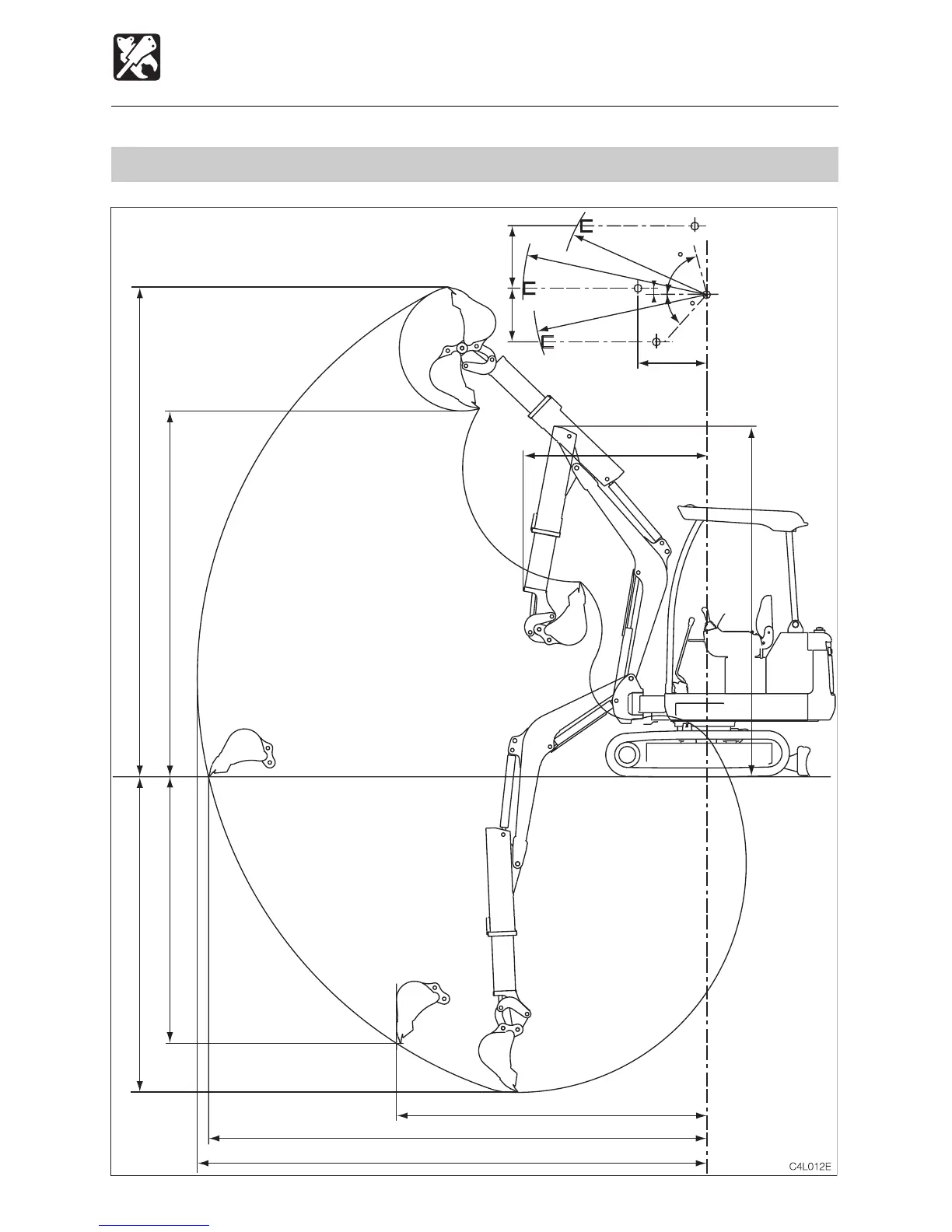

Operating Ranges TB016 Canopy (Fully Extended Arm)
Telescopic Arm
4070(160.2) Max. digging height
2620(103.1) Max. digging depth
2215(87.2) Max. vertical digging depth
2580(101.6)
4230(166.5) Max. digging radius
4140(163.0) Max. ground digging radius
3035(119.5) Max. dumping height
2910(114.6)
Values are indicated in units of mm, inches in( ).
Bucket offset
520(20.5)
445(17.5)
R1220(48.0)
R1530(60.2)
R1440(56.7)
50(2.0)
575(22.6)
1525(60.0)
Front slewing radius
75
50

Takeuchi TB014 Specifications

General

Engine	Yanmar 3TNV70
Overall Width	980 mm
Transport Width	980 mm
Bucket Capacity	0.04 m3
Max Digging Depth	2260 mm
