MAINTENANCE
Service Data

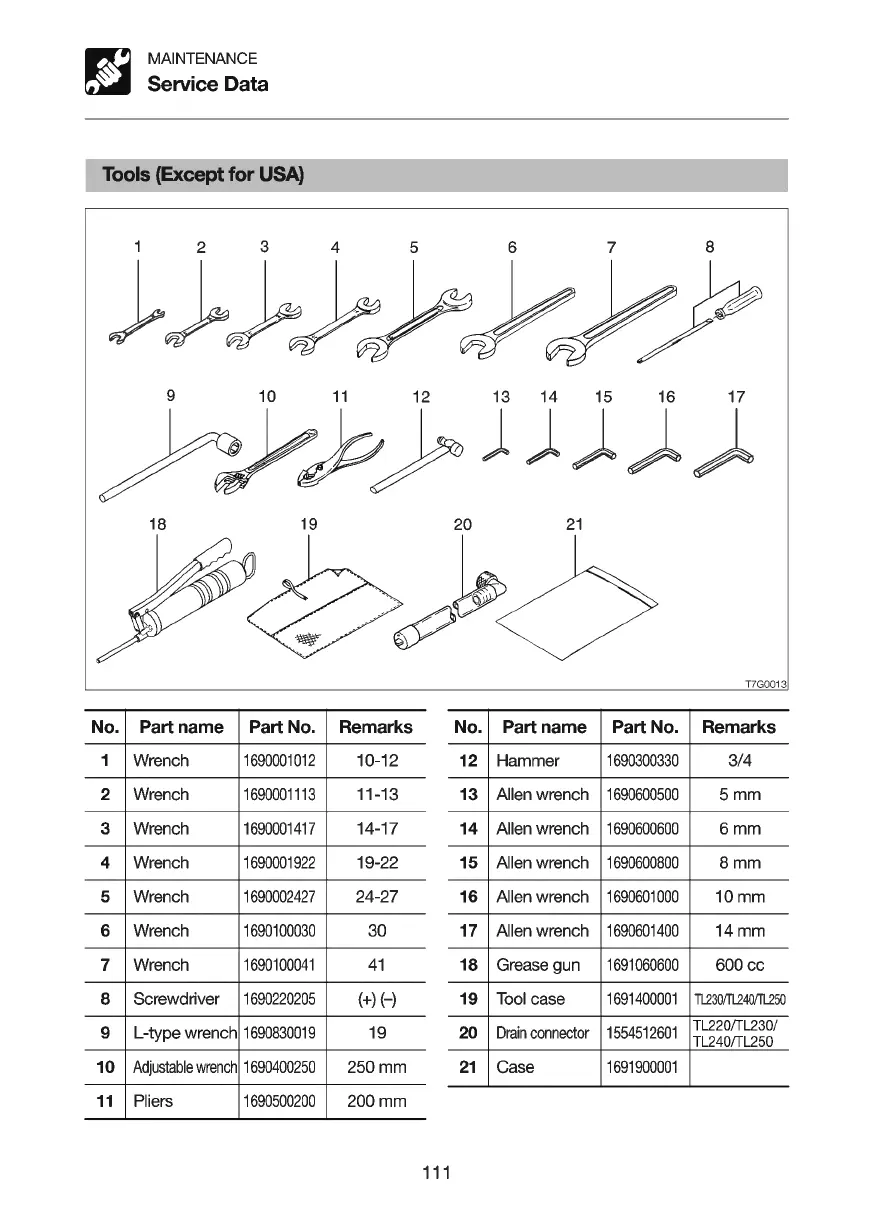

Tools (Except for USA)
No. Part name Part No.
1 Wrench 1690001012
2 Wrench 1690001113
3 Wrench 1690001417
4 Wrench 1690001922
5 Wrench 1690002427
6 Wrench 1690100030
7 Wrench 1690100041
8
Screwdriver 1690220205
9
L-type wrench
1690830019
10 Adjustable wrench 1690400250
11 Pliers 1690500200
Remarks
10-12
11-13
14-17
19-22
24-27
30
41
(+)(-)
19
250mm
200mm
111
13 14 15 16 17
21
T7G0013
No. Part name Part No. Remarks
12 Hammer
1690300330 3/4
13 Allen wrench 1690600500 5mm
14 Allen wrench 1690600600 6mm
15 Allen wrench 1690600800 8mm
16 Allen wrench 1690601000 10mm
17 Allen wrench 1690601400 14mm
18 Grease gun 1691060600
600 cc
19 Tool case 1691400001 TL230/Tl240/Tl250
20 Drain connector 1554512601
TL220fTL230 /
TL240fTL250
21 Case 1691900001
