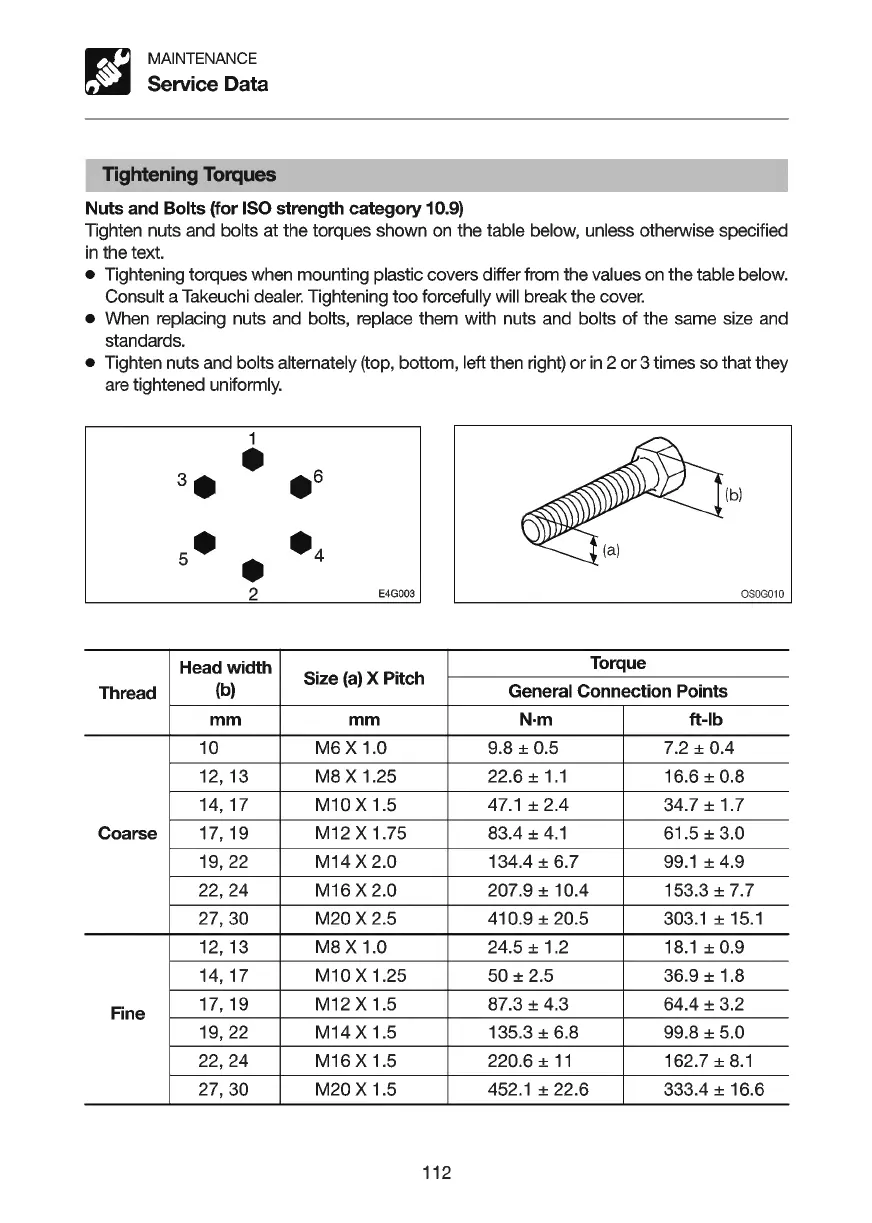

MAINTENANCE
Service
Data
Tightening Torques
Nuts and Bolts {for ISO strength category 10.9)
Tighten nuts and bolts at the torques shown on the table below, unless otherwise specified
in
the text.
• Tightening torques when mounting plastic covers differ from the values on the table below.
Consult a Takeuchi dealer. Tightening too forcefully will break the cover.
• When replacing nuts and bolts, replace them with nuts and bolts
of
the same size and
standards.
• Tighten nuts and bolts alternately (top, bottom, left then right)
or
in
2
or
3 times so that they
are tightened uniformly.
1
•
.6
3.
(b)
5 •
•
.4
2
E4G003
OSOG010
Head width
Size
{a)
X Pitch
Torque
Thread
{b)
General Connection Points
mm mm
N·m
ft-lb
10 M6 X 1.0
9.B
± 0.5 7.2 ± 0.4
12, 13
MB
X 1.25 22.6 ±
1.1
16.6 ±
O.B
14, 17
M10X1.5
47.1
± 2.4
34.7±1.7
Coarse
17, 19 M12 X 1.75 B3.4 ±
4.1
61.5 ± 3.0
19,22
M14 X 2.0
134.4±6.7
99.1
± 4.9
22,24
M16X2.0
207.9 ± 10.4 153.3 ± 7.7
27,30
M20 X 2.5 410.9 ± 20.5 303.1 ±
15.1
12, 13
MB
X 1.0 24.5 ± 1.2
1B.1
± 0.9
14, 17 M10 X 1.25 50 ± 2.5 36.9 ±
1.B
Fine
17, 19
M12X1.5
B7.3 ± 4.3 64.4 ± 3.2
19,22
M14X1.5
135.3 ±
6.B
99.B
± 5.0
22,24
M16X1.5
220.6 ±
11
162.7±B.1
27,30
M20X1.5
452.1 ± 22.6 333.4 ± 16.6
112
