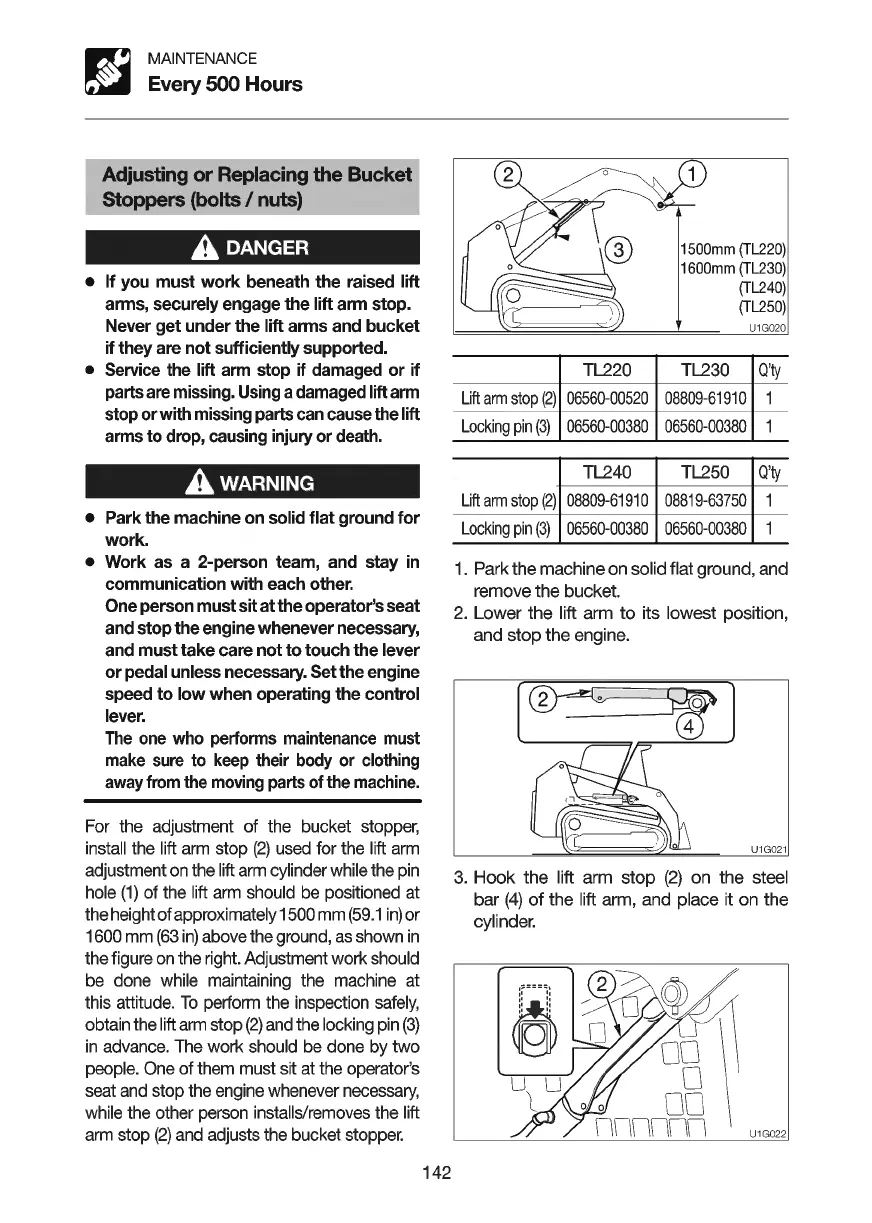

MAINTENANCE
Every 500 Hours
Adjusting or Replacing the Bucket
Stoppers (bolts
I nuts)
A DANGER
• If you must work beneath the raised lift
arms, securely engage the lift arm stop.
Never get under the lift arms and bucket
if they are not sufficiently supported.
• Service the lift arm stop if damaged or if
parts are missing. Using a damaged lift arm
stop or with missing parts can cause the lift
arms to drop, causing injury or death.
AwARNING
• Park the machine on solid flat ground for
work.
• Work as a 2-person team, and stay in
communication with each other.
One person must sit at the operator's seat
and stop the engine whenever necessary,
and must take care not to touch the lever
or pedal unless necessary. Set the engine
speed to low when operating the control
lever.
The one who performs maintenance must
make sure to keep their body or clothing
away from the moving parts of the machine.
For the adjustment of the bucket stopper,
install the lift arm stop (2) used for the lift arm
adjustment on the lift arm cylinder while the pin
hole (1) of the lift arm should be positioned at
the height of approximately 1500 mm (59 .1 in) or
1600 mm (63 in) above the ground, as shown in
the figure on the right. Adjustment work should
be done while maintaining the machine at
this attitude. To perform the inspection safely,
obtain the lift arm stop (2) and the locking pin (3)
in advance. The work should be done by two
people . One of them must sit at the operator's
seat and stop the engine whenever necessary,
while the other person installs/removes the lift
arm stop (2) and adjusts the bucket stopper.
142
TL220
Lift arm stop (2) 06560-00520
Locking pin (3)
06560-00380
TL240
Lift arm stop (2)
08809-61910
Locking pin (3) 06560-00380
1500mm (TL220)
1600mm (TL230)
(TL240)
(TL250)
U1G020
TL230 Q' ty
08809-61910 1
06560-00380
1
TL250
Q'ty
08819-63750
1
06560-00380 1
1. Park the machine on solid flat ground, and
remove the bucket.
2. Lower the lift arm to its lowest position,
and stop the engine.
U1G021
3. Hook the lift arm stop (2) on the steel
bar
(4) of the lift arm, and place it on the
cylinder.
U1G022
