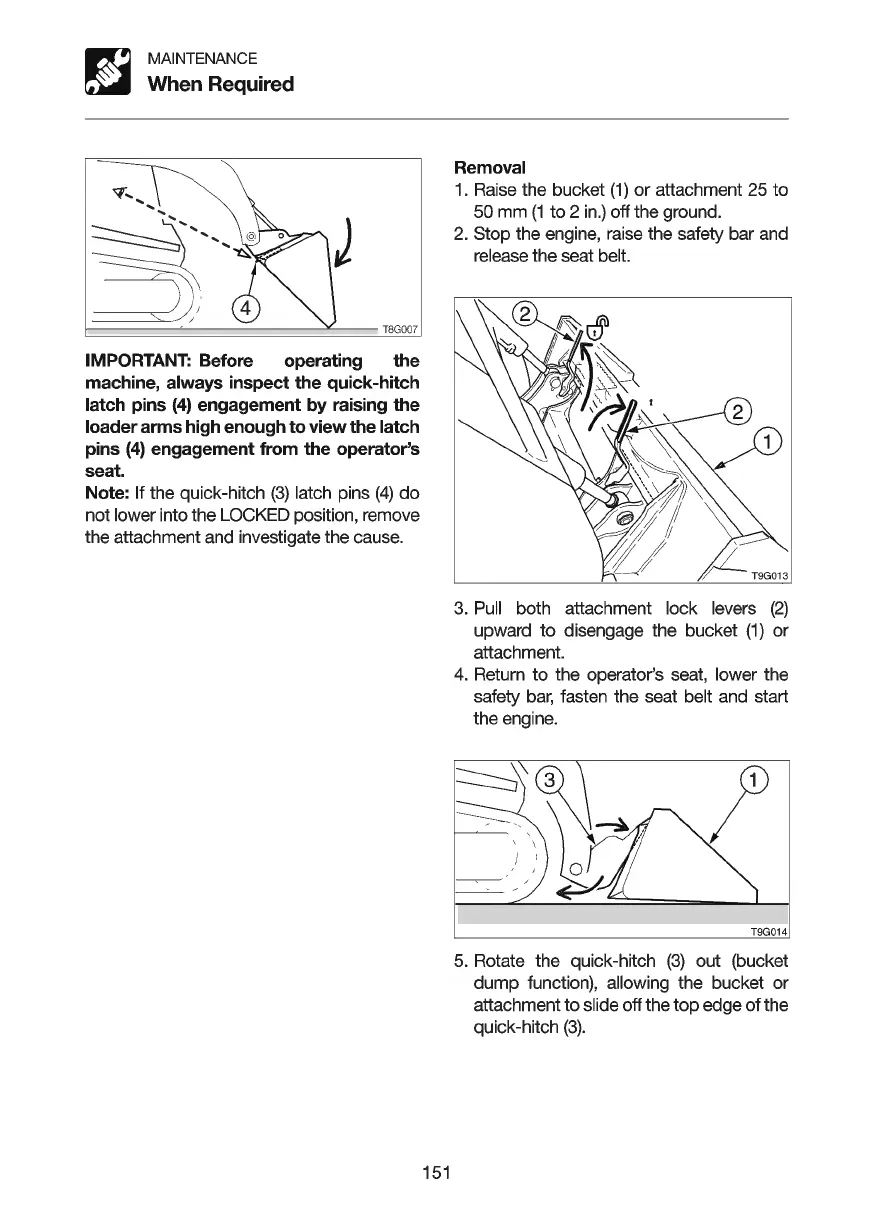

MAINTENANCE
When Required
1
----~-----~~-T8G
007
IMPORTANT: Before operating the
machine, always inspect the quick-hitch
latch pins
(4)
engagement by raising the
loader arms high enough to view the latch
pins
(4)
engagement from the operator's
seat.
Note:
If the quick-hitch
(3)
latch pins
(4)
do
not lower into the LOCKED position, remove
the attachment and investigate the cause.
151
Removal
1.
Raise
the bucket
(1)
or attachment 25 to
50 mm
(1
to 2
in.)
off the ground.
2.
Stop the engine,
raise
the safety bar and
release the seat belt.
3.
Pull
both attachment lock levers
(2)
upward to disengage the bucket
(1)
or
attachment.
4.
Return to the operator's seat, lower the
safety bar, fasten the seat belt and start
the engine.
I
T9G014
5.
Rotate the quick-hitch
(3)
out (bucket
dump function), allowing the bucket or
attachment to slide off the top edge
of
the
quick-hitch
(3)
.
