MAINTENANCE
When
Required

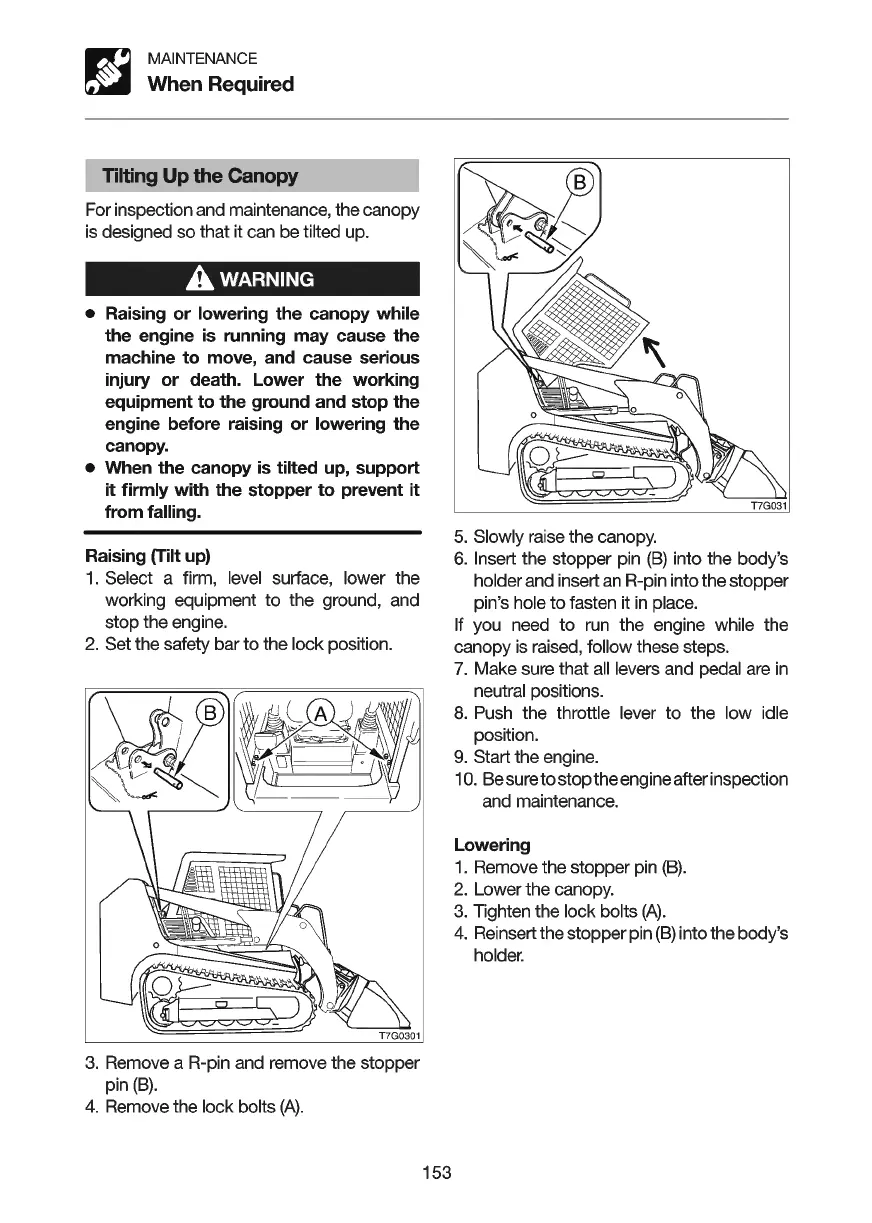

Tilting Up the Canopy
For inspection and maintenance, the canopy
is designed so that it can be tilted
up
.
AwARNING
• Raising or lowering the canopy while
the engine
is
running may cause the
machine to move, and cause serious
injury or death. Lower the working
equipment to the ground and stop the
engine before raising or lowering the
canopy.
• When the canopy
is
tilted up, support
it firmly with the stopper to prevent
it
from falling.
Raising (Tilt
up)
1.
Select a firm, level surface, lower the
working equipment
to
the ground, and
stop the engine.
2. Set the safety bar
to
the lock position.
3.
Remove a R-pin and remove the stopper
pin
(B)
.
4.
Remove the lock bolts
(A)
.
153
5.
Slowly raise the canopy.
6.
Insert the stopper pin
(B)
into the
body
's
holder and insert an R-pin into the stopper
pin's hole
to
fasten it
in
place.
If you need
to
run the engine while the
canopy
is
raised, follow these steps.
7.
Make sure that all levers and pedal are
in
neutral positions.
8.
Push the throttle lever
to
the low idle
position.
9. Start the engine.
10.
Besuretostoptheengineafterinspection
and maintenance.
Lowering
1. Remove the stopper pin (8).
2. Lower the canopy.
3. Tighten the lock bolts
(A)
.
4.
Reinsert the stopper pin
(B)
into the
body
's
holder.
