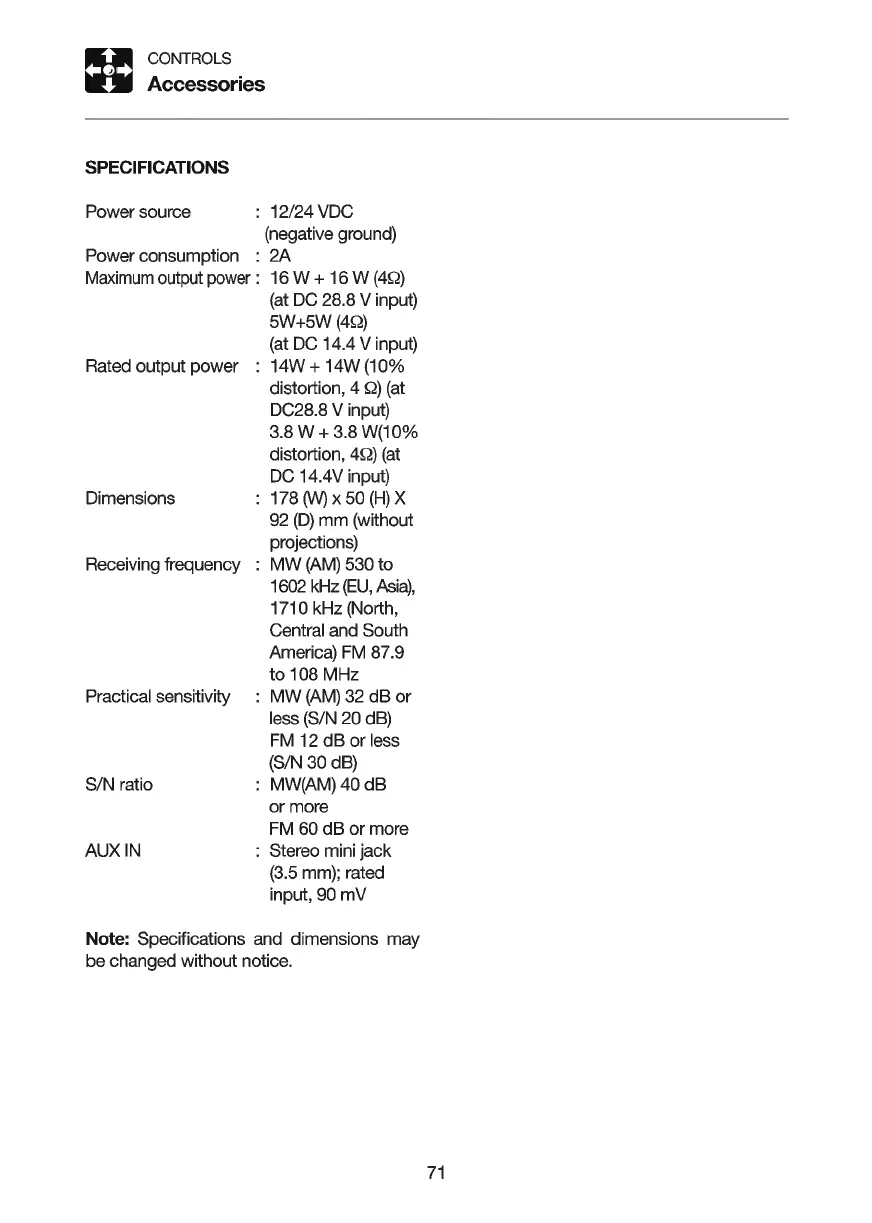

CONTROLS
Accessories
SPECIFICATIONS
Power source : 12124 voe
(negative ground)
Power consumption :
2A
Maximum output power : 16 W + 16 W (4Q)
(at DC 28.8 V input)
5W+5W(4Q)
(at DC 14.4 V input)
Rated output
power : 14W + 14W (10%
distortion, 4
Q) (at
DC28.8 V input)
3.8 W + 3.8 W(10%
distortion, 4Q) (at
DC 14.4V input)
Dimensions : 178
(W) x 50 (H) X
92 (D) mm (without
projections)
Receiving frequency
MW (AM) 530 to
1602 kHz (EU , Asia) ,
1710 kHz (North,
Central and South
America) FM 87.9
to 108 MHz
Practical sensitivity :
MW (AM) 32 dB or
less (S/N 20 dB)
FM 12
dB or less
(S /N 30 dB)
S/N ratio : MW(AM) 40
dB
AUXIN
or more
FM 60
dB or more
: Stereo mini jack
(3 .5 mm); rated
input, 90 mV
Note: Specifications and dimensions may
be changed without notice.
71
