4.7 System
This subject is supplying information for the use of the technical staff of Talgil.
5. THE VARIOUS I/O OPTIONS
The following chapter describes the various I/O options including the various I/O interfaces, I/O
boards and RTUs recognized by the DREAM system:
5.1 Interface for local I/O AC or DC
The local I/O interface may control 1 or 2 I/O boards of 16 outputs and 8 digital inputs. It
is meant for reading digital inputs and activating outputs, which are close enough to be directly
connected to the control unit.

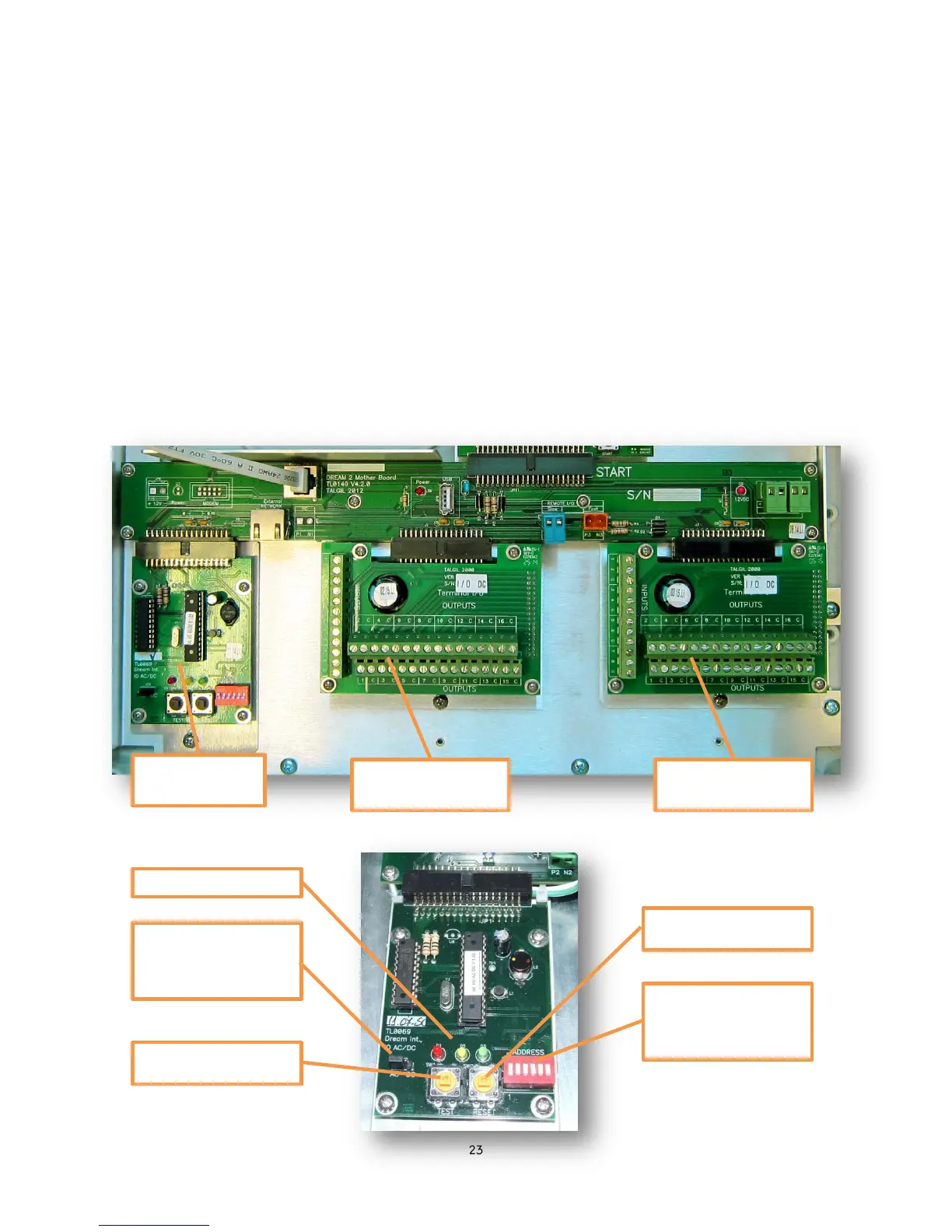

Let’s have a closer look at the local I/O interface:
The jumper by which
the interface is
adjusted to AC or DC
I/O boards
The address switch by
which the interface
address is set
Three indication LEDs
Test button
Local I/O
interface AC/DC
Local I/O board (1)
16 outputs / 8 inputs
Local I/O board (2)
16 outputs / 8 inputs
Reset button
