Talgil DREAM 2 - Lightning protection for the 2 W single cable system; Lightning protection for RS485 communication line; Lightning protection for 16 AC outputs

34

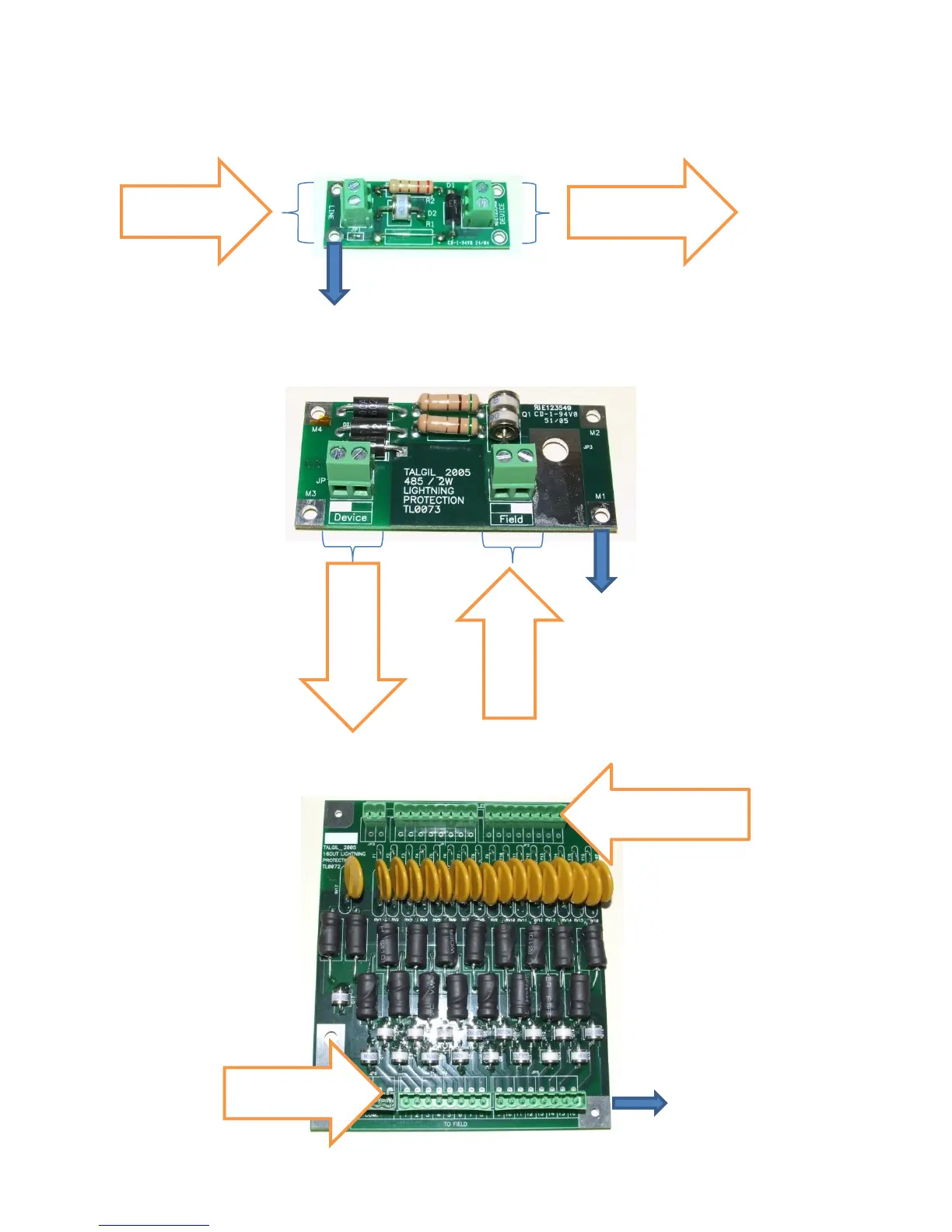

6.1 Lightning protection for the 2W single cable system
Ground
6.2 Lightning protection for RS485 communication line
Ground
6.3 Lightning protection for 16 AC outputs
Ground
Cable coming
from the field
Cable going to
the 2W interface
Cable coming
from the field
Cable going to
the 2W interface
Cables coming
from the field
Cables going to I/O
AC board
