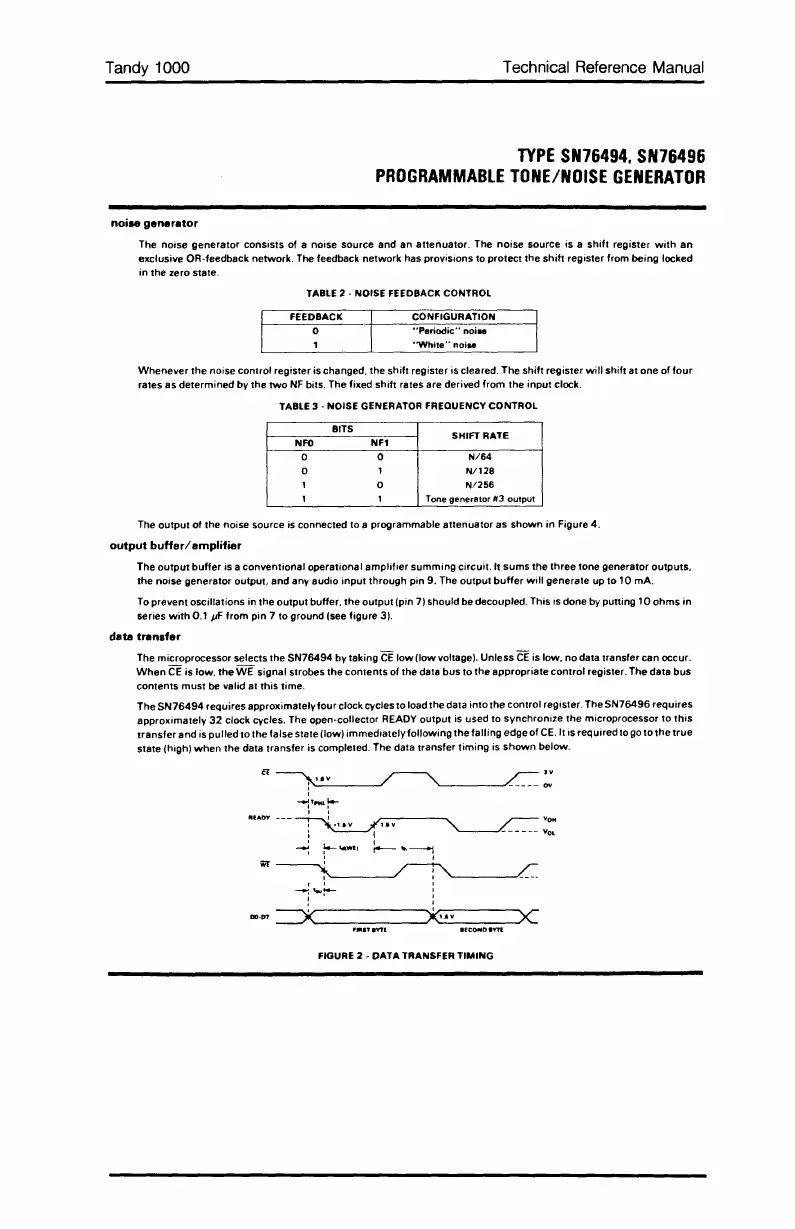

Tandy 1000
noise
generator
Technical Reference Manual
TYPE
SN76494.
SN76496
PROGRAMMABLE
TONE/NOISE
GENERATOR
The
noise
generator
consists
of a noise
source
and
an
attenuator.
The
noise
source
is
a
shift
register
with
an
exclusive
OR-feedback
network.
The feedback
network
has
provisions
to
protect
the
shih
register
from
being
locked
in
the
zero state.
TABLE 2 . NOISE FEEDBACK CONTROL
FEEDBACK
o
1
CONFIGURATION
"Periodic"
noi
..
"White"
"aiM
Whenever
the
noise
control
register
is changed.
the
shift
register
is
cleared.
The
shift
register
will
shift
at
one
of
four
rates as
determined
by
the
two
NF
bits. The fixed
shift
rates are derived
from
the
input
clock.
TABLE 3 - NOISE GENERATOR FREOUENCY
CONTROL
BITS
SHIFT RATE
NFO
NFl
0
0
N/64
0
1
N/128
1
0
N/256
1
1
Tone
generator
#3
output
The
output
of
the
noise source is connected
to
a
programmable
attenuator
as
shown
in
Figure
4.
output
buffer/amplifier
The
output
buffer
is
a
conventional
operational
amplifier
summing
circuit.
It sumS
the
three
tone
generator
outputs,
the
noise
generator
output,
and
any
audio
input
through
pin 9. The
output
buffer
will
generate
up
to
10
mAo
To
prevent
oscillations
in
the
output
buffer.
the
output
(pin
7)should
be decoupled. This is
done
by
putting
10
ohms
in
series
with
0.1 pF
from
pin
7
to
ground
(see
figure
3).
data
transfer
The
microprocessor
selects
the
SN76494
by taking
CE
low
(low
voltage).
Unless
CE
is
low.
no
data
transfer
can occur.
When
CE
is
low.
the
WE
signal
strobes
the
contents
of
the
data
bus
to
the
appropriate
control
register.
The
data
bus
contents
must
be
valid at
this
time.
The
SN76494
requires
approximately
four
clock cycles
to
load
the
data
into
the
control
register. The
SN76496
requires
approximately
32
clock cycles. The
open-collector
READY
output
is
used
to
synchronize
the
microprocessor
to
this
transfer
and
is
pulled
to
the
false state
(low)
immediately
following
the
falling
edge
of
CE.lt
is
required
to go
to
the
true
state
(high)
when
the
data
transfer
is
completed. The data
transfer
timing
is
shown
below.
:TPHl~
"lADY---~.1.'\I
_~
~"'OM
:
~.......
~-----YOL
, I
~
r--
"""'(1
r---
ftI:
FIGURE 2 -
DATA
TRANSFER
TIMING
