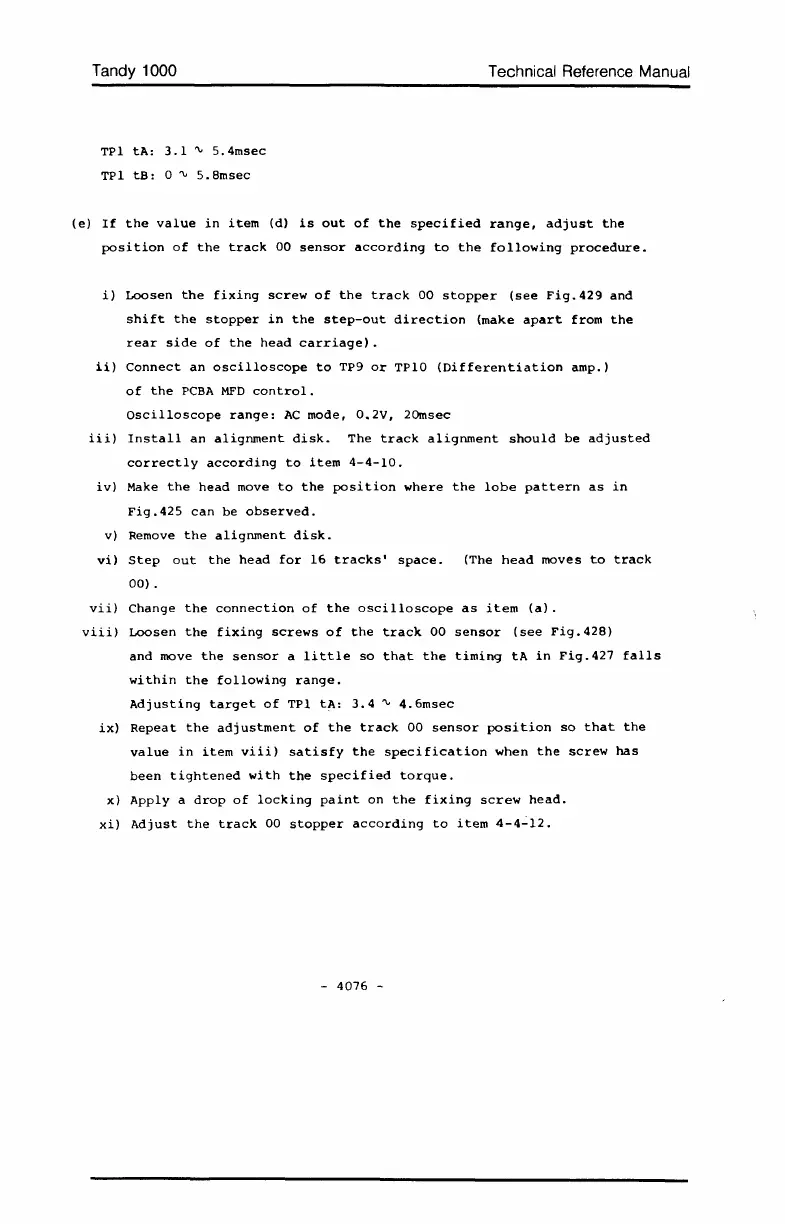

TPl tA: 3.1 ~ 5.4msec
TPl tB: 0 ~ 5.Bmsec
Technical Reference Manual
(e) If the value in item (d) is out of the specified range, adjust the
position of the track 00 sensor according to the following procedure.
i) Loosen the fixing screw of the track 00 stopper (see Fig.429 and
shift the stopper in the step-out direction (make apart from the
rear side of the head carriage) .
ii) Connect an oscilloscope to TP9 or TPIO (Differentiation amp.)
of the PCB A MFD control.
Oscilloscope range: AC mode, 0.2V, 20msec
iii) Install an alignment disk. The track alignment should be adjusted
correctly according to item 4-4-10.
iv) Make the head move to the position where the lobe pattern as in
Fig.425 can be observed.
v) Remove the alignment disk.
vi) Step out the head for 16 tracks' space. (The head moves to track
00) .
vii) Change the connection of the oscilloscope as item (a).
viii) Loosen the fixing screws of the track 00 sensor (see Fig.42B)
and move the sensor a little so that the timing tA in Fig.427 falls
within the following range.
Adjusting target of TPl tA: 3.4 ~ 4.6msec
ix) Repeat the adjustment of the track 00 sensor position so that the
value in item viii) satisfy the specification when the screw has
been tightened with the specified torque.
x) Apply a drop of locking paint on the fixing screw head.
xi) Adjust the track 00 stopper according to item 4-4-12.
- 4076 -
