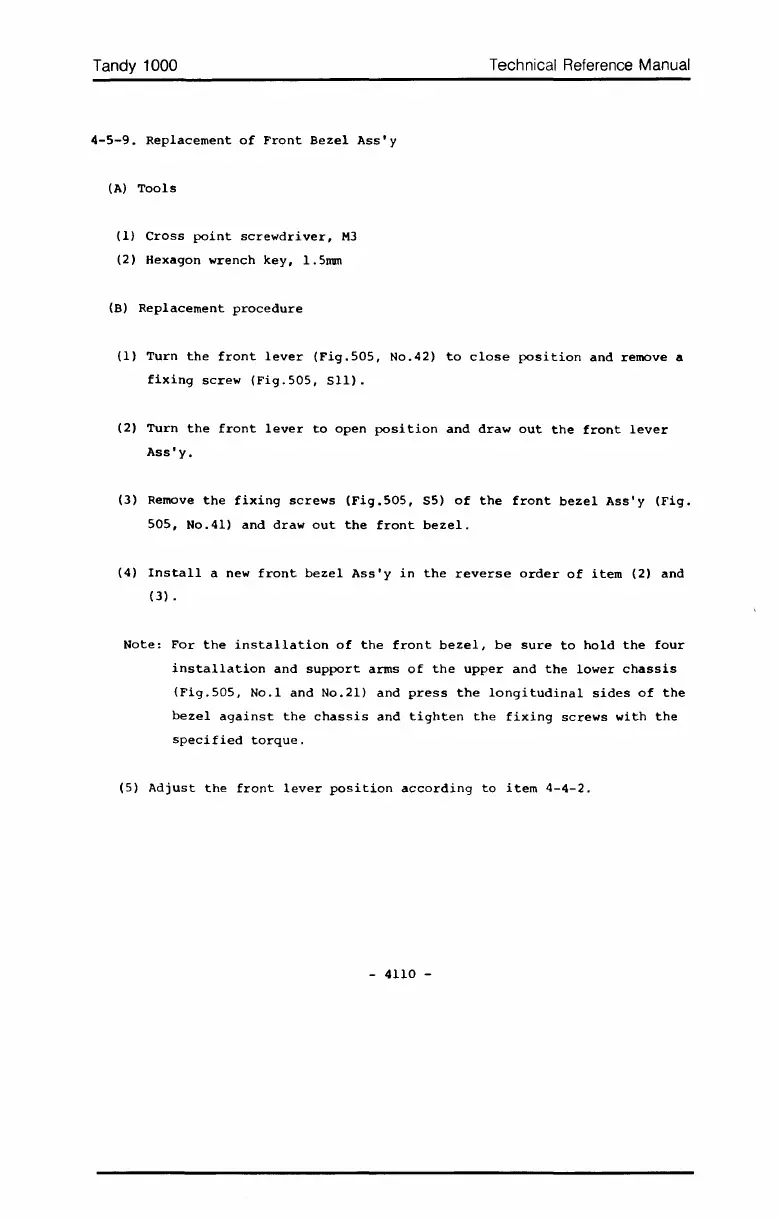

4-5-9. Replacement of Front Bezel Ass'y
(A) Tools
(1) Cross point screwdriver, H3
(2) Hexagon wrench key, l.Smm
(B) Replacement procedure
Technical Reference Manual
(1) Turn the front lever (Fig.SOS, No.42) to close position and remove a
fixing screw (Fig.SOS, 511).
(2) Turn the front lever to open position and draw out the front lever
Ass'y.
(3) Remove the fixing screws (Fig.50S, 55) of the front bezel Ass'y (Fig.
505, No.41) and draw out the front bezel.
(4) Install a new front bezel Ass'y in the reverse order of item (2) and
(3) •
Note: For the installation of the front bezel, be sure to hold the four
installation and support arms of the upper and the lower chassis
(Fig.SOS, No.1 and No.21) and press the longitudinal sides of the
bezel against the chassis and tighten the fixing screws with the
specified torque.
(5) Adjust the front lever position according to item 4-4-2.
- 4110 -
