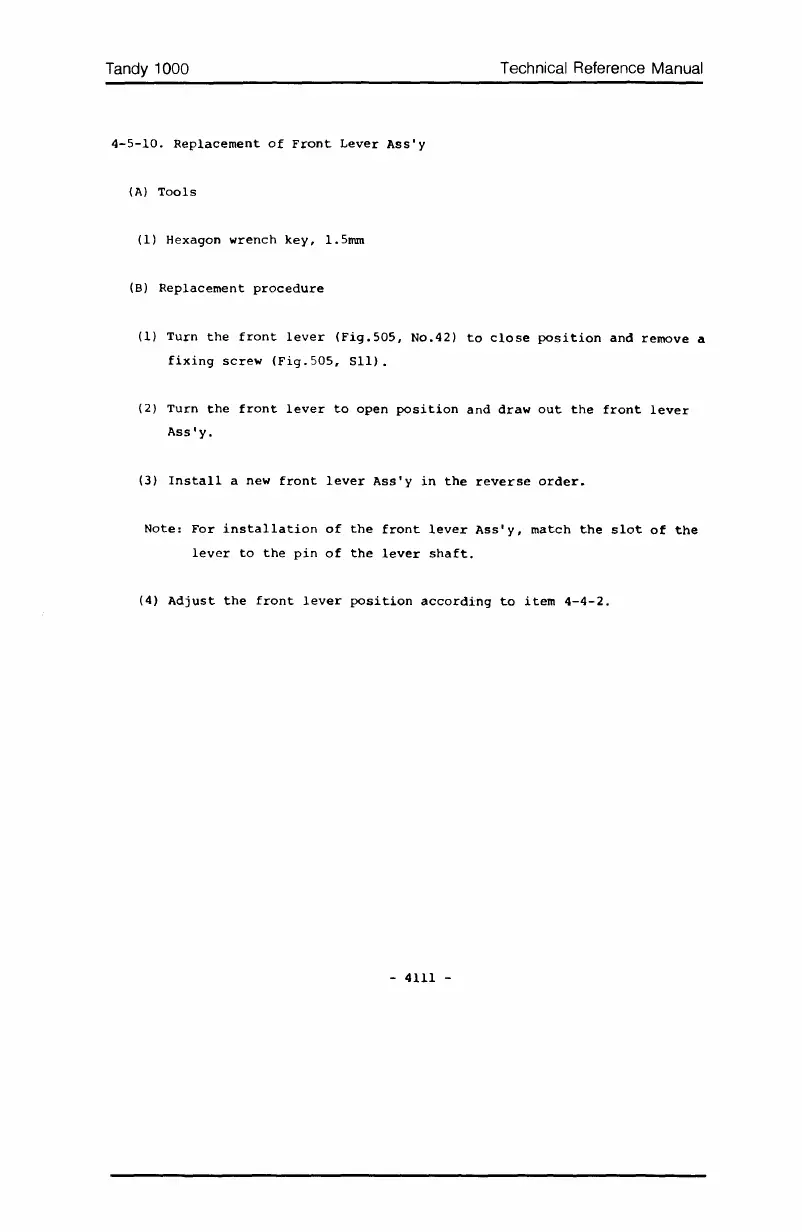

Tandy 1000
4-5-10.
Replacement
of
Front
Lever
Ass'y
(A)
Tools
(1) Hexagon
wrench
key,
1.Smm
(B)
Replacement
procedure
Technical Reference Manual
(1)
Turn
the
front
lever
(Fig.50S,
No.42)
to
close
position
and
remove
a
fixing
screw
(Fig.
50S,
Sll).
(2)
Turn
the
front
lever
to
open
position
and
draw
out
the
front
lever
Ass'y.
(3)
Install
a new
front
lever
Ass'y
in
the
reverse
order.
Note:
For
installation
of
the
front
lever
Ass'y,
match
the
slot
of
the
lever
to
the
pin
of
the
lever
shaft.
(4)
Adjust
the
front
lever
position
according
to
item
4-4-2.
-
4111
-
