Tandy 1000 Technical Reference Manual

Tandy 1000
Technical Reference Manual
Nos. Parts. Nos.
Parts name
Q'ty
Description
21
16152891-00
Upper
chassis
1
22 16787150-00
Insulation
sheet
1
23 16787151-00
Disk pad B
1 Note 3
24 16802616-00
Set arm
1
25
17966929-00
Clamp
cam
Ass'y(C)
1
26
16787148-00
Clamp
shaft holder
1
27
16392019-00
Clamp spring
1
28
16381104-00
Clamp
return spring
1
29
17966933-00
Collet shaft plate ASs'y
1
30
17966923-00
Collet Ass'y(C)
1
31
17966935-00
Bail Ass'y(A)
]*1
FO-54A
17966936-00
Bail Ass'y(B)
FD-54B
32
16787157-00
Disk
pad
A-2
1 Note 3
32B
Disk pad
1
Note 3
33
16381106-00
Disk pad lever
spring
1
34 15090730-00
Front OPT Ass'y(C)
1
35
15532006-XX
PCBA MFD control (C)
1
Note 5
36 16787152-00 Protection sheet
1
37 16730434-00
Fixing shaft 1
38 16787149-00
PCB holder 1
39
16322054-00
Cord clamper 1
40
16362418-00
Cable tie
4

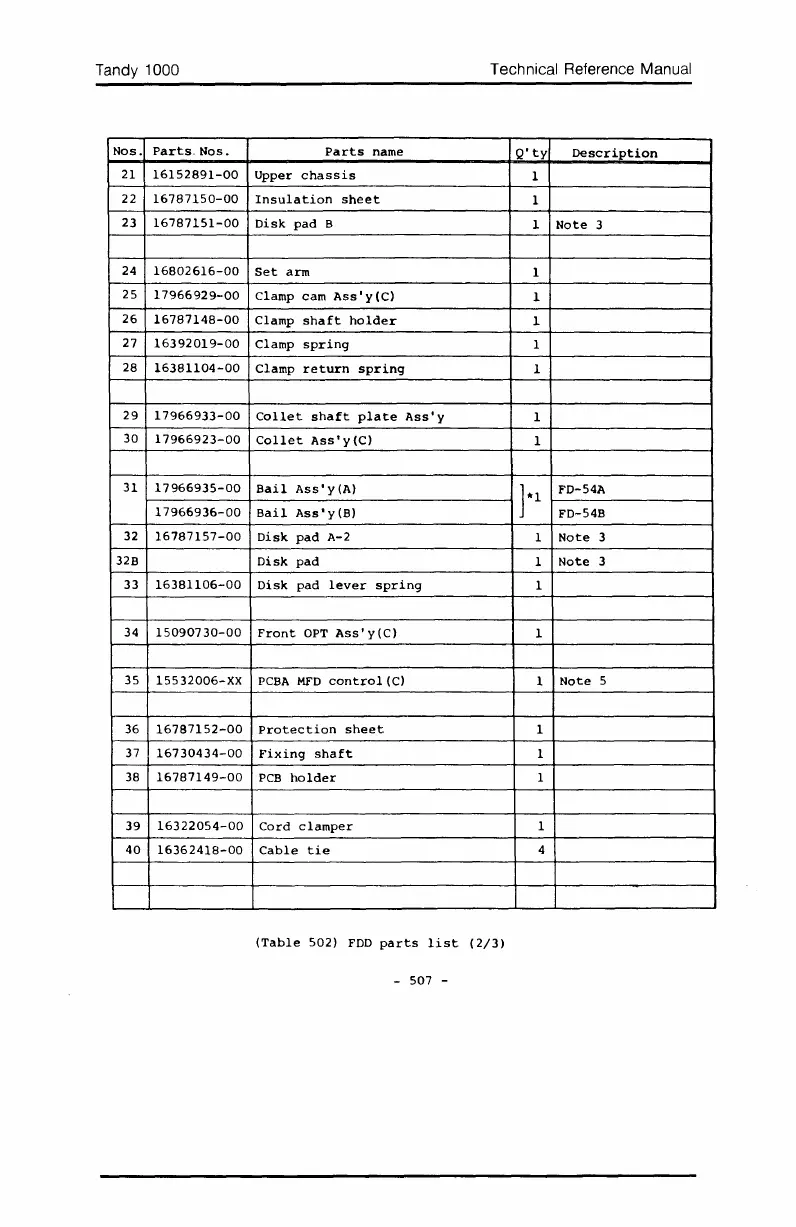

(Table 502) FDD parts list (2/3)
- 507 -

Tandy 1000 Specifications

General

Processor	Intel 8088
Processor Speed	4.77 MHz
RAM	128 KB (expandable to 640 KB)
Operating System	MS-DOS 2.11
Manufacturer	Tandy Corporation
Release Year	1984
Storage	Single or double 5.25" floppy disk drive (360 KB), optional hard drive
Sound	Tandy 3-voice sound
Ports	Parallel, Serial
Graphics	CGA (Color Graphics Adapter)
Graphics Modes	320x200, 640x200
