Tandy 1000 Technical Reference Manual

Tandy 1000
Technical Reference Manual
Nos.
Parts Nos.
Parts
name
Q'ty
Description
41 17966807-50
Front bezel Ass'y
1
Note 6
42
17966924- 00
Front
lever
Ass'y(C)
1
Note 6
43 16381109-00
Front lever
spring
1
44
17966937-00
Shield cover Ass'y
1
I

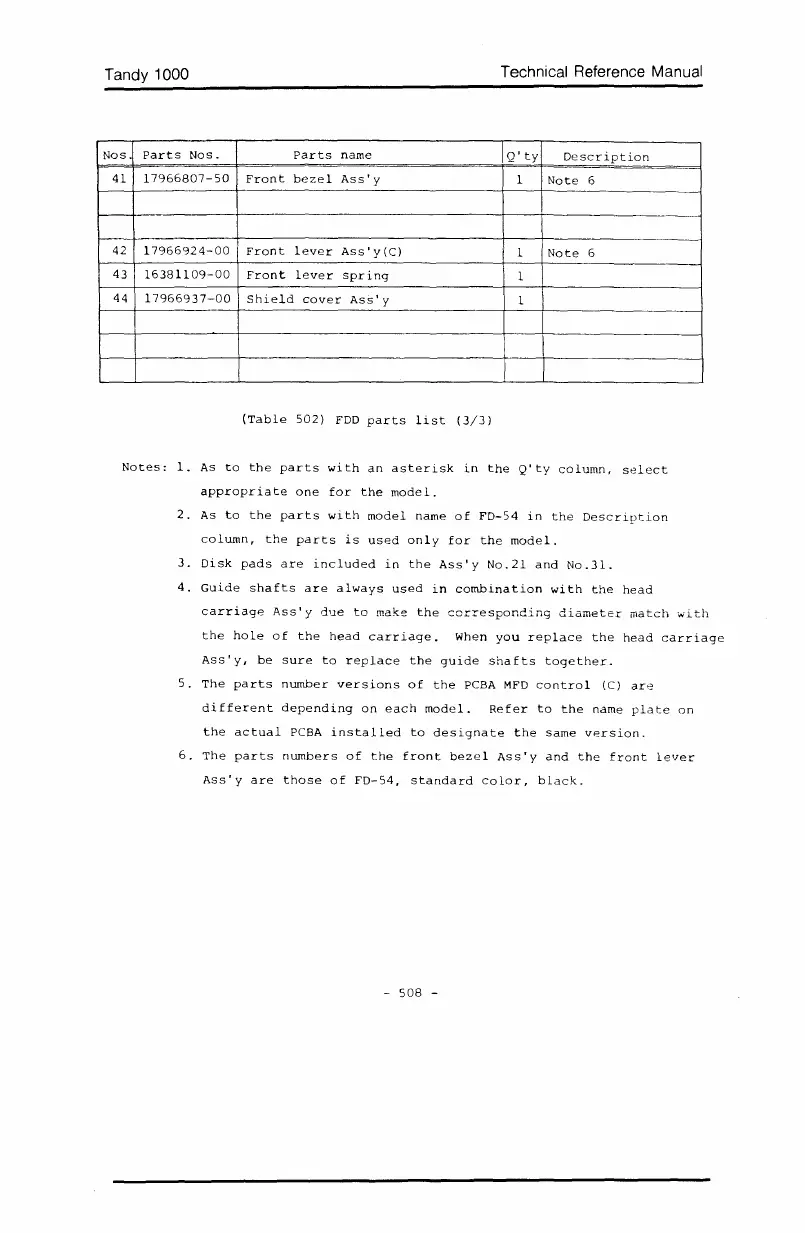

(Table 502) FDD parts list (3/3)
Notes: 1. As to the parts with an asterisk in the Q'ty column, select
appropriate one for the model.
2. As to the parts with model name of FD-54 in the Description
column, the parts is used only for the model.
3. Disk pads are included in the ASs'y No.2l and No.3l.
4. Guide shafts are always used in combination with the head
carriage Ass·y due to make the corresponding diameter match with
the hole of the head carriage. When you replace the head carriage
Ass'y, be sure to replace the guide shafts together.
5. The parts number versions of the PCBA MFD control (e) are
different depending on each model. Refer to the name plate on
the actual peBA installed to designate the same version.
6. The parts numbers of the front bezel Ass'y and the front lever
Ass'y are those of FD-54, standard color, black.
- 508 -

Tandy 1000 Specifications

General

Processor	Intel 8088
Processor Speed	4.77 MHz
RAM	128 KB (expandable to 640 KB)
Operating System	MS-DOS 2.11
Manufacturer	Tandy Corporation
Release Year	1984
Storage	Single or double 5.25" floppy disk drive (360 KB), optional hard drive
Sound	Tandy 3-voice sound
Ports	Parallel, Serial
Graphics	CGA (Color Graphics Adapter)
Graphics Modes	320x200, 640x200
