Tandy 1000 Technical Reference Manual

Tandy 1000
Technical Reference Manual
Parts Nos. Parts name &
rating
Location
13497266
Resistor array,SA 3-4.7Kn,J
RA4
13497286
Resistor
array,SC 4-2.2Kn,J
RA2
13497228-00
Resistor array,T-7228
RA5
13497227-00
Resistor array,T-7227
RA7
13497229-00
Resistor
array,T-7229
RA6
11187105
11187473
11187682
11187222
11198104
11198497
11051121
11051390
13040341
12903343
12903353
12903345
12903227
12903154
12903152
12903178
12903177
12903375
Resistor,RD,lj6W,1Mn,J
Resistor,RD,l/6W,47Kn,J
Resistor,RD,1j6W,6.8Kn,J
Resistor,RD,1/6w,2.2Kn,J
Resistor,RD,l/4W,100Kn,J
Resistor,RN,l/4W,1.24Kn,F
Resistor,RN,lW,120n,J
Resistor,RN,lW,39Q,J
Jumping wire
capacitor,CE,10V,lOO~F,M
Capacitor,CE,25v,47~F,M
Capacitor,CE,16V,22~F,M
Capacitor,CS,20V,15~F,M
Capacitor,CS,16V,47~F,M
Capacitor,CS,16V,2.2~F,K
Capacitor,CS,35V,O.22~F,K
capacitor,CS,35v,O.15~F,M
Capacitor,CS,16V,1~F,M
R16
**R15,R18
R17
R20
RIO
R19
R21
R13, R14
**S1
C2
C24
C6,C8
C7,C9
**C33,C34
C36
C13 ,C14
Cl1,C12
Cl7

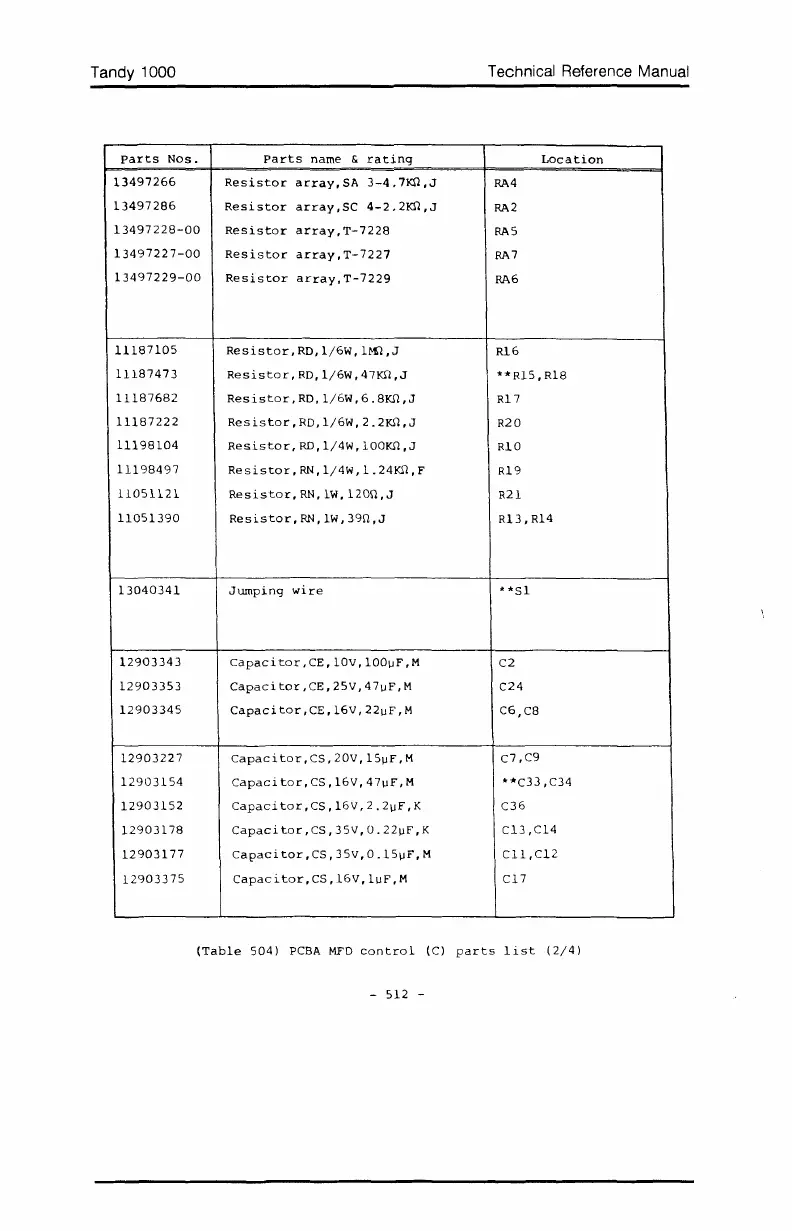

(Table 504) PCBA MFD control (C) parts list (2/4)
- 512 -

Tandy 1000 Specifications

General

Processor	Intel 8088
Processor Speed	4.77 MHz
RAM	128 KB (expandable to 640 KB)
Operating System	MS-DOS 2.11
Manufacturer	Tandy Corporation
Release Year	1984
Storage	Single or double 5.25" floppy disk drive (360 KB), optional hard drive
Sound	Tandy 3-voice sound
Ports	Parallel, Serial
Graphics	CGA (Color Graphics Adapter)
Graphics Modes	320x200, 640x200
