Tandy 1000 Technical Reference Manual

Tandy 1000
Technical Reference Manual
Parts Nos.
Parts name & rating Location
12903372
Capacitor,CS,16V,0.33~F,M
C5
129030BO Capacitor,CC,25v,yu,O.I~F,M
C26,C2B
12903335
Capacitor,CC,25V,X,O.022~F,Z
C3,C4,cIO,c15,C16,C20
C27,C31,C32
12902530
Capacitor,CC,500V,F,O.OI~F,Z
Cl
12901421
Capacitor,CC,50v,B,2200PF,K
C25
12901417
Capacitor,CC,50V,B,1000PF,K
C29
12900771
Capacitor,CC,50V,SL,lBOPF,J
C18,C19
12902588
capacitor,CC,50V,CH,56PF,J cn
12902578
Capacitor,CC,50V,CH,22PF,J C23
12454222
Capacitor,CQ,100V,2200PF,G
C30
12454152 Capacitor,CQ,100V,1500PF,G C35
12454101
Capacitor,CQ,100V,lOOPF,G C21
13295084-00
Ceramic oscillator,480KHz Yl
14723507
Coil,chalk,330~H,J
L1",L3
13121234
Connector,S6P,polarizing *J9
13121152
Connector,W12P,polarizing
13121361
Connector,S5P TP7"'10,G
13121363 Connector,S7P
TPI"'6,G
13121332 Connector,W14P
HS"'lU

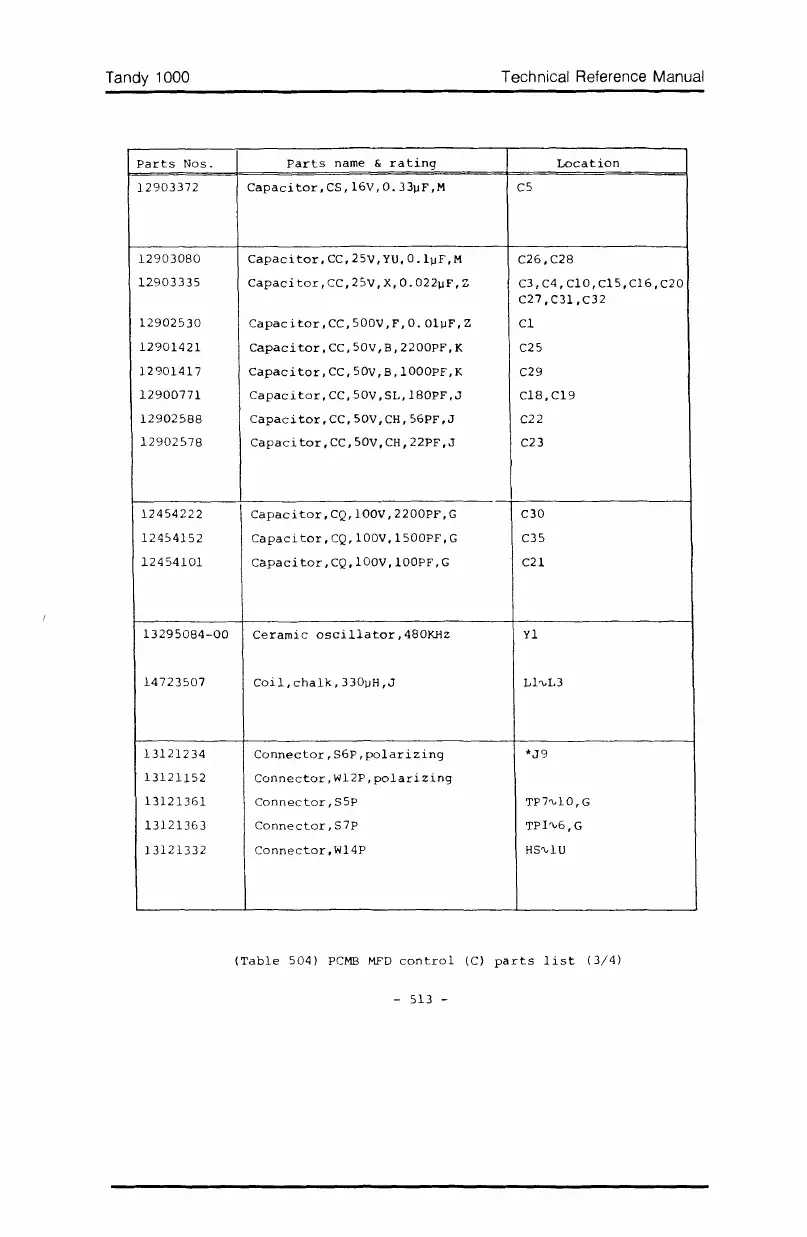

(Table 504) PCME MFD control (C) parts list (3/4)
- 513 -

Tandy 1000 Specifications

General

Processor	Intel 8088
Processor Speed	4.77 MHz
RAM	128 KB (expandable to 640 KB)
Operating System	MS-DOS 2.11
Manufacturer	Tandy Corporation
Release Year	1984
Storage	Single or double 5.25" floppy disk drive (360 KB), optional hard drive
Sound	Tandy 3-voice sound
Ports	Parallel, Serial
Graphics	CGA (Color Graphics Adapter)
Graphics Modes	320x200, 640x200
