g. Replace the DISPOSAL TONER UNIT.
- Replace the following DISPOSAL TONER UNIT.
302LF94400 PARTS DISPOSAL UNIT(ZG) SP
- Clean suction the accumulating toner at the
DISPOSAL TONER UNIT inside or the FILTER.

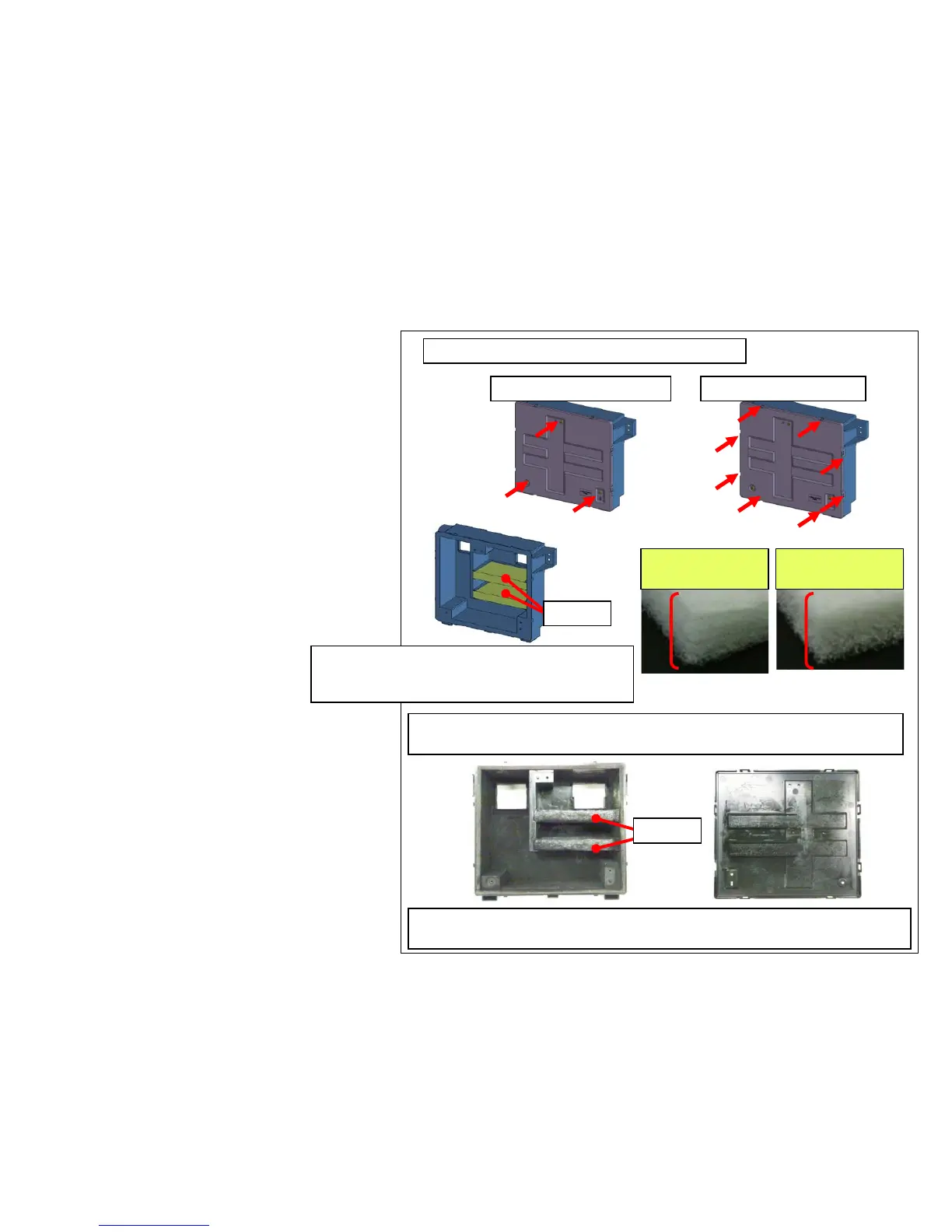

Refer to the right figure for the cleaning
procedure.
( FILTER )
302LC33240/FILTER OPTION A (New type)
302LF33820/FILTER TONER (Old type)
Remove the LID from the DISPOSAL TONER
Old type (2 piles
sheets)
New type (2 layer
structure)
Clean the inner part of accumulating toner and filter after opening the DISPOSAL
TONER UNIT.
When cleaning the old type Filter, Be careful for FILTER of the thinner side not to
be inhaled by the cleaner due to two-sheet piles.
FILTER
FILTER
Remove 3 pcs of screws Release 8pcs of snap-fit
Install the thick density side of FILTER at Fan side
with (both sheets). There are not difference in
performance between old and new 2 type of filters.
Image Smudges (9/13)
19
