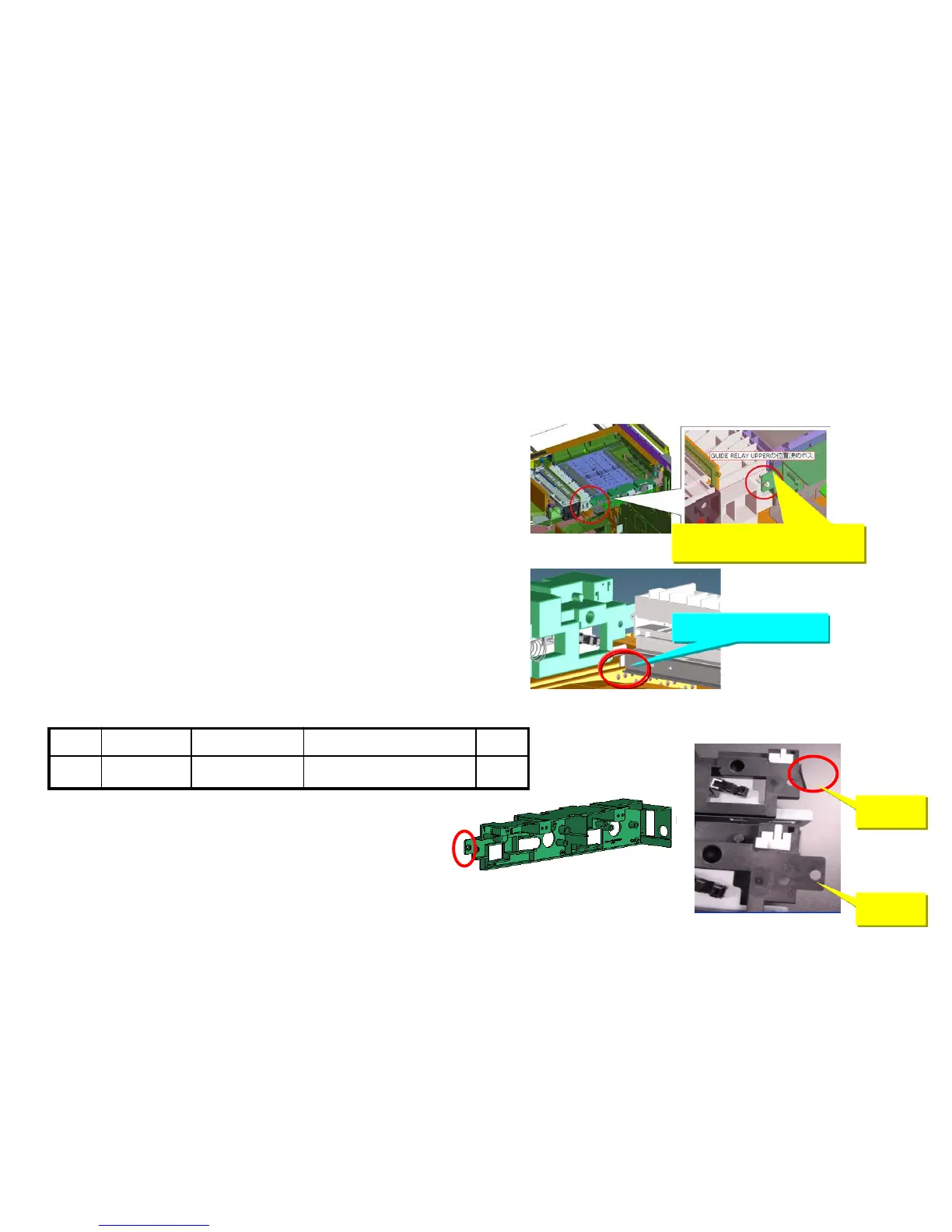

TASKalfa 3500i - J49 XX; J50 XX; J51 XX; J600 X; 1. Check positioning of bridge conveying-in unit; 2. Check positioning hole of bridge drive unit

1. Check whether the positioning of bridge conveying-in unit is
inserted into the positioning hole of the drive unit.
 If it is not inserted into the positioning hole.
ａ.While being careful not to contact with the tray in following fig, insert the
positioning boss of AK conveying-in unit into the positioning hole of the
drive unit.
Positioning with the drive unit
Contact part of the tray
If J49XX/J50XX/J51XX/J600X occurs, check the following item 1 to 7.
2. Check whether the positioning hole of the bridge drive unit is damaged.
 If it is damaged, replace the AK drive unit (following item number.)
Broken
Normal
No. Old New item number Parts name Q’ty
1
303NB94200 PARTS DRIVE UNIT SP
1
J49XX / J50XX / J51XX / J600X (1/9)
