TASKalfa 3500i - J0501 to 7; J0523 to 7 Misfeed JAM; If above code display, take action; Note: Check Roller Color Difference

To Next Page

To Previous Page

J0501 to 7 / J0523 to 7 (Misfeed JAM)

If above code display, take an action as referring to below procedure.

a. If JAM paper or printout paper is like a Fig.1, replace the Roller of the Primary Feed.

* The maintenance cycle for Primary Feed is 150K.*

b. Please adjust the pressure of the retard pulley based to the flow chart in next page if misfeed

occurs.

Affected Model :4500i,5500i,6500i,8000i

◆ Note ---- * Check the color of Roller to find the Old and New difference at the Primary Feed.

*Rubber color : Black *Rubber color :Gray

・Feed-Roller 302K906350 PULLEY FEED 2AR07230 PULLEY SAPARATION

・Retard-Roller 302K906360 PULLEY RETARD 302K906340 PULLEY RETARD

・Pickup-Roller 302K906370 PULLEY PICKUP 302K906340 PULLEY RETARD

Refer to the service bulletin No. 2LC-0003(B105) for the detail information for Roller.

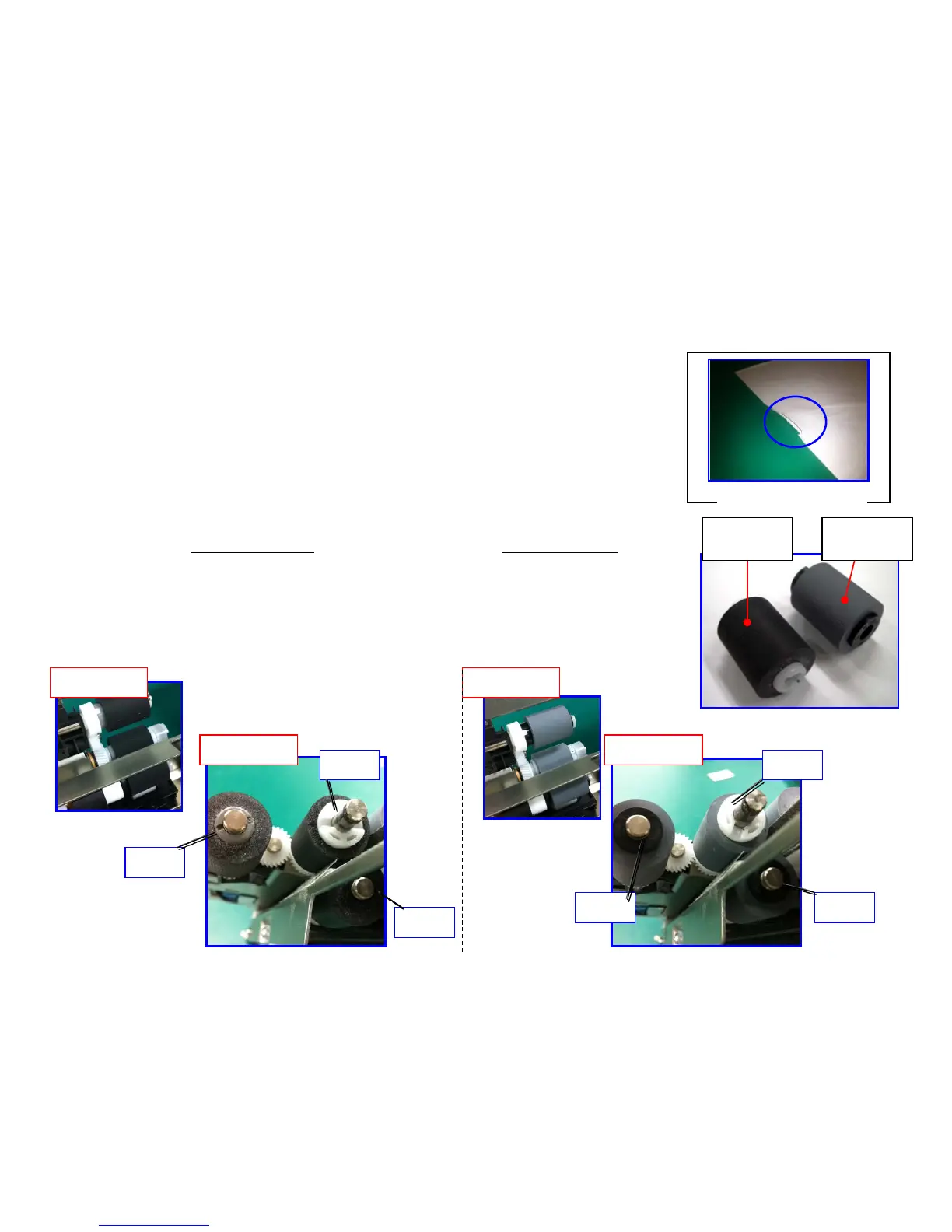

Fig.1 JAM Paper

Rubber

color :Black

Rubber

color: Gray

NEW OLD

Gray

Black

White White

Black Black

J0501 to 7 / J0523 to 7

( Misfeed)
