TASKalfa 3500i - J421 X Fuser Exit Sensor Stay Jam; In case of J421 X occurs, check fuser guide shape

J421X(Fuser exit sensor stay jam)
【Service Bulletin】
2K9-0021(C155)
【Permanent support】
Exit guide rib shape change + fixing cover ribs added
Sept 2013 - production: corresponding time
Item Number Item Name
302K994C40 PARTS CUT-WASHER 6 SET SP
＊Set bundling 2 pcs of the cut
washer
In the case of J421X occurs, check the fuser guide shape of the fixing, it will be required the following.
排出ｶﾞｲﾄﾞ形状 対応方法
ｶｯﾄﾜｯｼｬｰを以下支点部に追加して下さい。
・機械前側支点部：1枚
・機械後側支点部：2枚
ｶｯﾄﾜｯｼｬｰを以下支点部に追加して下さい。
・機械後側支点部：2枚
For 6500i/8000i

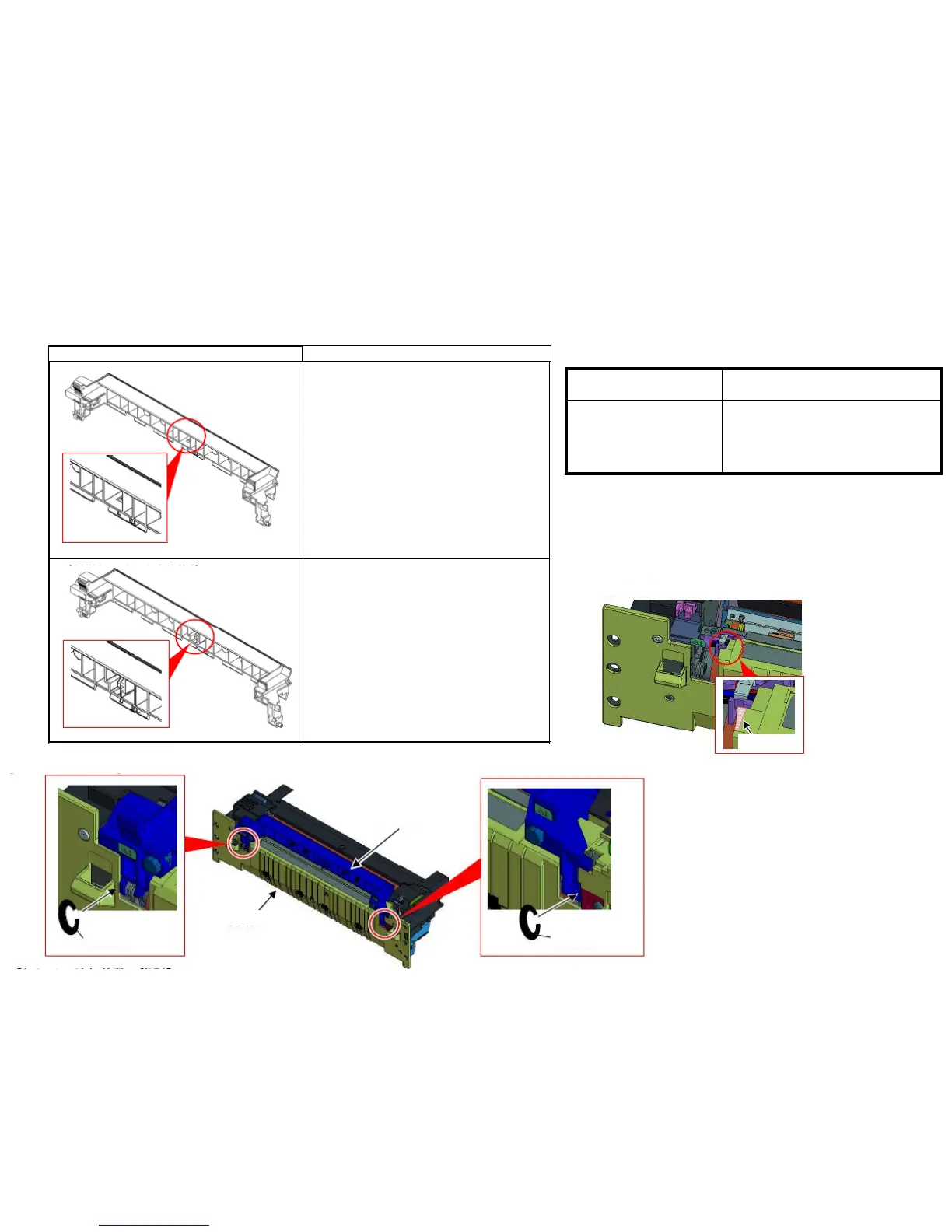

Shape of Fuser exit guide
How to respond
Added 2 cut washers to the fulcrum of the
fuser exit guide.
・Machine front fulcrum:1pc
・Machine back fulcrum:2pcs
Please add to the fulcrum below the cut
washer.
・Machine back fulcrum:2pcs
New Fuser Cover
Cut washer mounting position
Cut washer
Exit guide
Cut washer
Fuser cover
Add rib
