TASKalfa 3500i - J341 X; If J341 X occurs, take the measure

PF-780
If J341X occurs, take the measure as referring to
the following.

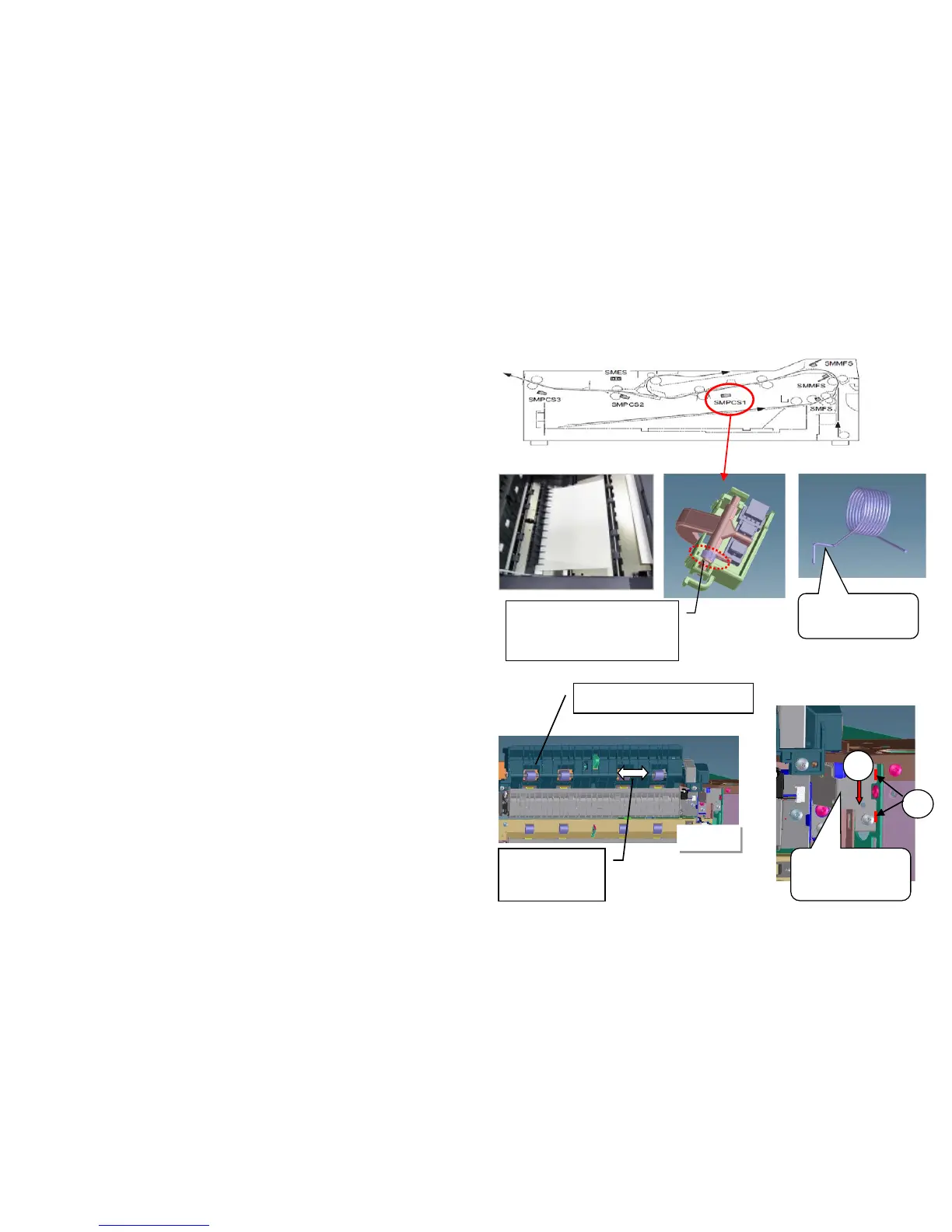

If the ACTUEATOR of SMPCS1 is slow to return to the
home position, it occurs.
a. Replace the actuator spring with 303NL06510
SPRING ACTUEATOR PI
b. If PF-730 for the 6
th
/7
th
cassette is installed and after
replacing the above spring, JAM still occurs, check
whether the 303NF06100 ROLLER CONVEYING VF is
moving the thrust direction.
If the movement of unit is heavy, re-install the 303NJ31040
PLATE DECK JOINT located at right side while making the
edge of (1) contacting with FRAME REAR, shift lower
direction of arrow (2).
Shape of
modified spring
Shift it
smoothly this
thrust direction
ROLLER CONVEYING VF
１
２
303NJ31040
PLATE DECK
JOINT
Refer to service bulletin No. 3NJ-0001（B354）for the detail
Affected machines：After 2011 Oct. production
Refer to service bulletin No. 3NL-0001(C059)for the detail
Affected machines：After 2012 Feb production
J341X
Replace with
303NL06510
SPRING ACTUATOR PI
PF-730
38
