TASKalfa 3500i - Corner Folding; 1. If it occurs at lower tray ejecting

1.If it occurs at lower tray ejecting, perform below a, b.
(at DF-770 install: A tray eject/ at DF-790 installed: A, B
tray eject)

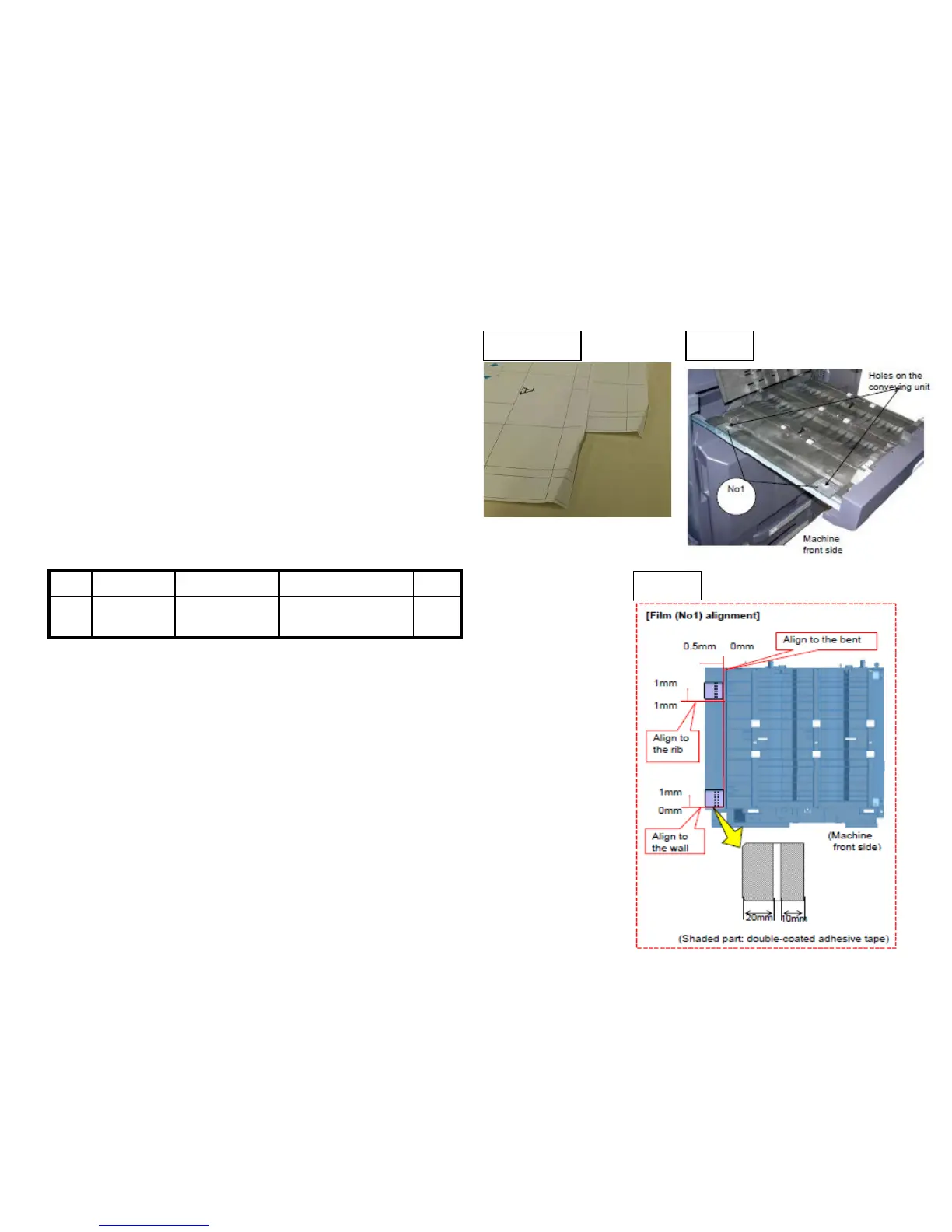

a. Add the films to the holes (2 locations )on the conveying
unit. (Fig.1)
Affix the film (No.1) to the designated location at fig after
cleaning where to affix it on the conveying unit. (Fig.2)
No. Old New Parts No Parts name Q’ty
1 302LF28820
2LF28820
SHEET RERAY
LOWER
2
Sample1 Fig 1
Fig 2
【Service bulletin】 2LC-0034(B395)
■ Take the measure at the production machines after 2011 Nov.
If Corner Folding occurs at paper, check below item.
Corner Folding (1/6)
