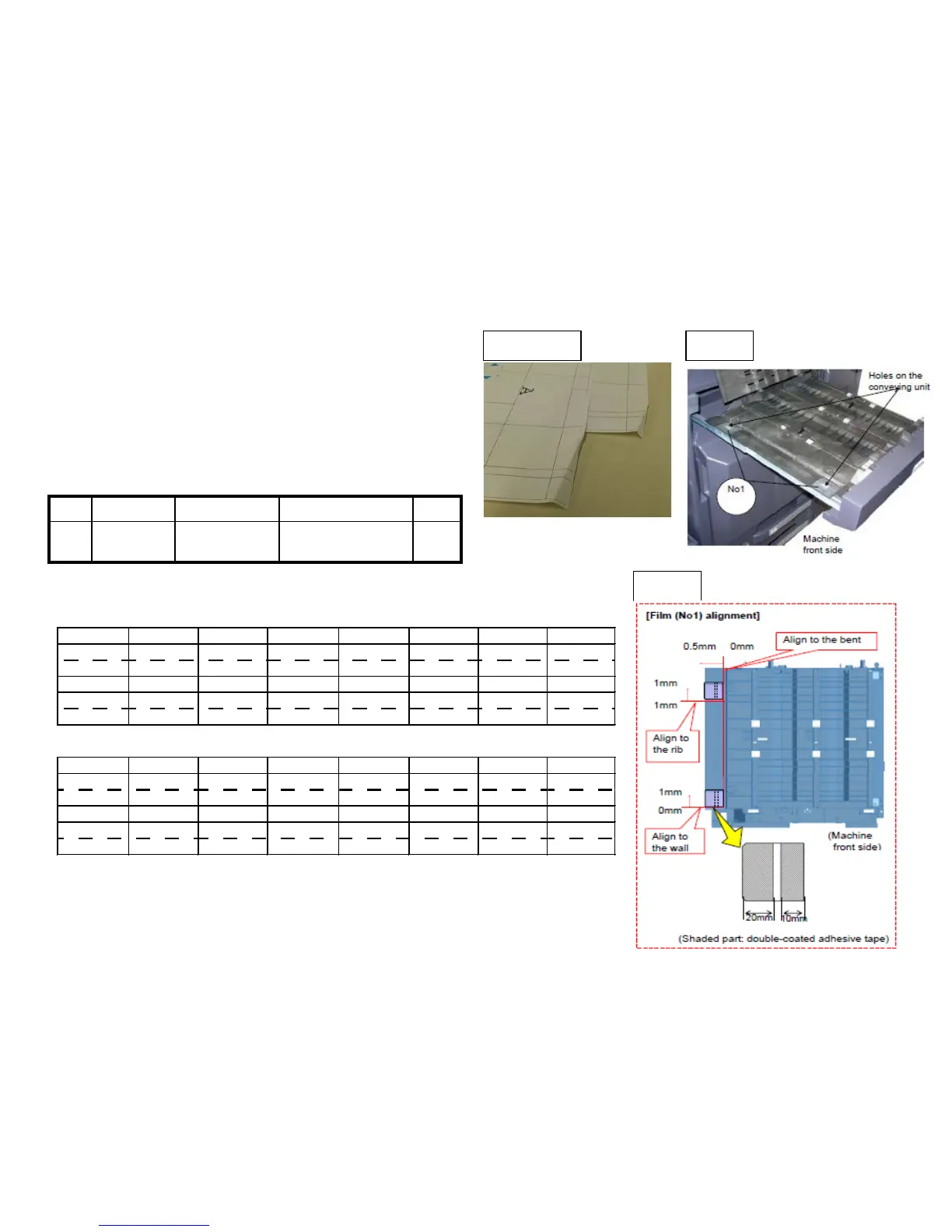

TASKalfa 3500i - J6100; J6110 (DF); 1. Add films to holes on conveying unit

1. Add the films to the holes (2 locations )on the conveying
unit. (Fig.1)
Affix the film (No.1) to the designated location at fig after
cleaning where to affix it on the conveying unit. (Fig.2)
No. Old New Parts No Parts name Q’ty
1 302LF28820
2LF28820
SHEET RERAY
LOWER
2
Sample1 Fig 1
Fig 2
【Service bulletin】2LC-0034(B395)
■ Affected machine’s serial number is below
If J6100/J6110 occurs, check the following item 1 to 3.
J6100 / J6110 (DF) (1/6)
8000i (2LF)
▲KDJ ▲ KDA ▲ CPY KDA GSA KDBR ▲KDA 220V ▲ KDE ▲UTA X
1102LF9JP0 1102LF2US0 1102LF2CS0 1102LF2US1 1102LF2BR0 1102LF4US0 1102LF3NL0 1102LF3UT0
N4N2100074 N4P2100809 NHE2100219 NLP NextPdct NextPrdct NHF2100013 N4Q2100481 N4S2100111
▲OLIVETTI KDA U KDCN ▲KDKR ▲KDTW KDSG
1102LF3LV0 1102LF3AS0 1102LF3KS0 1102LF3KR0 1102LFTTW0 1102LF3SG0
NK12100036 NextPrdct NextPrdct NMQ2100022 NJQ2100002 NextPrdct
6500i (2LG)
▲KDJ KDA CPY KDA GSA KDBR ▲KDA 220V KDE UTAX
1102LG9JP0 1102LG2US0 1102LG2CS0 1102LG2US1 1102LG2BR0 1102LG4US0 1102LG3NL0 1102LG3UT0
N4T2100122 N4U1Z00959 NHG1Z00248 NLQ NextPdct NextPrdct NHH2100014 N4V1Z00575 N4X1Z00236
▲OLIVETTI KDA U KDCN ▲KDKR ▲KDTW ▲KDSG
1102LG3LV0 1102LG3AS0 1102LG3KS0 1102LG3KR0 1102LGTTW0 1102LG3SG0
NK22100037 NextPrdct NextPrdct NMR2100017 NJR2100003 NJL2100088
