TASKalfa 3500i - J49 XX; J50 XX; J51 XX; J600 X; 10. Check for broken ribs on conveying guide; 11. If JAM persists, replace conveying and relay exit units

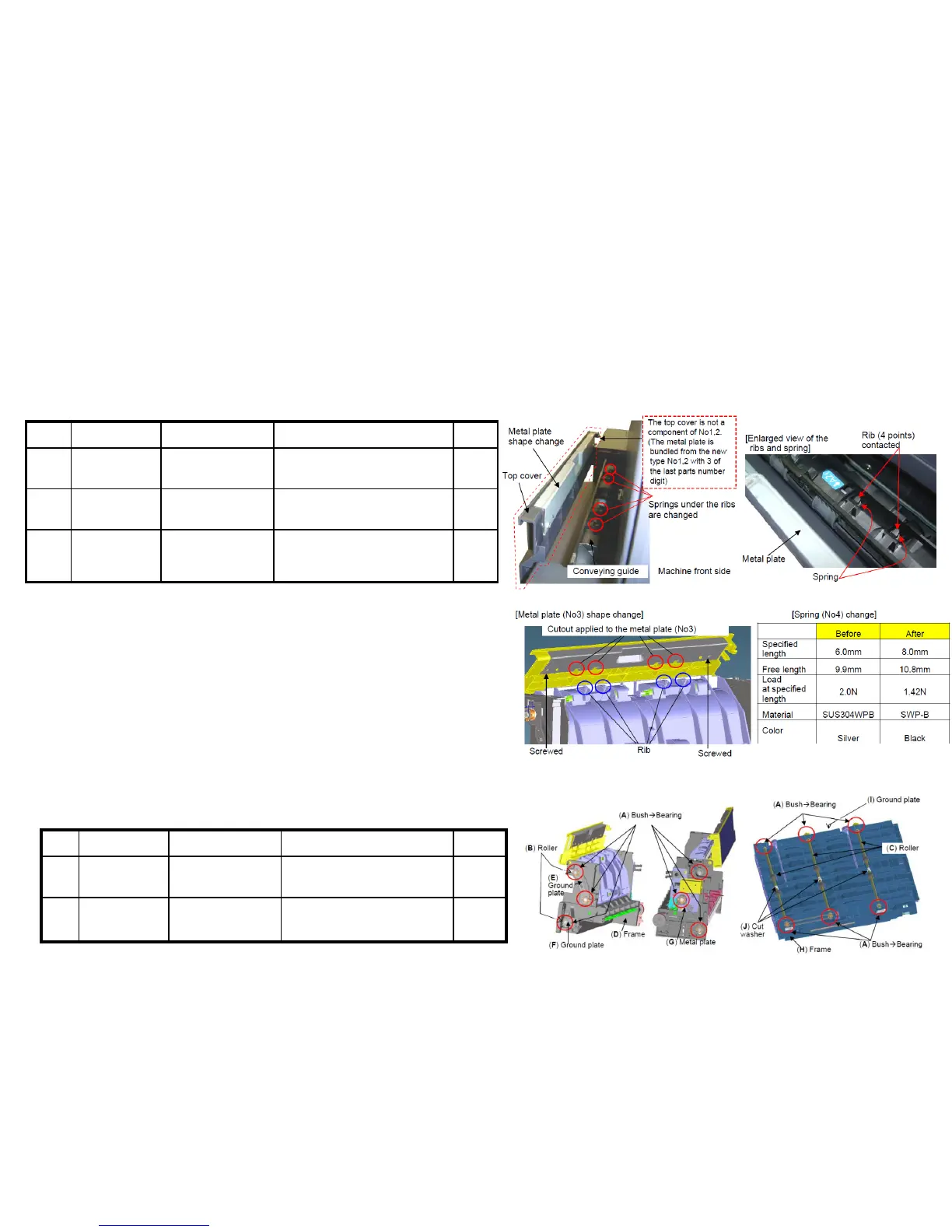

10.Check whether the rib (blue color round mark on the right fig) of the conveying guide of the bridge exit unit is broken
or not.
 In case of breakage, replace the below part No.1 to 3 as referring to the service bulletin “2LC-0068(C076)
11. After performing above items 1 to 10, JAM still occurs, replace the bridge
conveying unit, bridge relay exit unit.
*Bush ⇒ Bearing
No. Old New Parts No Parts name Q’ty
1
303NB94241
3NB94241
PARTS GUIDE UPPER
UNIT SP
1
２
303NB94174
3NB94174
PARTS RELAY EXIT SP
1
No. Old New Parts No Parts name Q’ty
1 303NB94174
3NB94174
PARTS RELAY EXIT SP 1
2 302LF28621
2LF28621
+PLATE REINFORCEMENT
EXIT
1
3 302LF28840
2LF28840
+SPRING-COMPRESSION
RELAY EXIT
4
【Service bulletin】2LC-0068(C076)
J49XX/J50XX/J51XX/J600X (9/9)
