TASKalfa 3500i - J49 XX; J50 XX; J51 XX; J600 X; 9. Check paper conveying guide fulcrum separation

To Next Page

To Previous Page

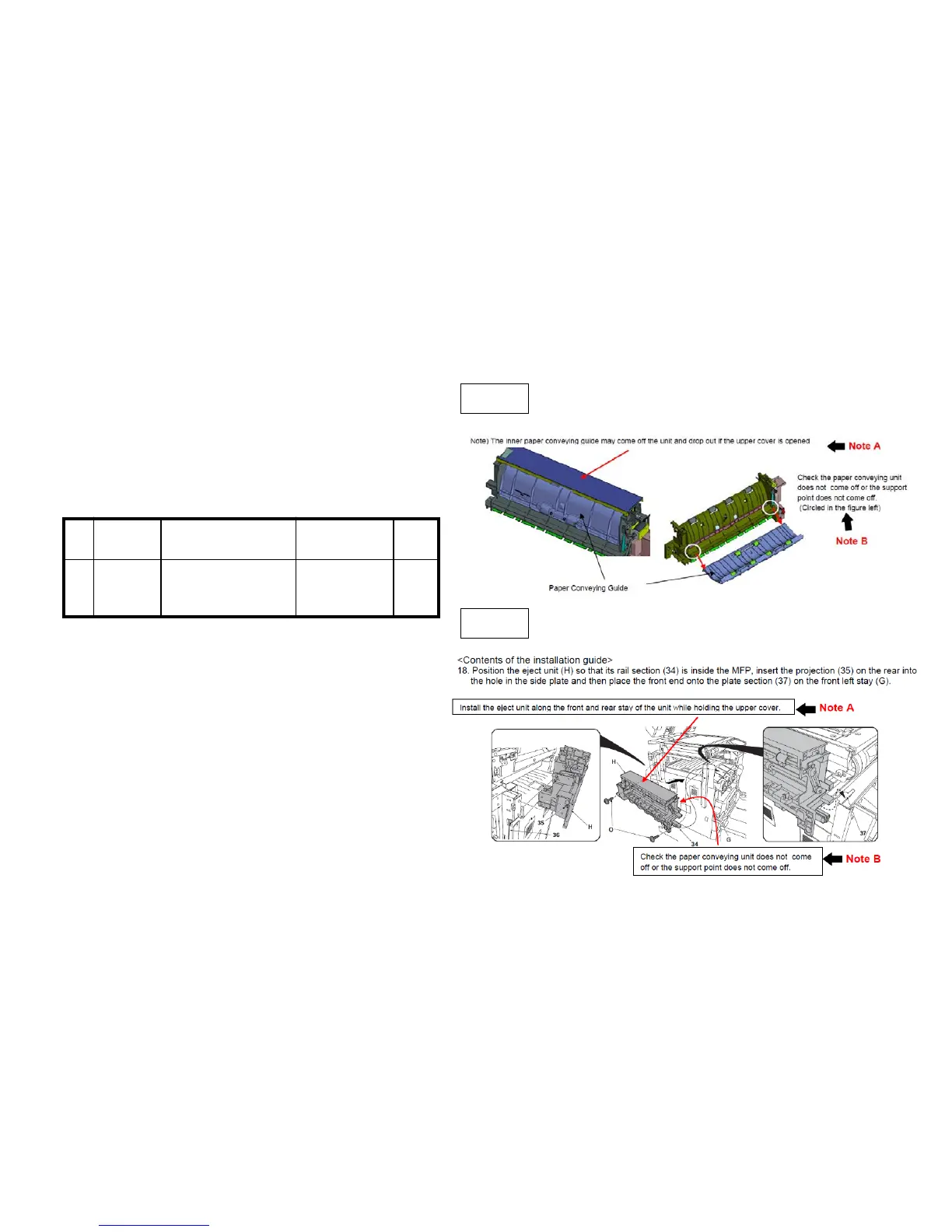

9. Check whether the check whether the paper conveying

guide fulcrum for the bridge exit unit has separated or not.

(fig.1).

 If it is separated, install the following parts （Fig 2)

a. install it to the front and rear stay while holding the upper cover

of exit unit.

b. Check whether the paper conveying guide does not come off and

the fulcrum parts is not separated.

Fig 1

№ Old New Parts Items Parts Name Q’ty

1 302LF28240

2LF28240

GUIDE

RELAY EXIT

RIGHT

【Service Bulletin】2LC-0015(B221)

Fig 2

J49XX / J50XX / J51XX / J600X (8/9)
