TASKalfa 3500i - SATA Cable Contact Failure; The SATA cable may have contact failure

C9500/C9510/C9520/C0630/C0640/CF245
SATA cable contact failure
The SATA cable (No.1 to 4) may have contact failure or may be broken if the service call error below appears.
Perform the corrective action below when it arises.
<Corrective action>
1) Check and perform the corrective action for each checkpoint as described in the service manual.
2) If the service call error still appears after the above action, the SATA cable may be broken and replace the
applicable cable.

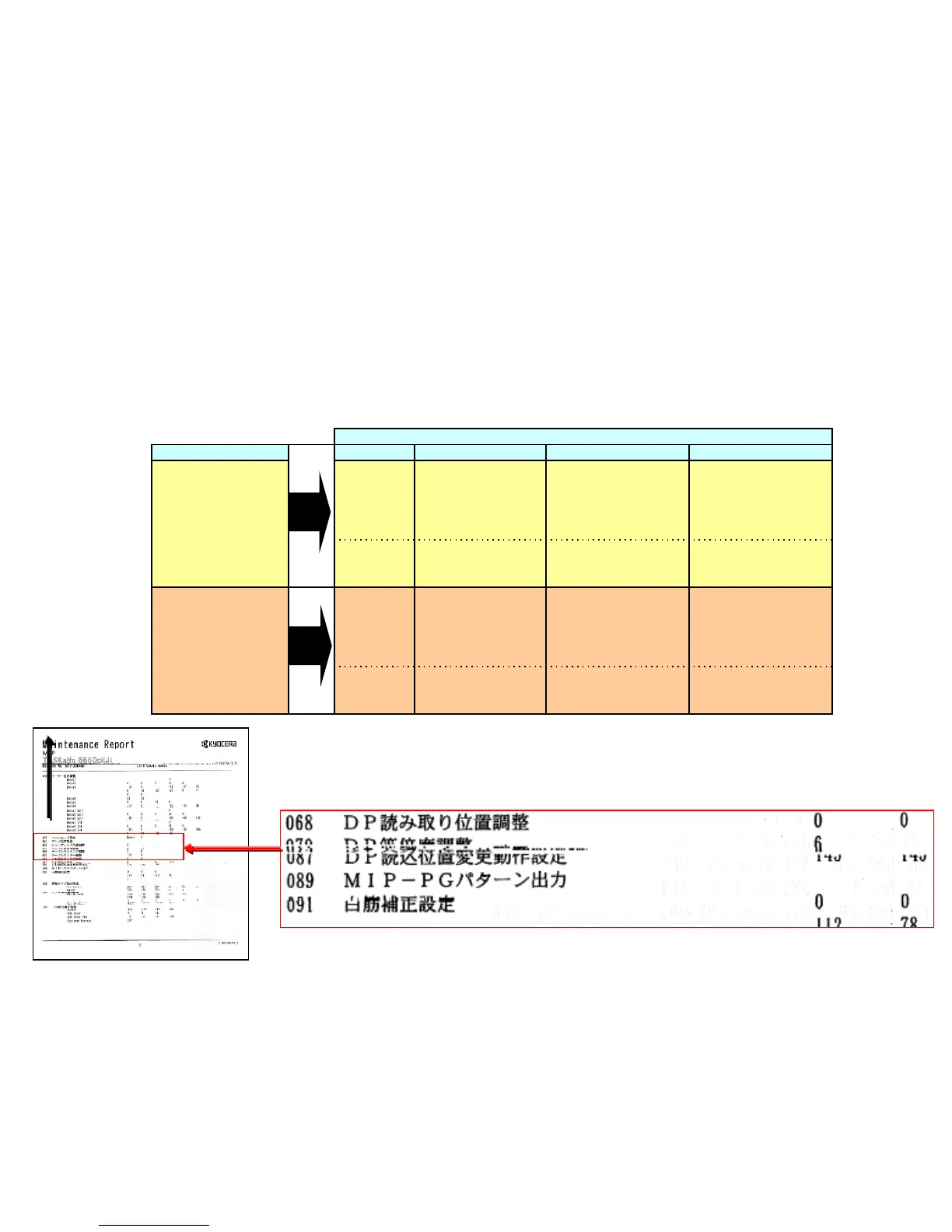

[Image block dropout] (example)
Feed
direction
【Service bulletin】2LC-077(C103)
SATA cable to replace
Content of failure No Parts No. Parts name Affected model
- C9500 error
- C9510 error
- C9520 error
- C0630 error
- Scanned image
block dropout (Refer to
below for the image
sample)
1 302K946700* WIRE CCD DATA
5550ci/4550ci/3550ci/30
50ci
5500i/4500i/3500i
7550ci/6550ci
8000i/6500i
2 303M446020
WIRE INTERFACE
VIDEO
7550ci/6550ci,
8000i/6500i
DP-771
- C0640 error
- F245 error
3 302K946A20* WIRE HDD DATA1
5550ci/4550ci/3550ci/30
50ci
5500i/4500i/3500i
7550ci/6550ci
8000i/6500i
4 302K946A30* WIRE HDD DATA2
5550ci/4550ci
7550ci/6550ci
8000i/6500i
