J0545 (Misfeeding JAM PF-770)
J0545 (no paper feeding JAM PF-770)
If J0545 occurs, take an action as referring to below procedure.
a. If JAM paper or printout paper is like a Fig.1, replace the Roller of the Primary
Feed. (Image sample 1)
b. Replace with 303NG94011 PARTS FEED UNIT SP if the production of
machine is before 2011 Dec.
c. At replacement, check or clear the count number of U901 Paper Feeding
Counter.
* The maintenance cycle for Primary Feed is 150K.*

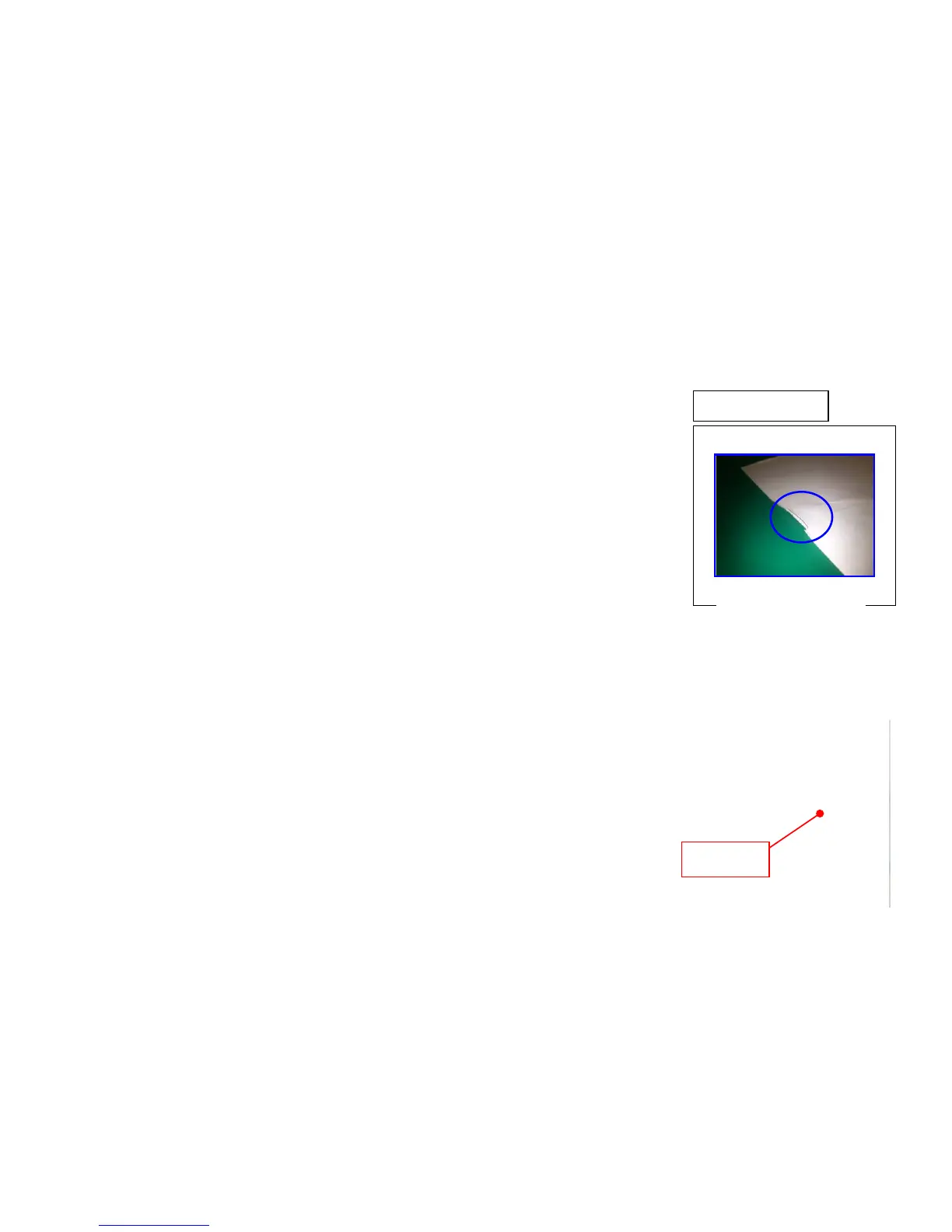

Fig. 1 JAM Paper
For the detail, refer to the service bulletin No. 3NG-004(C024)
Affected machines：After 2012 Jan production
Image sample 1
d. If the TRAY PAPER for paper loading was assembled by slanting condition,
there is possibility of JAM0545 occurring. In case of the problem, check it
according to the next page "Inclination check and recovering procedure of PF-
770 TRAY PAPER" and corrected.
(There is a possibility that J0545/0555/1305/1315 may occur.)
TRAY
PAPER
33
