1. If J1313/J1314 occurs, take the measure as referring to the following.

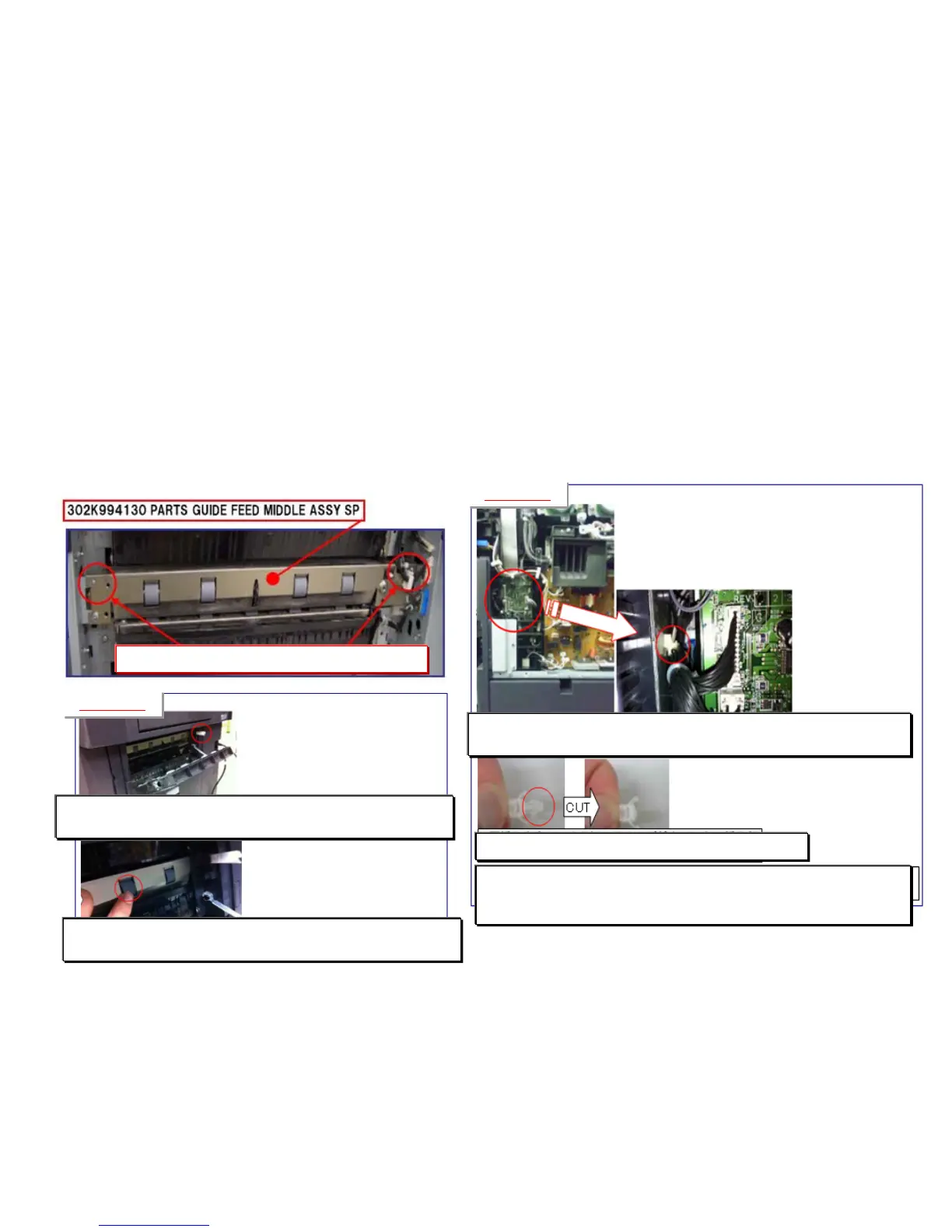

a. Check whether installing 302K994130 PARTS GUIDE FEED MIDDLE ASSY SP is proper.
The unit is not set properly, reinstall it.
b. Check whether 302K994430 PARTS ROLLER FEED LOW SP is rotating without power on the clutch.
* refer to the procedure-1
If the clutch is rotating, change the clutch cable wiring treatment. * refer to the procedure-2
c. If JAM is not solved after changing the clutch cable wiring, replace the 302K994130 PARTS GUIDE FEED MIDDLE
ASSY SP unit.
J1313/J1314
c. Push in the wires inside of the machine through the hole on the metal
plate where the wire fastener was fitted. *Then, take care the connector at
the feed drive unit side not to be loose.
b. Cut the snap-fit part not to refit after the measures
a. Remove the snap-fit wire fastener from the side plate that is fitted to the
machine frame in the feed drive unit.
Procedure-2
Procedure-1
Check this installation part whether properly fitted.
1. While opening the feed cover, turn on this SW
2. Execute U032 Check Clutch Operation to select “MOTOR”.
3. Check this roller is not rotated. *If rotating, the clutch is on without
operating.
