TASKalfa 3500i - Image Smudges; 5. Toner stain (Image sample A); 2. Toner stain at 20 mm from bottom edge (Image sample B)

128mm
118mm
Toner stain・Bottom edge toner stain
5. Toner stain occurs at the position shown in the right fig, please
take the following measure. (image sample A)
2. When toner stain occurs at about 20mm position from paper
bottom edge, please take the following measure. (image sample
B)
a. Replace the DV unit.(DV-6305/6705:
302LH93034/302LF93034)
a. Replace the DV unit. (DV-6305/6705:
302LH93034/302LF93034)

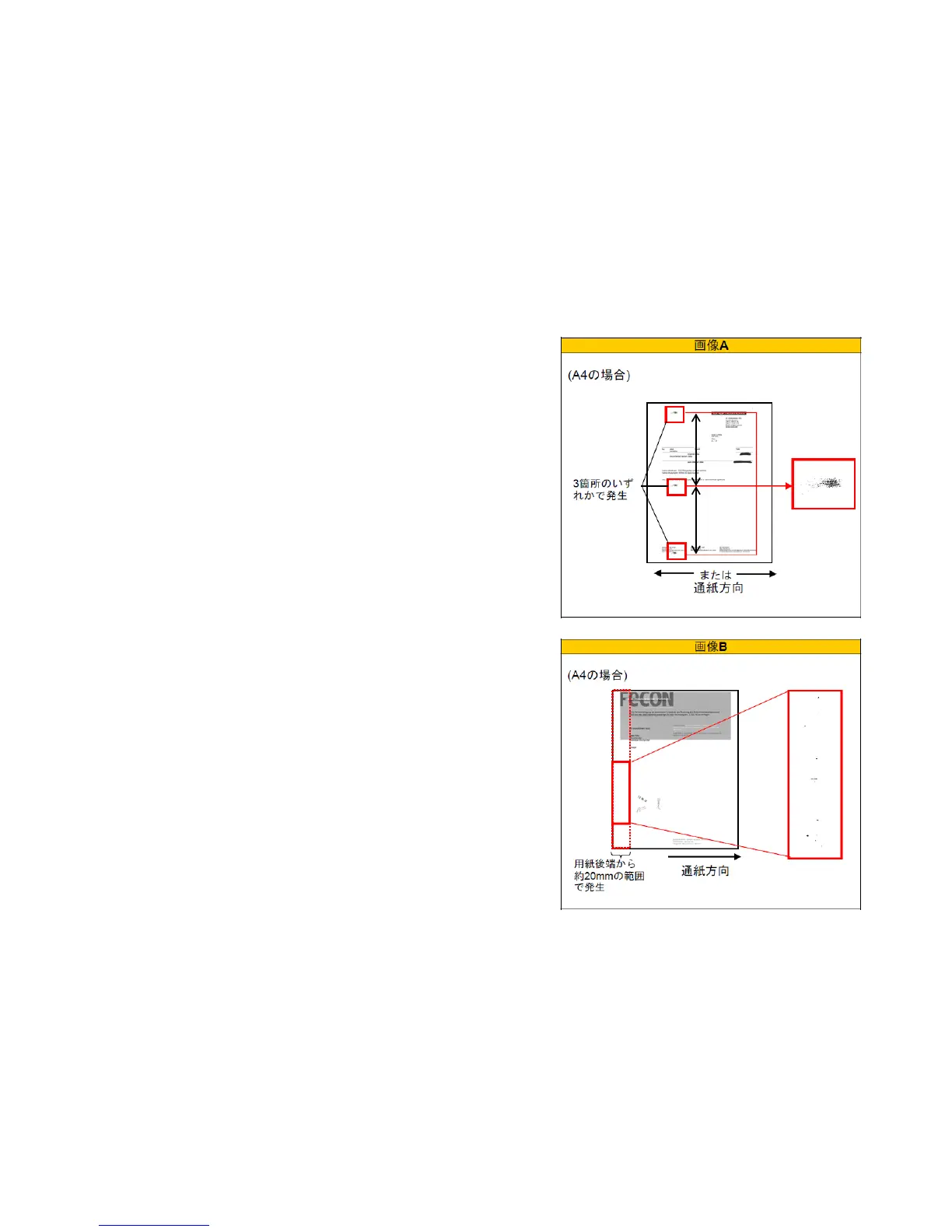

Image A
Image B
Feeding direction
Feeding direction
(In case of A4)
(In case of A4)
It occurs in
three
places of
either
It occurs in the
range of about
20mm from paper
bottom edge.
Image Smudges (13/13)
