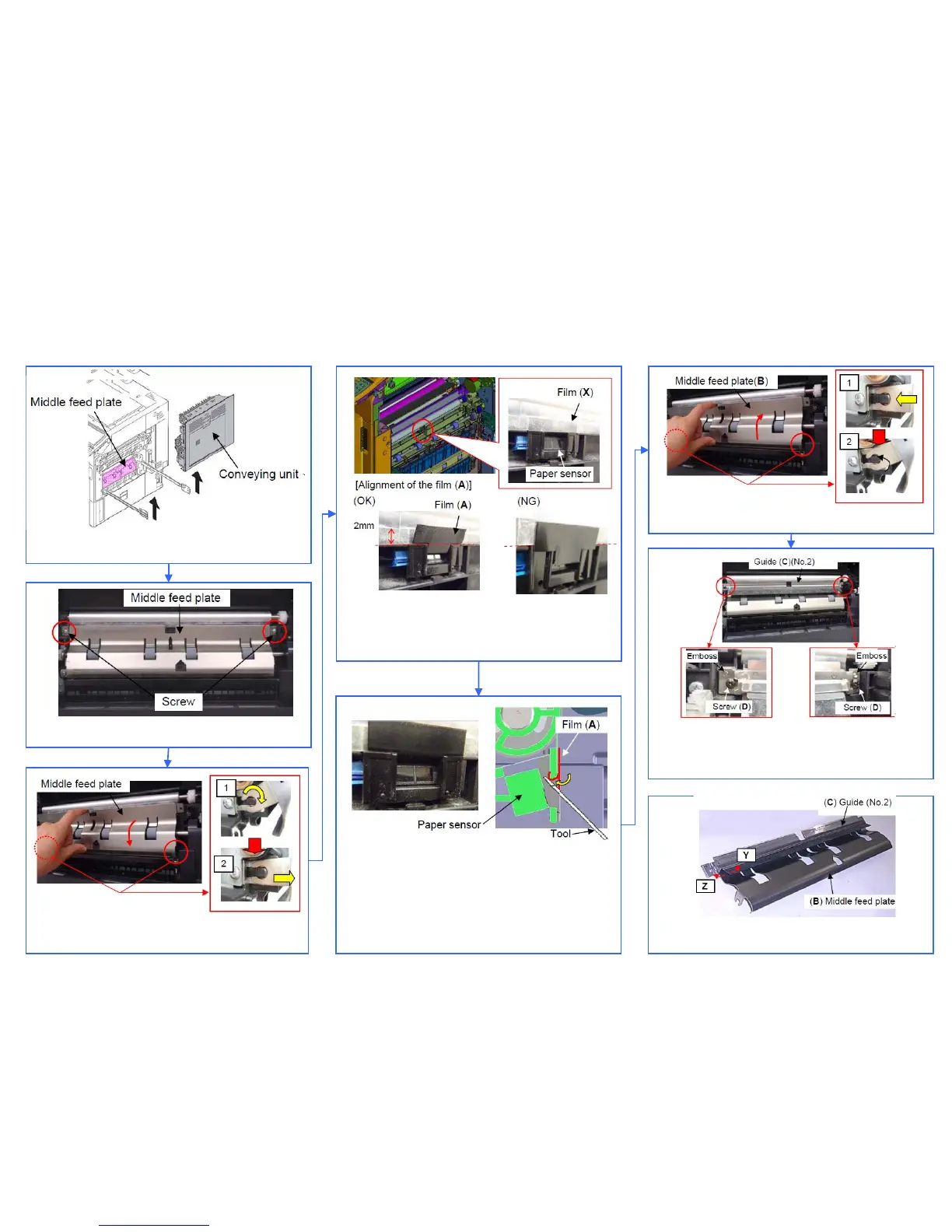

[The procedures to install the guide]
1. Remove the conveying unit.
2. Remove 2 of the screws that fix the middle feed plate.
3. Remove the middle feed plate after rotating it
downward as in the figure right.
4. Overlay the film (A) bundled in the parts set
(No.1) on the film (X) affixed on the paper senor as
shown in figure.*Clean where to affix the film.
Fold the leading edge of the film (A) and affix it
toward inner side using a flat-blade
screwdriver, etc.
[Note]
Take care of the tool not to touch the paper
sensor.
Securely fold the film or mis-sensing may occur.
<Note>
Check if the film is not warped toward Z before fitting the
guide (C) (No.2). If warped so, correct the warpage.
6. Fit the middle feed plate (B)
7.Put the guide (C)(No.2) on the middle feed plate (B) and
fix them with M3x10 screw (D)(Total 2 points)
*Check the guide (No.2) does not run over the emboss
Paper Creasing (2/2)
76
