6.4 Charger
6.4.2 Mounting of charger

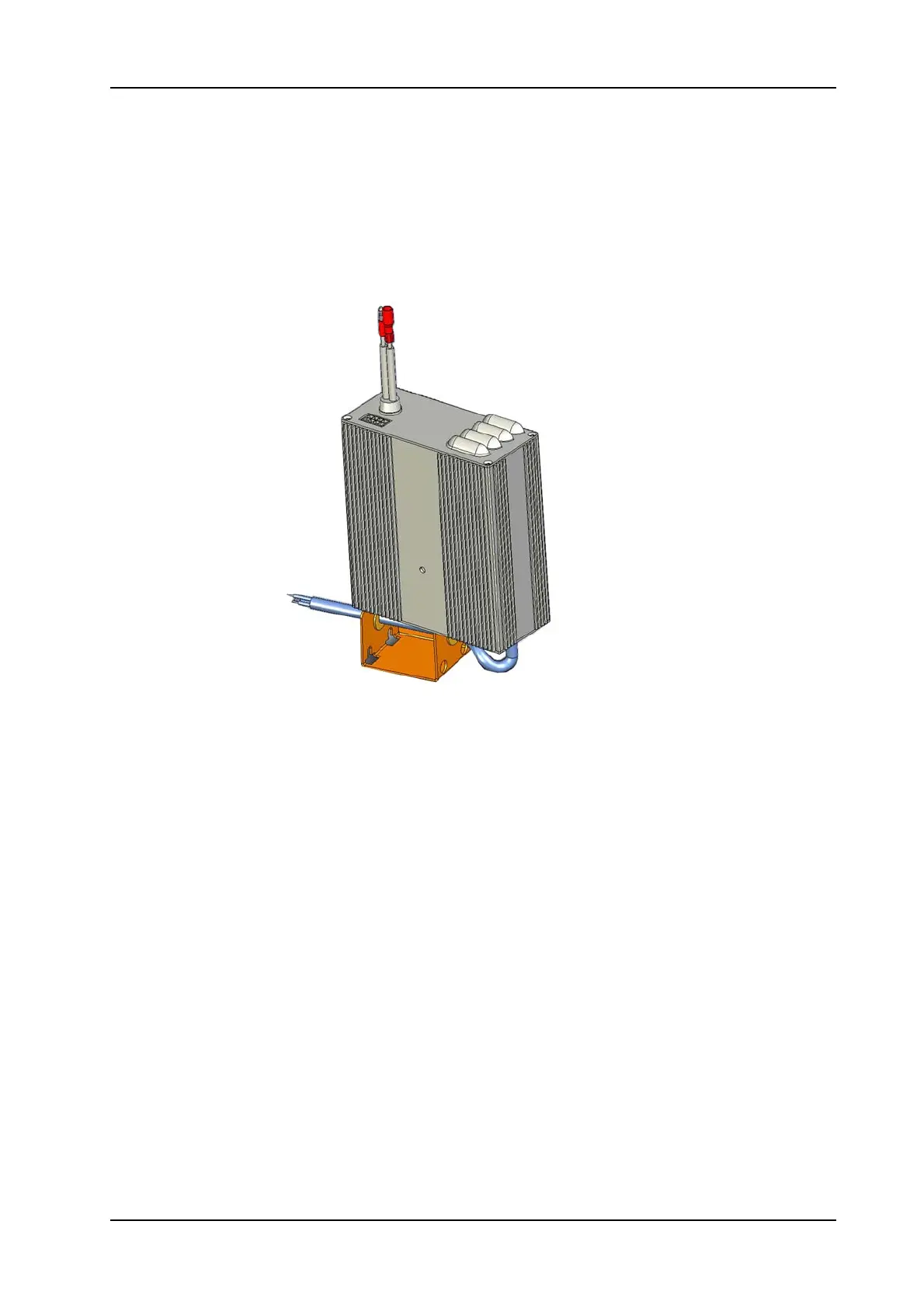

Picture 9: Charger
• Position charger and mount the screws.
• Thread in main cord and connect it to the connection block.
• Thread in battery wires and connect accordingly to the colours.
• Connect the communication cable to the charger.
• Close the battery compartment.
• Mount the screws for the battery compartment.
