5.6 Squeegee
5.6.10 Mounting of back blade new setup
• Position new back blade onto the pins of the squeegee inlet.
• Mount the squeegee inlet into the squeegee body.

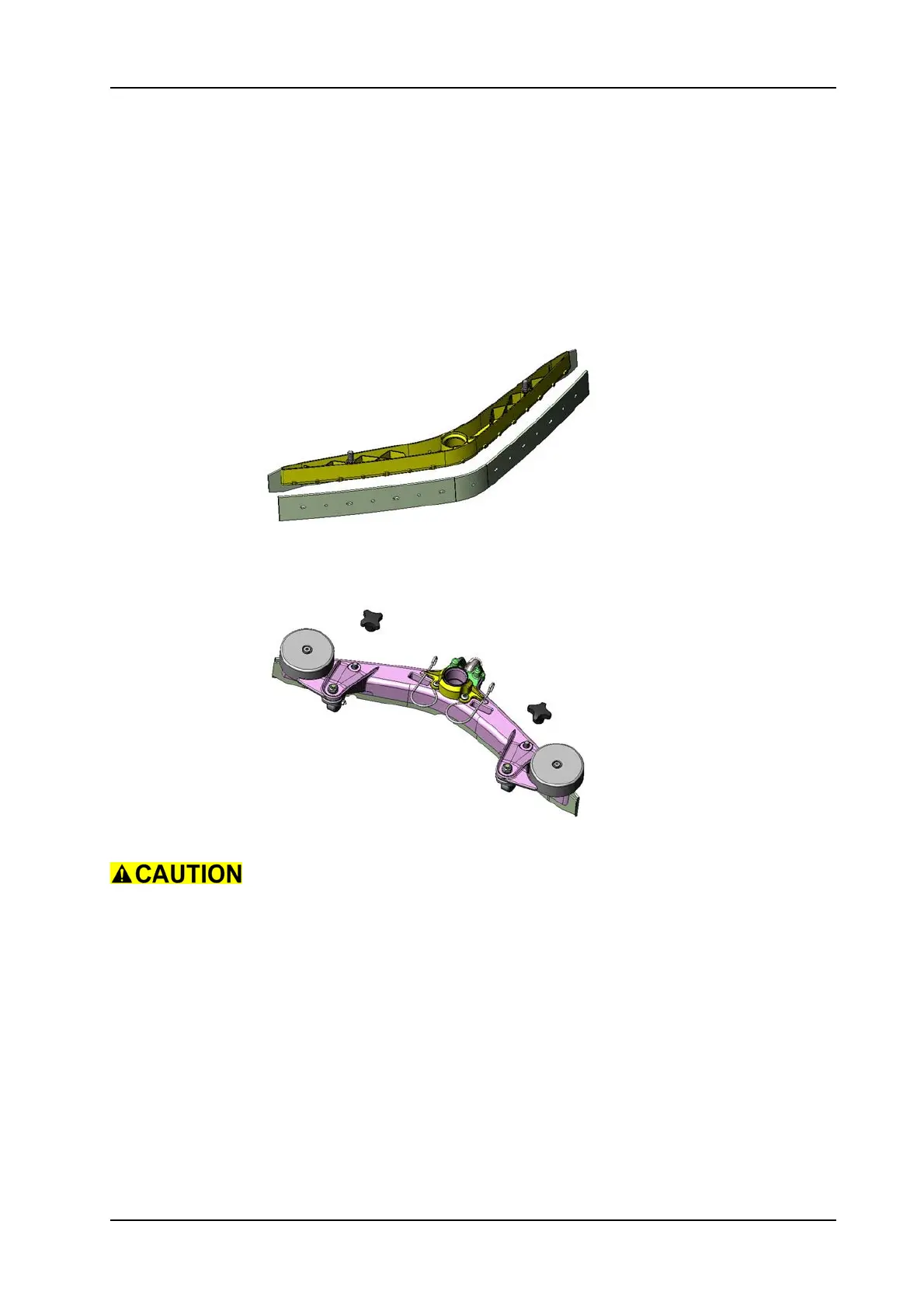

Picture 59: Back blade
• Mount the two star knobs and tighten them.
Picture 60: Star knob
Ensure that the blade is mounted correctly and the squeegee inlet fits
into the squeegee body.
