GTS Technical Manual
5. March 2013 Edition: V1.10/2013 6-14
Copyright © 2013, Diversey Inc.
06.20.11 charger - 455B_ 755B eco_755B power_855B power_V1.00.fm
6.4 Charger
6.4.1 Removing of charger

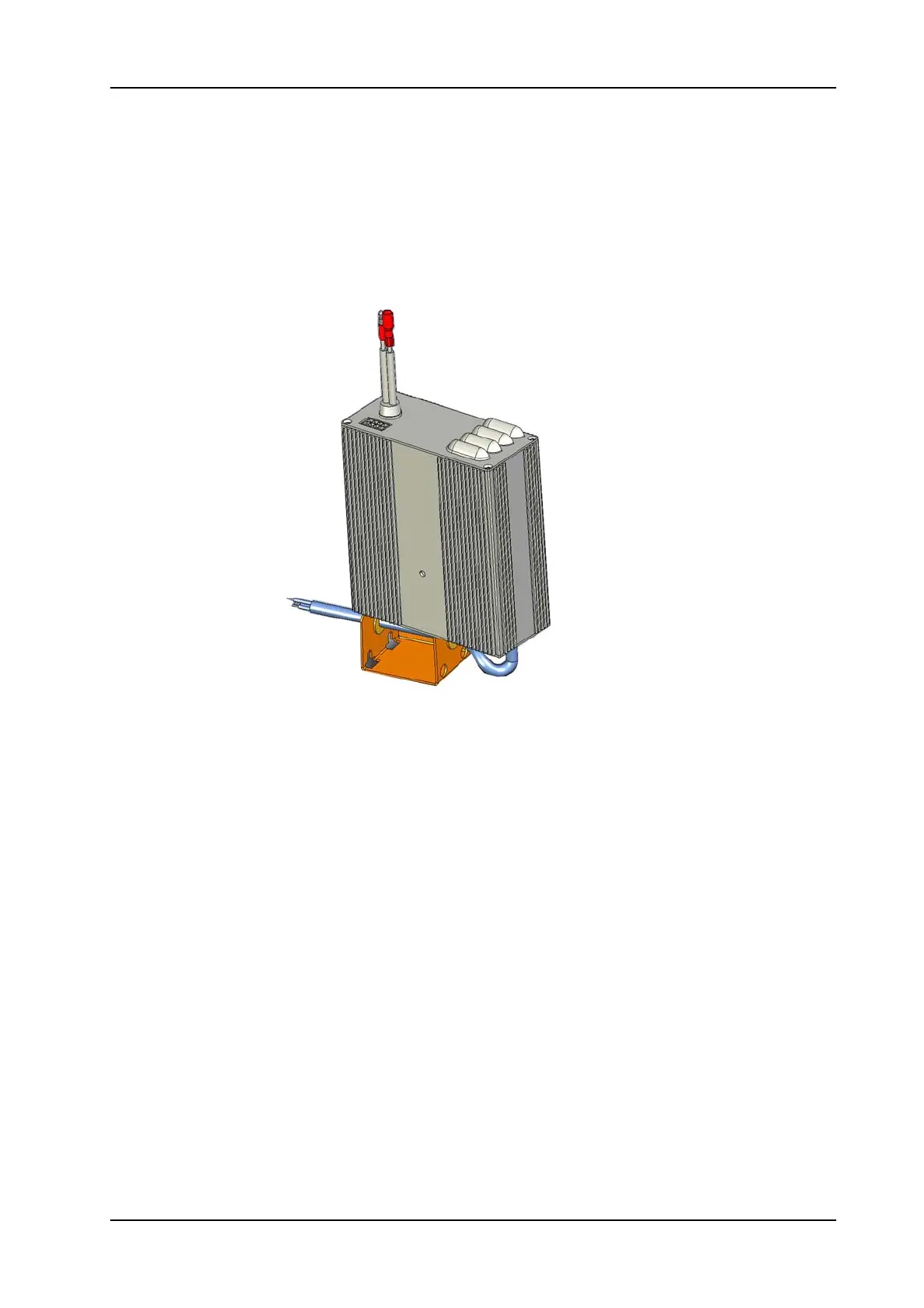

Picture 8: Charger
• Remove the screws (455B:02/122, 755B:09/114) for the battery
compartment.
• Open the battery compartment.
• Remove connector from the charger.
• Disconnect battery connection and thread out wires.
• Unscrew main cord from the connection bloc (455B:07/112,
755B:05/110) and thread out wires.
• Loosen the two screws (455B: 07/118, 755B:05/120) from the
charger (455B:07/116, 755B:05/117).
• Remove charger.
