5.6 Squeegee
5.6.1 Removing of fixation spring

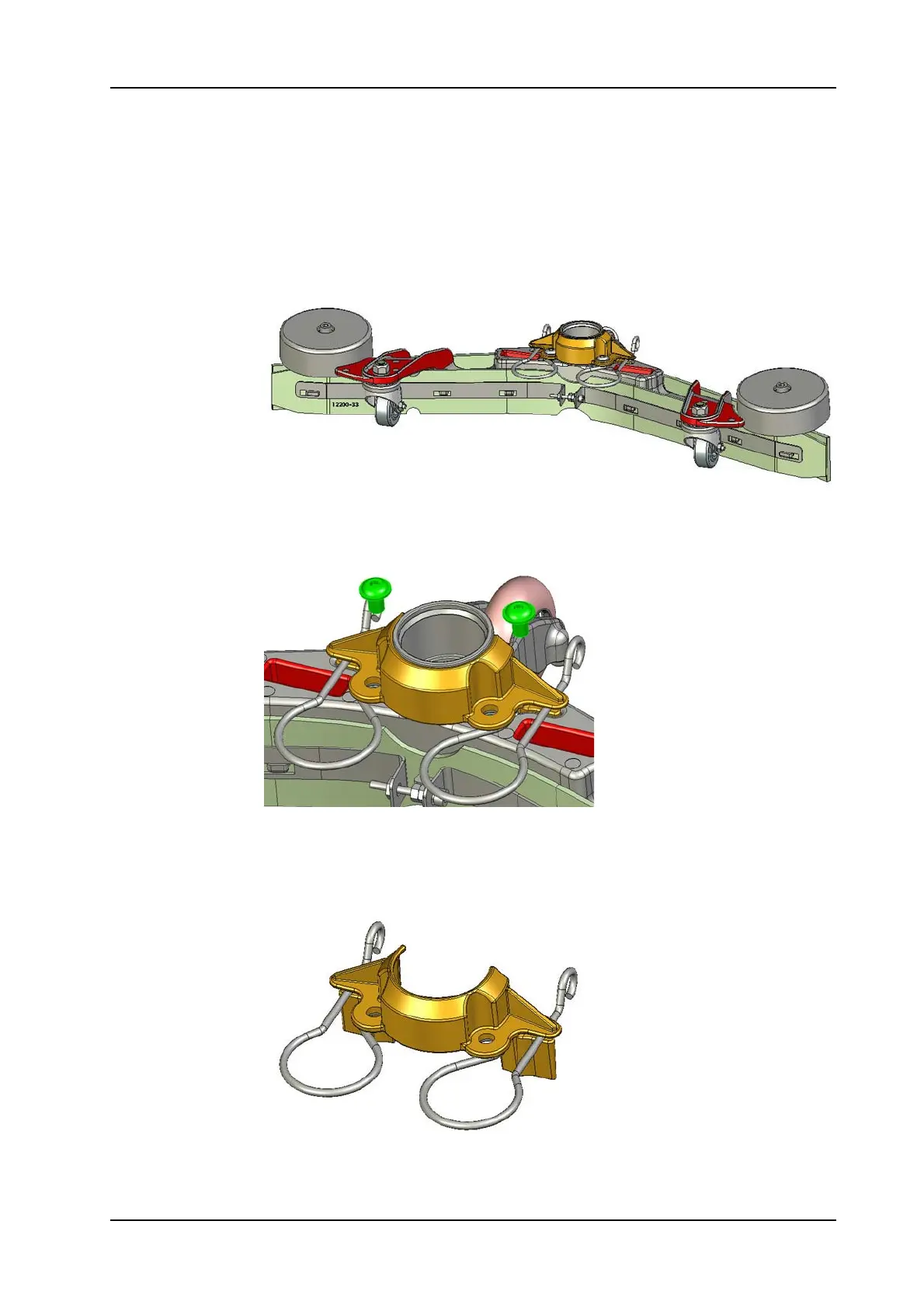

Picture 36: Squeegee
• Unscrew the 2 screws (455 & 755E:05/112, 755B:04/112) of the
offset fixation (455 & 755E:05/113, 755B:04/113).
Picture 37: Offset fixation screws
• Remove the offset and the spring.
• Remove the spring (455 & 755E:05/114, 755B:04/114) from the
offset.
Picture 38: Offset fixation detail 1
