GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-23
Copyright © 2013, Diversey Inc.
05.16.10 vacuum unit, water outlet - vacuum motor - 455B_455E_V1.00.fm
5.3 Vacuum unit, water outlet
5.3.2 Mounting of vacuum motor

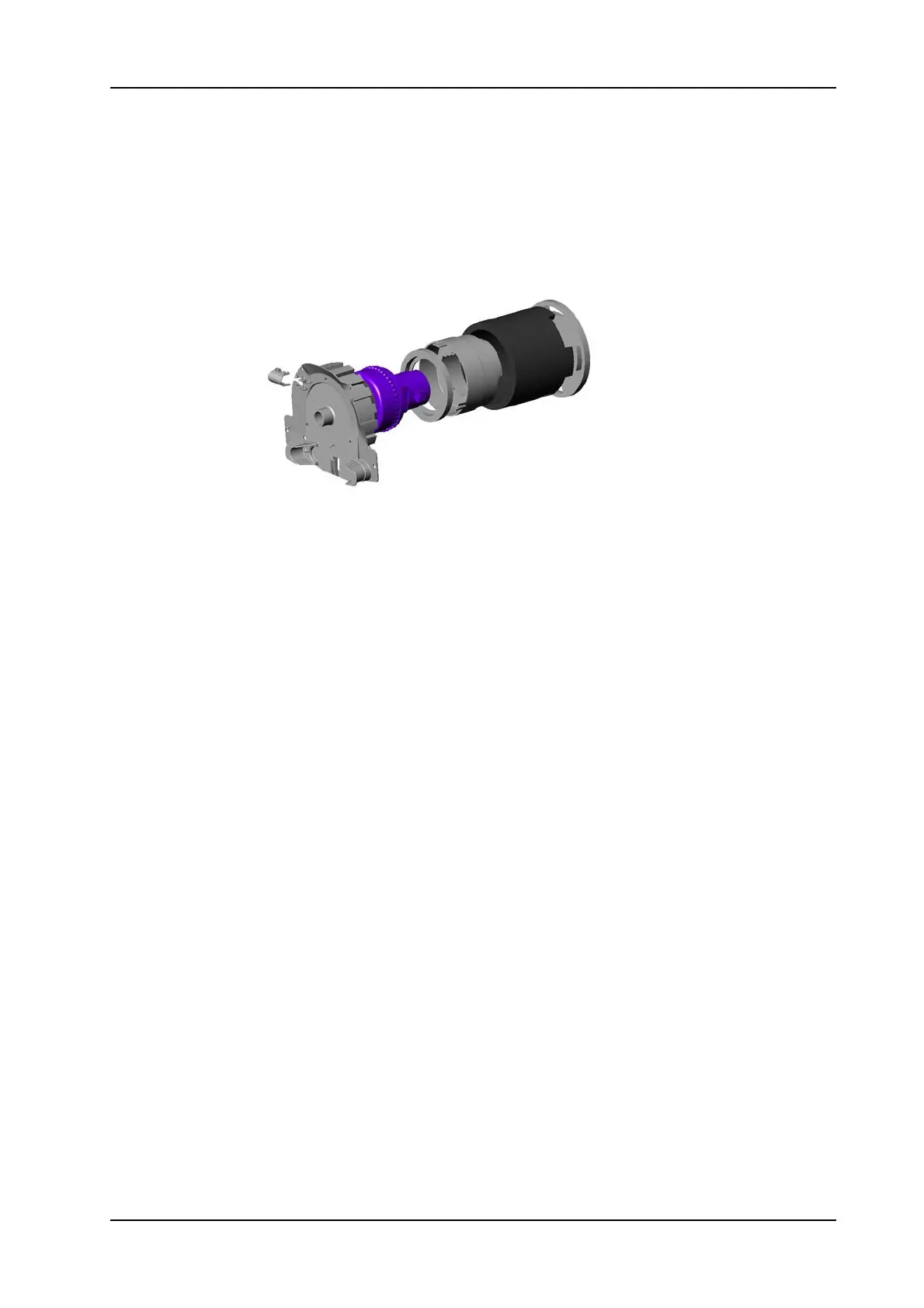

Picture 28: Vacuum unit detail
• Mount the insulation and sealing parts of the vacuum motor.
• Position the vacuum unit onto the cover and mount the 3 screws.
• Connect the cable on the connection bloc.
• Click in the cable cover.
• Position the complete vacuum unit back in to the clear water
tank.
• Mount the 5 screws from the cover, vacuum unit.
• Connect the two flexible hoses onto the tank cover.
Remarks
Thread in the cable through the sound damping insulation (03/108).
