GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-9
Copyright © 2013, Diversey Inc.
05.10.24 handle - toothrocker - 455B_V1.00.fm
5.1 Handle
5.1.7 Removing of toothrocker

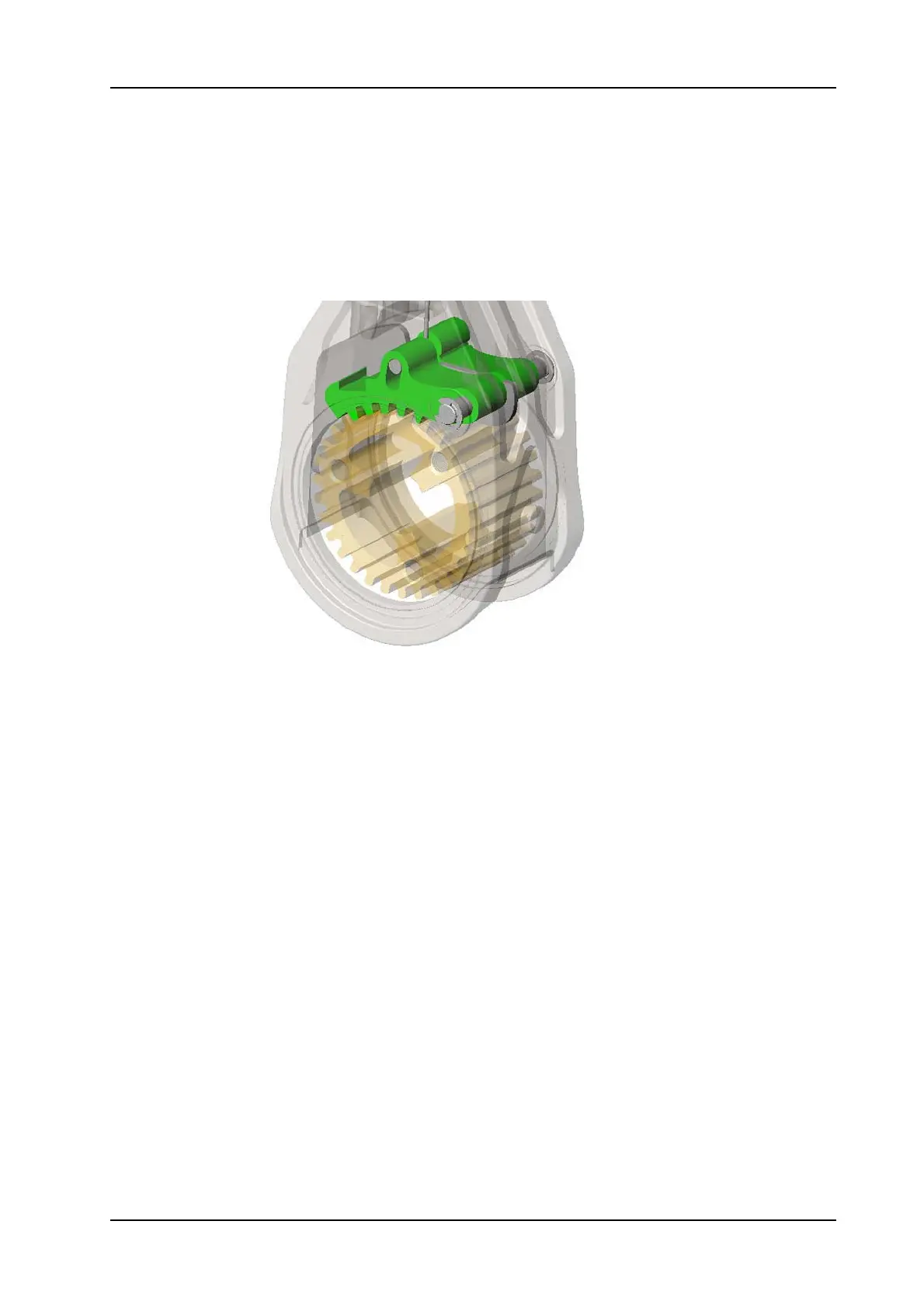

Picture 9: Toothrocker
Remarks
For a easier access to the toothrocker, disconnect the bowden cable
at the lever.
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove the eccentric shaft together with the end bolt of the
bowden cable according to chapter REMOVING OF HANDLE
ADJUSTMENT LEVER.
• Disconnect the two flexible hoses (02/106,132) from the tank
cover (02/101).
• Remove the tank cover from the recovery tank.
• Remove the 6 screws (01/150) from the cover disc (01/149).
• Pull out the complete handle from the fresh water tank (02/117).
