GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-10
Copyright © 2013, Diversey Inc.
05.10.24 handle - toothrocker - 455B_V1.00.fm

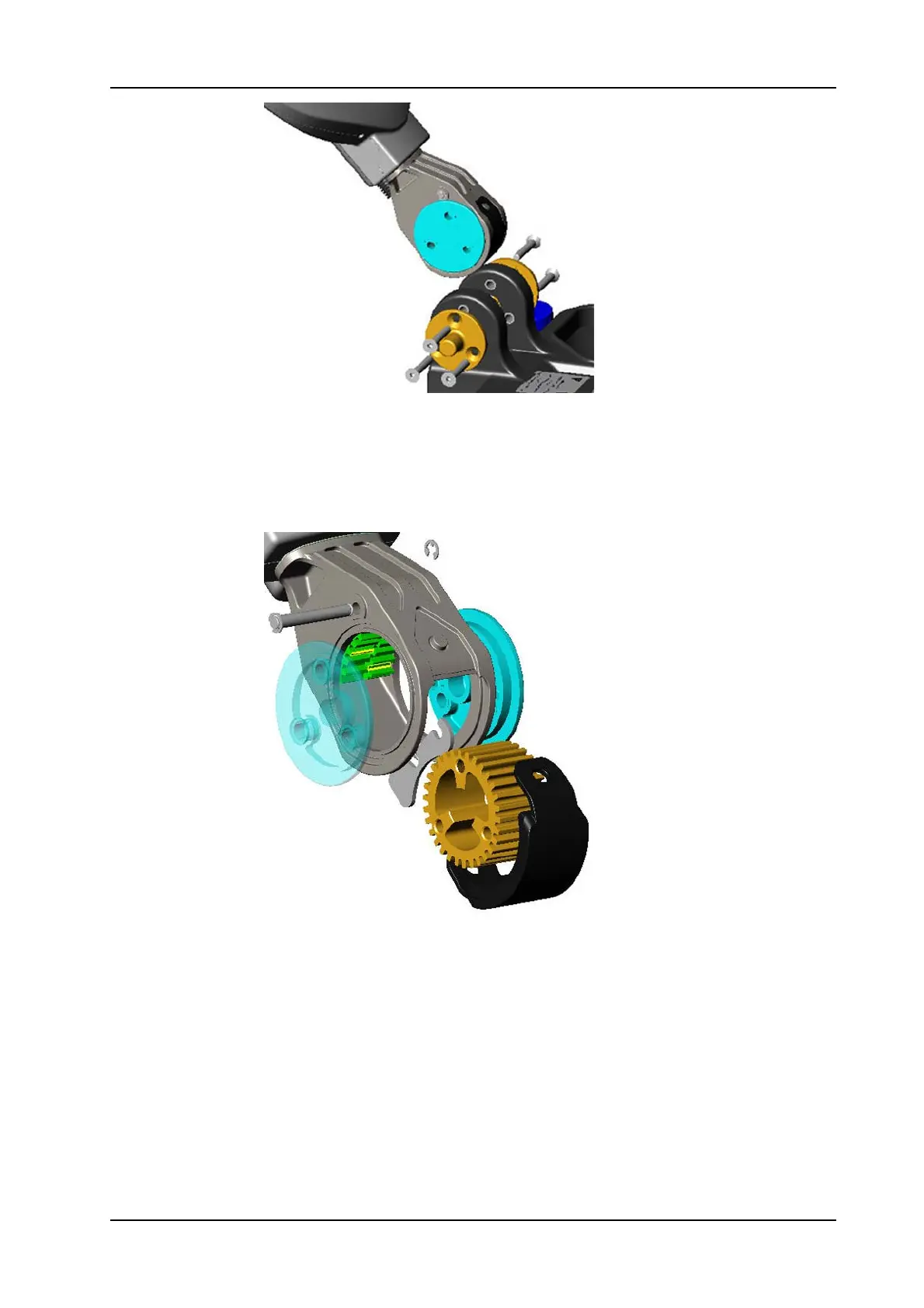

Picture 10: Sustaining disc
Remove the cover (01/152) from the articulation (01/144).
Remove the two sustaining discs (01/147) from the articulation.
Remove the toothed wheel (01/151).
Remove one of the retaining washer (01/137) from the axle.
Remove the axle (01/142).
Picture 11: Articulation detail
Remarks
By pulling out the axle, the distance disc (01/140) will fall out by itself.
Remove the two toothrockers (01/139,141) from the axle of the
bowden cable (01/119).
Remove the two springs (01/138).
