GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-21
Copyright © 2013, Diversey Inc.
05.14.10 tank group - clear water tank - 455B_455E_V1.00.fm
5.2 Tank group
5.2.2 Mounting of clear water tank

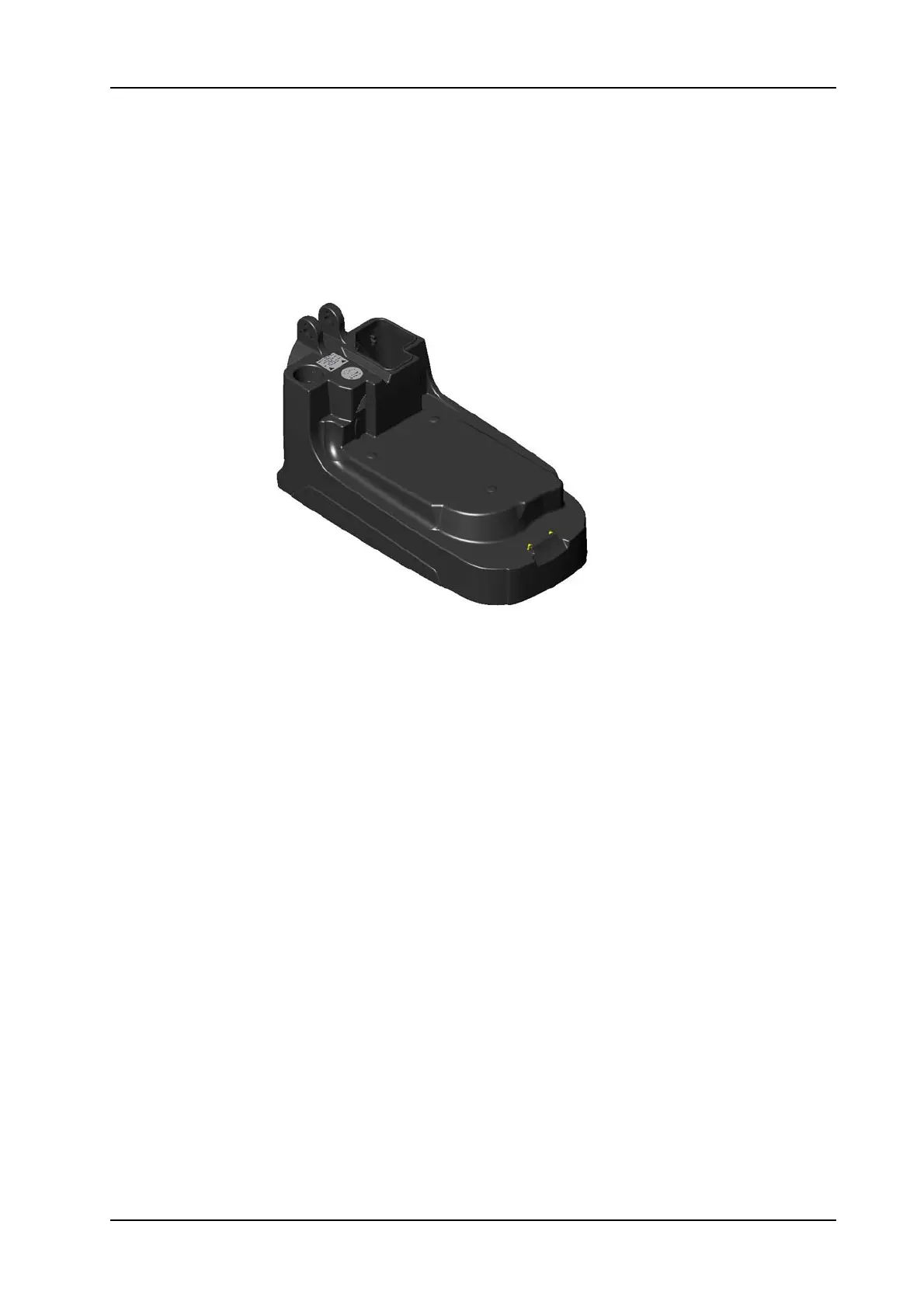

Picture 25: Clear water tank
• Position the recovery tank on to the tank axle.
• Mount the two screws from the tank axle.
• Mount the screw from the metal rope on the side of the clear
water tank.
• Close the clear water tank.
• Mount the screws from the tank brackets.
• Click in the cable cover.
• Mount the cover, vacuum unit together with the vacuum motor.
• Mount the 5 screws from the cover, vacuum unit.
• Mount the hose onto the water regulation set.
• Tighten the hose clamp.
• Position the recovery tank and tank cover.
• Connect the two flexible hoses onto the tank cover.
