5.1 Handle
5.1.5 Removing of handle adjustment lever

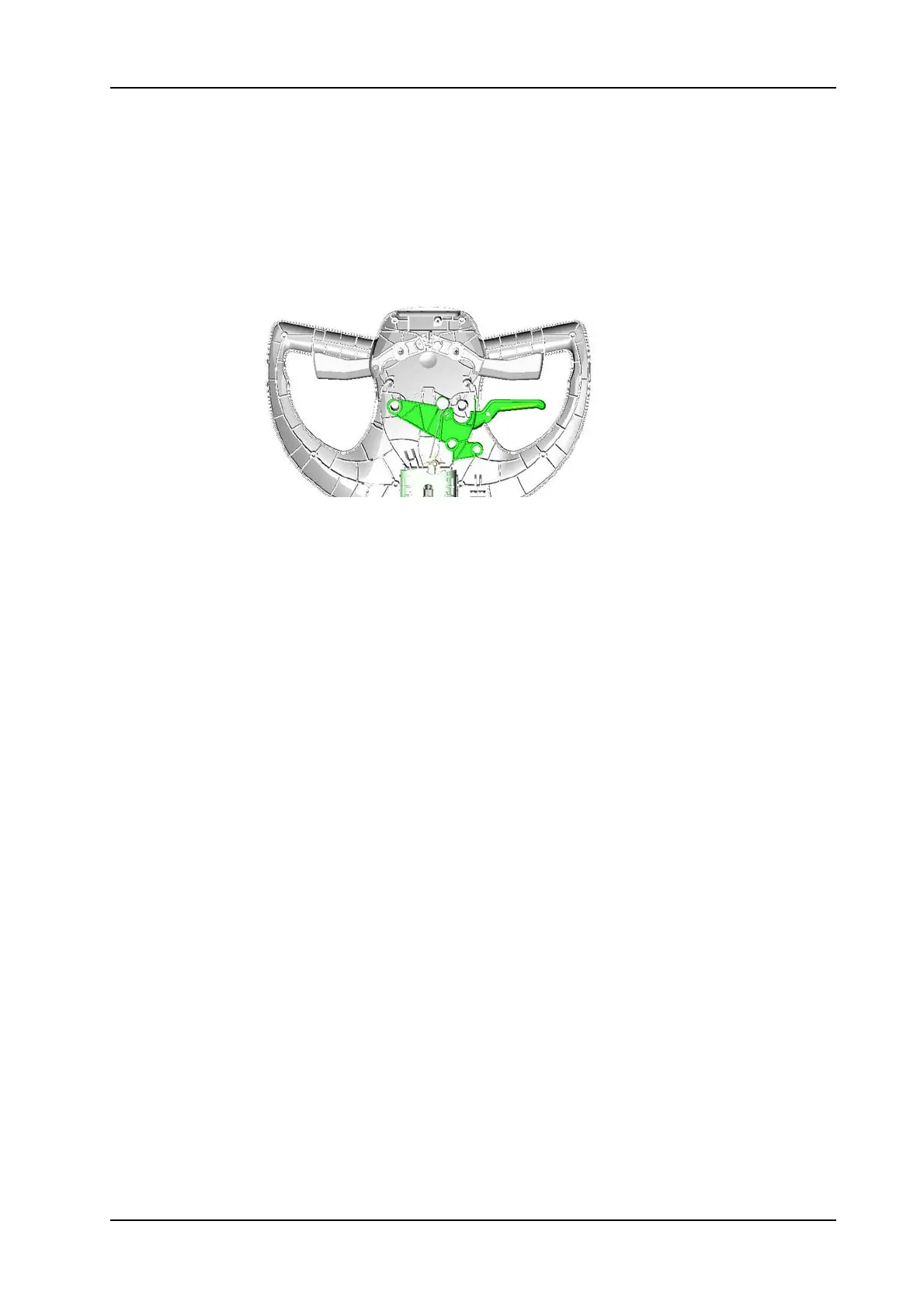

Picture 7: Handle adjustment lever
• Remove handle cover according to chapter REMOVING OF
HANDLE COVER AND ELECTRONICS.
• Remove the eccentric shaft (01/136) together with the end bolt
of the bowden cable (01/119).
• Remove the handle adjustment lever (01/116).
