5.6 Squeegee
5.6.2 Mounting of fixation spring

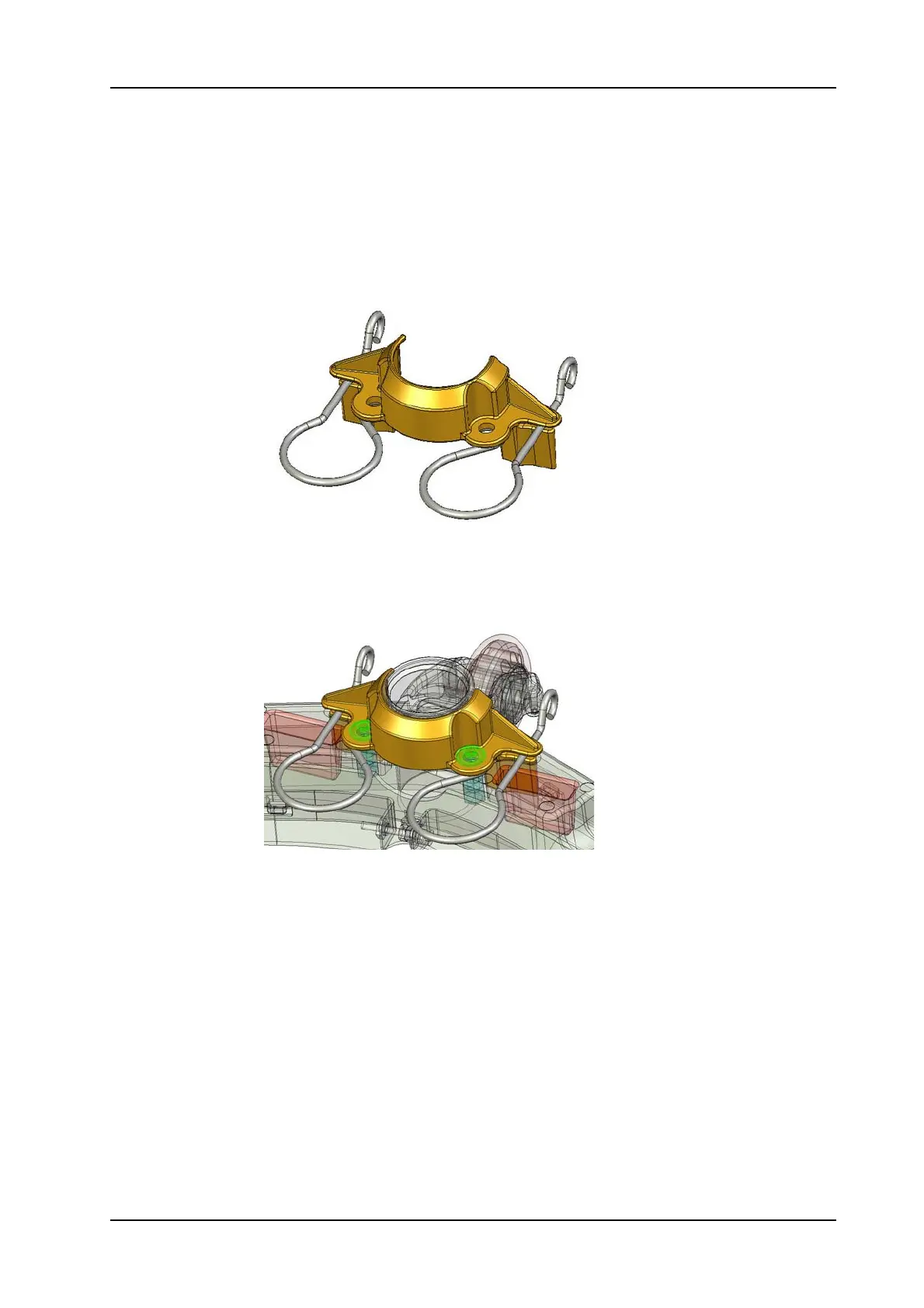

Picture 39: Offset fixation detail 1
• Assemble the new spring on the offset.
• Assemble the offset and the spring on the squeegee.
• Mount the screws of the offset.
Picture 40: Offset fixation detail
