GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-53
Copyright © 2013, Diversey Inc.
05.68.50 brush drive - motor & motor belt - 455B_755B eco_755B power_855B power_V1.00.fm
5.9 Brush drive
5.9.8 Mounting of motor & motor belt
e

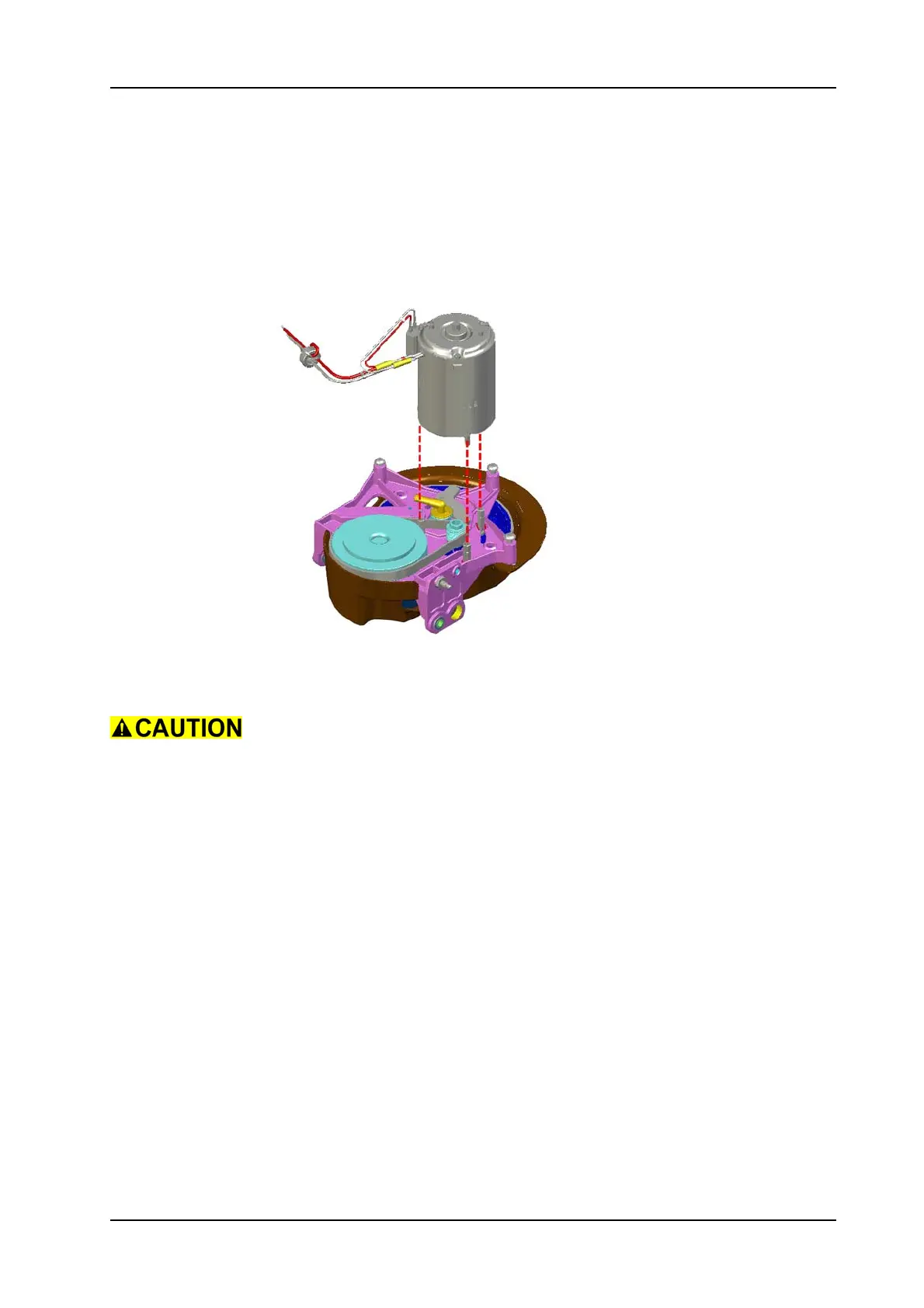

Picture 82: Brush motor belt mount
Position the new motor/new belt.
Take care that the belt is positioned correctly.
Insert the counter head screw.
Position the two other screws.
Service
Apply adhesive looking (09/138) on the screws (09/134).
Tension the belt.
Tighten all screws.
Complete assembling according to the chapter MOUNTING OF
PULLEY - NEW SETUP/OLD SETUP.
Complete assembling according to the chapter MOUNTING OF
BRUSH BELT - NEW SETUP/OLD SETUP.
Complete assembling according to the chapter MOUNTING OF
BRUSH DRIVE UNIT.
