GTS Technical Manual
5. March 2013 Edition: V1.10/2013 5-46
Copyright © 2013, Diversey Inc.
05.66.10 brush drive - brush drive unit - 455B_755B eco_755B power_855B power_V1.00.fm
5.9 Brush drive
5.9.2 Mounting of brush drive unit

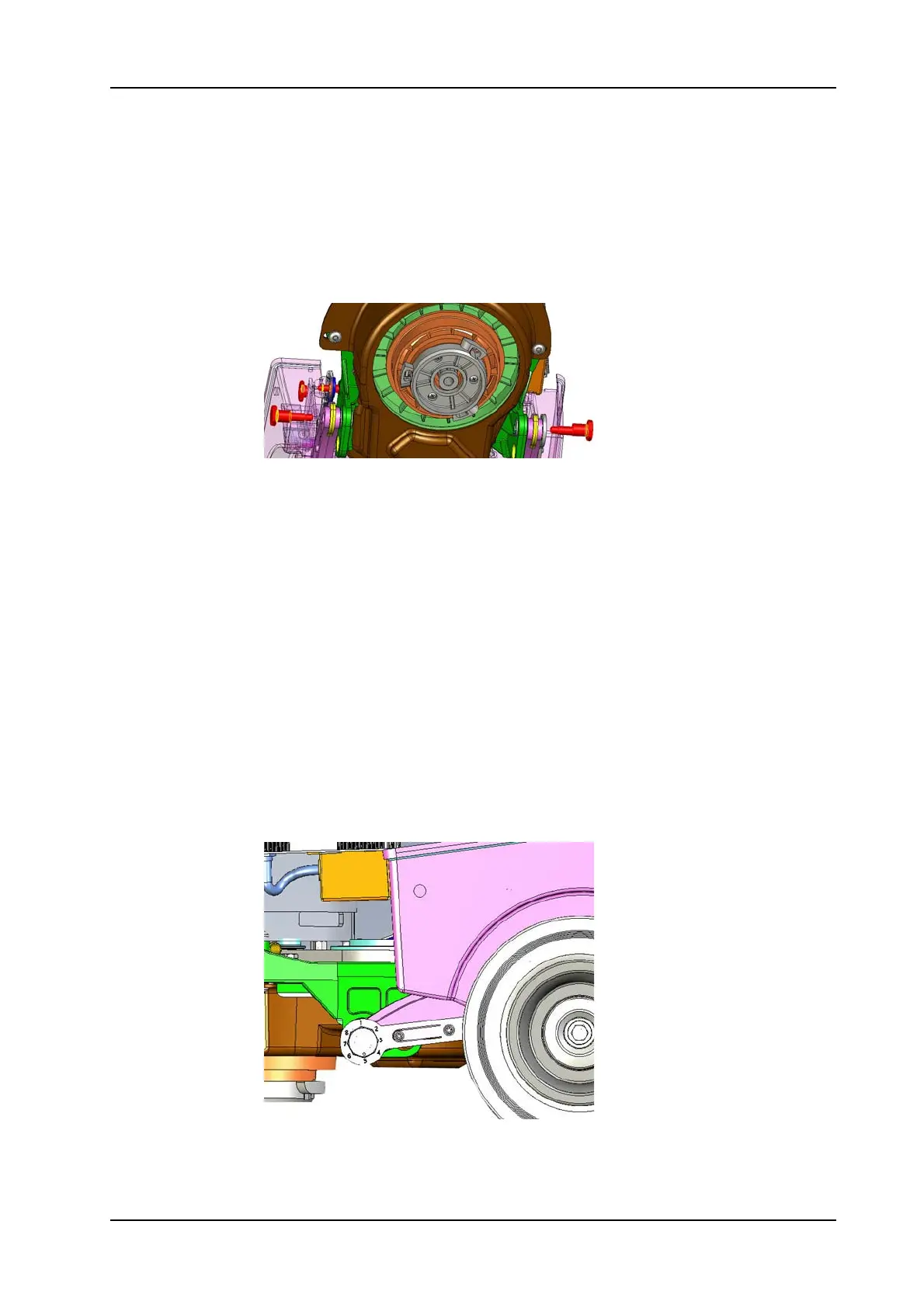

Picture 70: Brush drive mounting detail
Position the brush drive unit on the cradles.
Position the bolt and the eccentric shaft.
Position the eccentric disc.
Adjustment
Default setting (refer to spare parts catalogue):
Eccentric disc (455B:06/120, 755B:07/120): Position 4
Eccentric shaft (455B:06/110): Position 4
Eccentric shaft (755B:07/110): Position 5
Remarks
Based on data from the application department (Muenchwilen) the
default setting is as mentioned. Changing this setting will not bring
an improvement of the cleaning performance.
Picture 71: Brush drive setting LH
